Property Viewer
The Property Viewer, similar to Slide2, is accessed by selecting the Property Viewer icon on the toolbar (
).
It allows the user to visualize Cohesion, Phi, Pore Pressure, Residual Cohesion, Residual Friction Angle, Young's Modulus, Residual Young's Modulus, and Poisson's Ratio.
The options available are explained below:

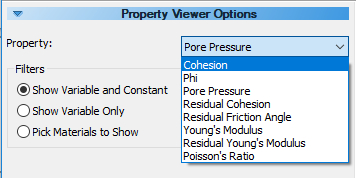

Property: Select property to view
Filters:
- Show Variable and Constant: view all contours
- Show Variable Only: only view contours of spatially variable materials, or linearly increasing ones
- Pick Materials to Show: select specific materials to view
Toolbar options:
The usual Display Options (
)are also found in the toolbar in the Property Viewer mode.
) allows the user to open a new instance of the property viewer for this model. This is particularly useful if you want to see two different properties at the same time (such as cohesion and phi) that are correlated. The views can then be tiled, and the Synchronize Property Viewers button (
) would allow you to cycle through samples of both instances at once, and check or uncheck options in the Property Viewer Options for both instances.
