Crown Pillar Stability Analysis
Free Trial
CPillar

CPillar

Crown Pillar Stability Analysis

Get quick and easy stability analysis of surface or underground crown pillars and laminated roof beds using three different limit equilibrium analysis methods: rigid plate, elastic plate, and Voussoir (no tension) plate analysis.

CPillar
CPillar

Crown Pillar Stability Analysis

Get quick and easy stability analysis of surface or underground crown pillars and laminated roof beds using three different limit equilibrium analysis methods: rigid plate, elastic plate, and Voussoir (no tension) plate analysis.

CPillar

Sensitivity & Probabilistic Analysis

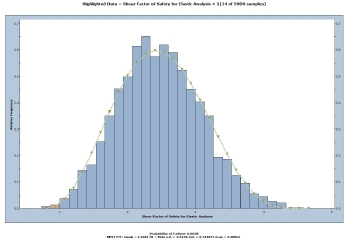

Perform probabilistic analysis to determine the probability of failure. Model variability in geometry, point of force application, joint and bedding strength, water pressure, external loads and more by assigning statistical distributions to variables. Perform sensitivity analysis using a range of values to evaluate the effects of changing model parameters on factor of safety.

CPillar

Sensitivity & Probabilistic Analysis

Perform probabilistic analysis to determine the probability of failure. Model variability in geometry, point of force application, joint and bedding strength, water pressure, external loads and more by assigning statistical distributions to variables. Perform sensitivity analysis using a range of values to evaluate the effects of changing model parameters on factor of safety.

Empirical Design Method

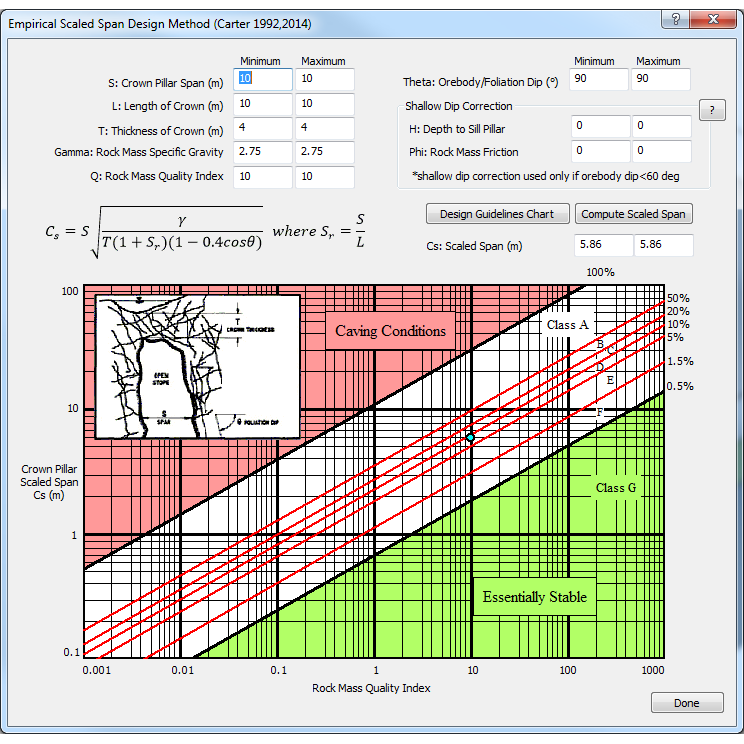

Originally developed for steeply dipping ore body geometries, by estimating crown geometry and assessing the stope geometry as steep or shallow, you can apply the most appropriate empirical relationships to your model.

CPillar
CPillar

Empirical Design Method

Originally developed for steeply dipping ore body geometries, by estimating crown geometry and assessing the stope geometry as steep or shallow, you can apply the most appropriate empirical relationships to your model.

Price List

See all features in CPillar

Check out the full list of technical features in CPillar.

See Full Specs
Spec List Spec List
CPillar across Applications
  • Mining
  • Excavations
  • Roof Pillars

Assess the risk of crown pillar failures using probabilistic analysis, as part of underground mine closure planning and decommissioning.

CPillar Mining Applications

Analyze the stability of surface crown pillars under gravitational loading, while taking into account shear strength, lateral stress, and water pressure effects acting at the abutments.

CPillar for Excavations

Determine the maximum roof span using Rigid, Voussoir, Elastic, or Empirical methods.

Cpillar for Roof Pillar Applications
Explore the latest features in CPillar
  • Polygonal Pillar Geometry

    Conduct Rigid Analysis (plug failure) on custom polygonal-shaped pillars of uniform thickness with optional non-vertical pillar abutments.

  • Locked-In Stress

    Define locked-in stress, and principle lateral stresses to model in-situ stress conditions. Locked in stress option is available when using Gravity lateral stress type to set the lateral stress at the pillar surface to a non-zero value.

  • New Plate Bending Analysis Formulation for Elastic Analysis

    Analyze two-way plate bending of rectangular plates with clamped-edge boundary conditions, following the method from Theory of Plates and Shells (Timoshenko, 1969). Considers Elastic Buckling failure mode due to bending, and factored shear failure along the abutments.

Polygonal Geometry CPillar
Locked-In Stress CPIllar Image
Bending Analysis CPillar
Polygonal Geometry CPillar
Polygonal Pillar Geometry

Conduct Rigid Analysis (plug failure) on custom polygonal-shaped pillars of uniform thickness with optional non-vertical pillar abutments.

Locked-In Stress CPIllar Image
Locked-In Stress

Define locked-in stress, and principle lateral stresses to model in-situ stress conditions. Locked in stress option is available when using Gravity lateral stress type to set the lateral stress at the pillar surface to a non-zero value.

Bending Analysis CPillar
New Plate Bending Analysis Formulation for Elastic Analysis

Analyze two-way plate bending of rectangular plates with clamped-edge boundary conditions, following the method from Theory of Plates and Shells (Timoshenko, 1969). Considers Elastic Buckling failure mode due to bending, and factored shear failure along the abutments.
