General
VolumeCalculator reads files exclusively in “.jm3x” file format. Models from previous versions in “.jm3” file format are not supported in the present version. Please note that “.jm3” files from previous versions can converted into a “.jm3x” file via the ModelEditor. See corresponding user manual for further information.
User interface
The user interface of the VolumeCalculator (see below) comprises the menu bar, toolbars, the view options and the 3D viewer.

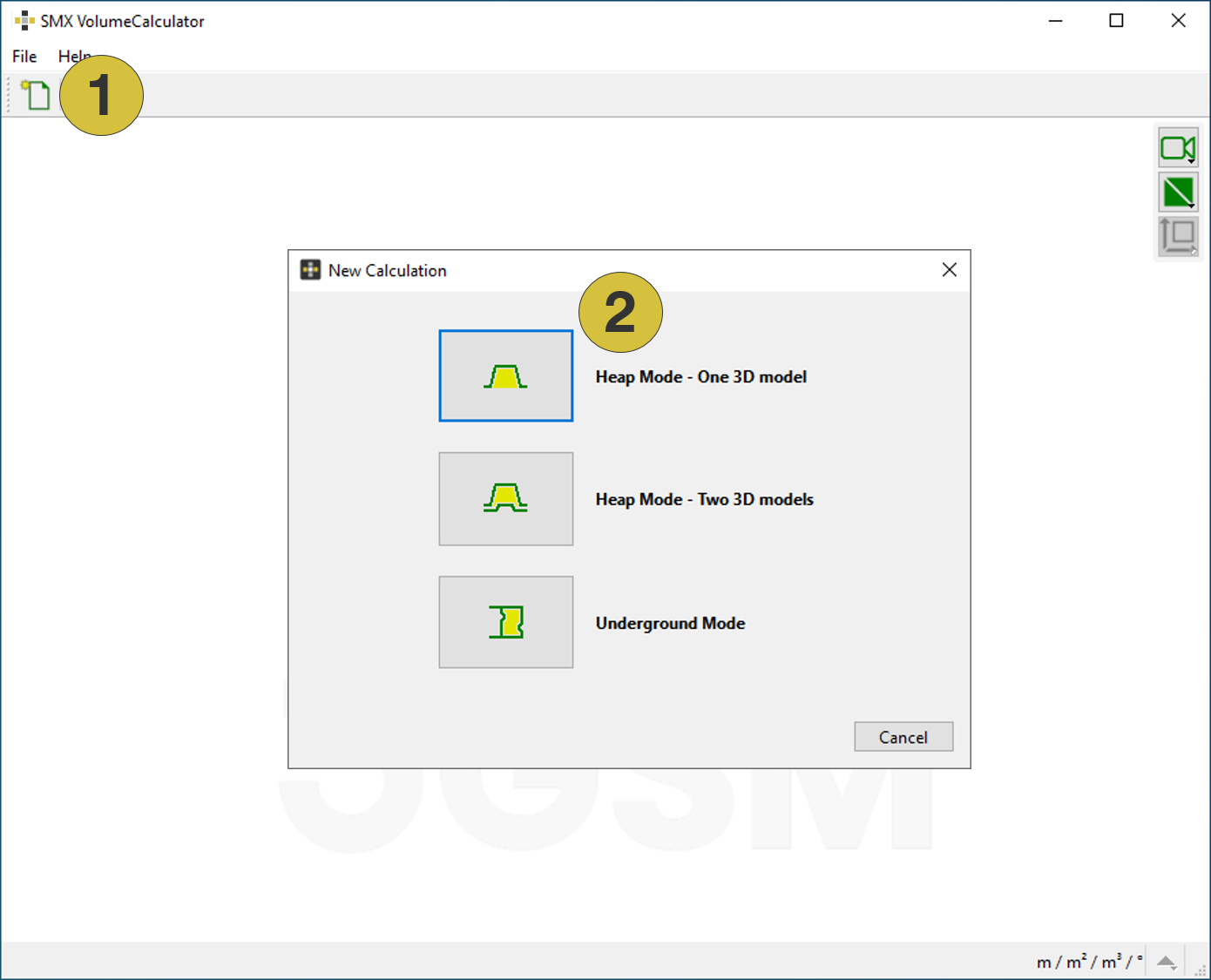

- New Calculation
- Modes
- Menu bar
- Toolbar
- 3D viewer
- Tools pane
- View options

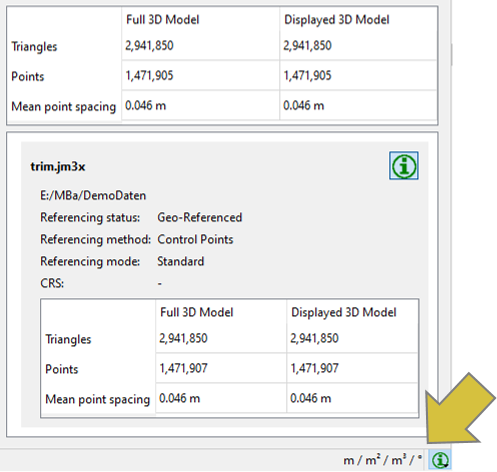

The unit of measurement is displayed on the right bottom of the user interface. The foldable dialog next to it displays information on the 3D model, i.e. geometry reproduction on the screen (adjustable via the Central Window; see corresponding user manual) and information on referencing and scaling.
