Water
The Occurrences tab comprises the Option dialog which features to define a default water size (default radius).
Water
The Water annotation allows one to map water occurrence on the 3D model by a blue sphere indicator. Standard operating procedure:
- Click on the “Water”
icon in the toolbar of the Occurrences tab or use the shortcut key “W” - Mark the Water occurrence with a left button mouse click. Clicking on a different location resets the position
- Finish the Water annotation and continue the mapping by pressing the “Space” key or finish the Water annotation by clicking “Enter” or by clicking the “Water” icon. The position is provided instantly in an individual list in the Occurrences tab.
Edit the Water annotation by a double click with the right mouse button on the item and set a new position of the Water annotation by clicking the left mouse button.

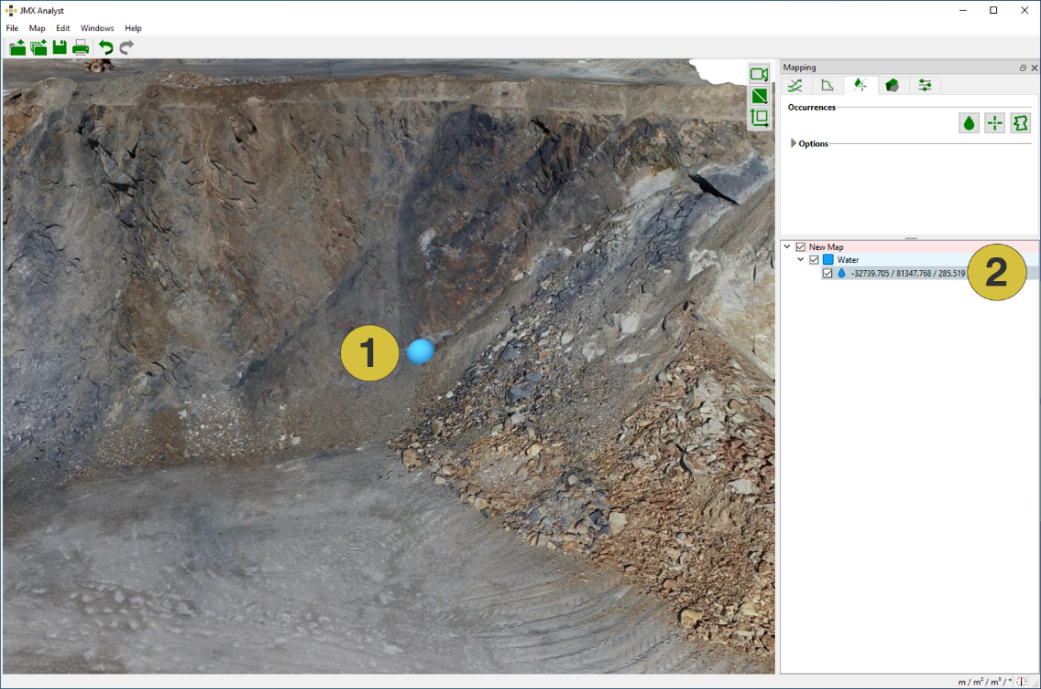

- Water annotation
- Position of the Water occurrence

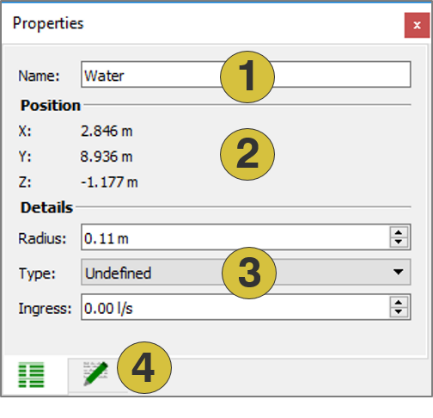

The figure below shows the Properties pane for the Water annotation. The pane is activated in the context menu with “Show Properties” or by a click on “Windows | Properties” in the menu bar. It comprises the name of the Water annotation values for the co-ordinates of the position. The name of the Water annotation can be edited in order to use an intuitive name or for more detailed descriptions. The radius of the Water sphere is editable. A Default size of the water annotations can be defined in “Options” of the Occurrences tab. In addition the type i.e. undefined, wet spot or spring, and the ingress in [l/s] can be defined. Customized notes can be added to individual Measuring Points in the Notes
tab.
- Name of Water annotation (editable)
- Position
- Properties (radius, type, ingress: editable)
- Notes (editable)
Context menu
- Edit
Move the occurrence by clicking the left mouse button - Active
Activates (shows) and deactivates (hides) the selected item - Look at
Centers the occurrence in the 3D viewer - Look at and Zoom
Centers and zoom the occurrence in the 3D viewer - Delete
Deletes the selected Water annotation - Show Properties
Opens the Properties pane for Water annotations - Export
- Export as DXF - Exports the measurement as ”.dxf” file
- Export as VRML - Exports the measurement as ”.vrml” file
