Define Support

To define support properties:

  1. Select the Loading & Support Loading and Support Tab workflow tab.
  2. Select Define Support Edit Support Icon from the toolbar or the Support menu.
  3. By default one support type is initially defined, you can add / delete / copy support types using the buttons at the bottom of the support type list. Any number of support types can be defined.

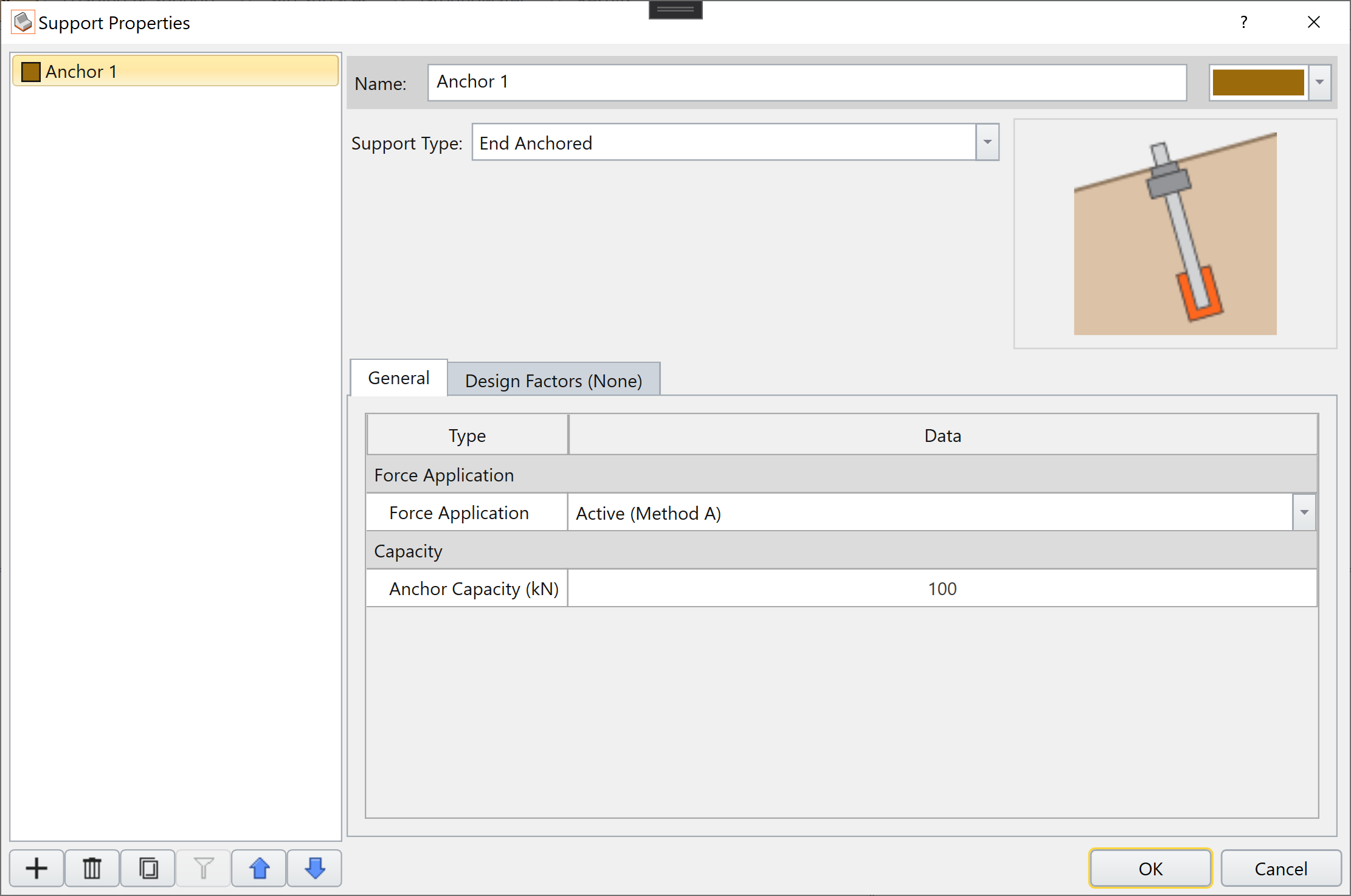

  4. For each support type, enter a name and colour, choose the Support Type and enter the support properties.
  5. For details about the different support types which can be modeled in Slide3, see the following topics.

For each support types, there are common types available for the supports. Refer to common support types for more information.

To allow maximum flexibility in defining support properties, if the pre-defined support types are not adequate for defining the behavior of a particular support system, you can create a user-defined support type. See the User Defined Support topic for details.

NOTE: for a general overview of the support implementation in Slide3, see the Overview of Support Implementation topic.
