The Units of Measurement for Slide3 models are specified on the Units page of the Project Settings dialog.

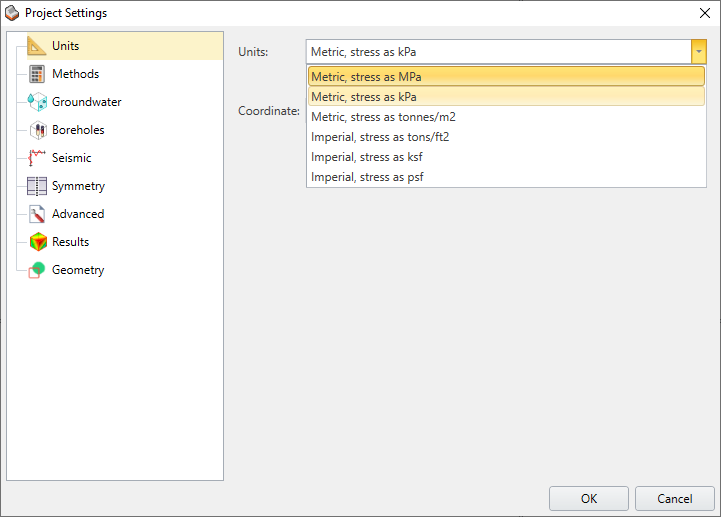

project settings dialog units tab

You may choose Metric or Imperial units, and the selection of Stress Units determines the units of length, force, stress and unit weight, for all program input and output as summarized below.

UnitsLength, Force, Stress, Unit Weight
Metric, stress as MPameters, MN, MPa, MN/m3
Metric, stress as kPameters, kN, kPa, kN/m3
Metric, stress as tonnes/m2meters, tonnes, tonnes/m2, tonnes/m3
Imperial, stress as tons/ft2feet, short tons (2000 lbs), tons/ft2, tons/ft3
Imperial, stress as ksffeet, kips, ksf, kips/ft3
Imperial, stress as psffeet, lbs, psf, lbs/ft3

The Units should always be chosen at the start of modelling since all program input is determined by the Units setting.

If you change the Units after you start modelling, you will receive a warning message that existing values will be converted to new Units. In general, this is not recommended and may lead to errors during unit conversion.
