Add Surface Safety Map

The safety map feature shows the contour plot of all slip surfaces on the model. It allows users to locate multiple weak zones (surface failure) with legend showing factor of safety. It can be plotted on surface of the model or on cutting plane through the model. The contour option of the safety map can be modified by selecting custom range in contour option setting.

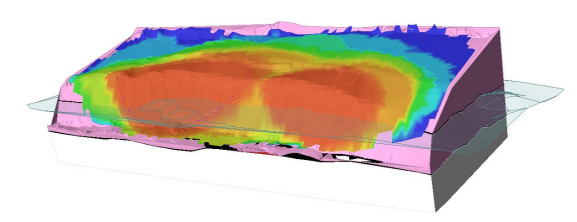

Safety Map Contour Plot Model View
Display of safety map contour plot on the model with slip surfaces found using GLE analysis method
