Viewports

The Viewports are the main modelling and results viewing screens in Slide3.

  • Three viewports show the model in orthogonal XY, ZX and YZ views (top/front/right).
  • The fourth viewport is the 3D perspective view.

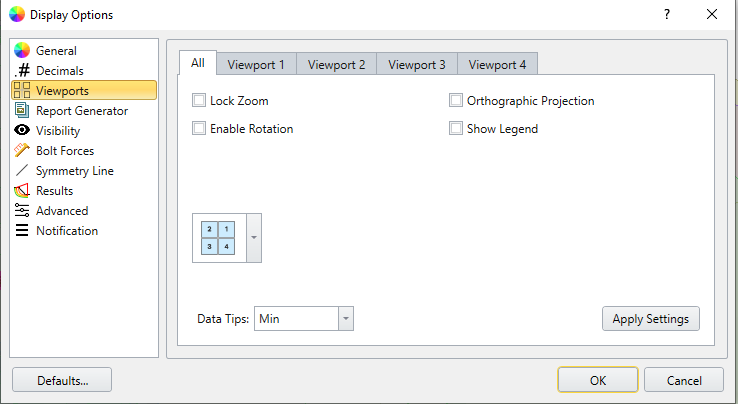

The Split View (showing only two viewports) is the default viewport configuration. This can be customized in the Viewports tab of the Display Options dialog.

    viewport_option


    To change the default setting:

    1. Select Defaults > Make current settings default.

      Selecting the Viewport Layout

      The viewport layout of a project can be changed by selecting an option from the dropdown menu at the top right of the document view. There are four views available: the Split View, the 2x2 View, and the 3 Stacked View.

      viewport1


      Split View

      The Split View has only two viewports, one perspective and one orthographic, both with rotation enabled. This is the viewport configuration when viewing Block Information. Block Information can be viewed after Compute Blocks and Compute Kinematics by selecting Interpret > Block Information from the menu or selecting Block Information in the toolbar.

      Split view

      2x2 View

      The 2x2 View consists of three fixed orthographic views, and one projection view on the top right.

      2x2 view

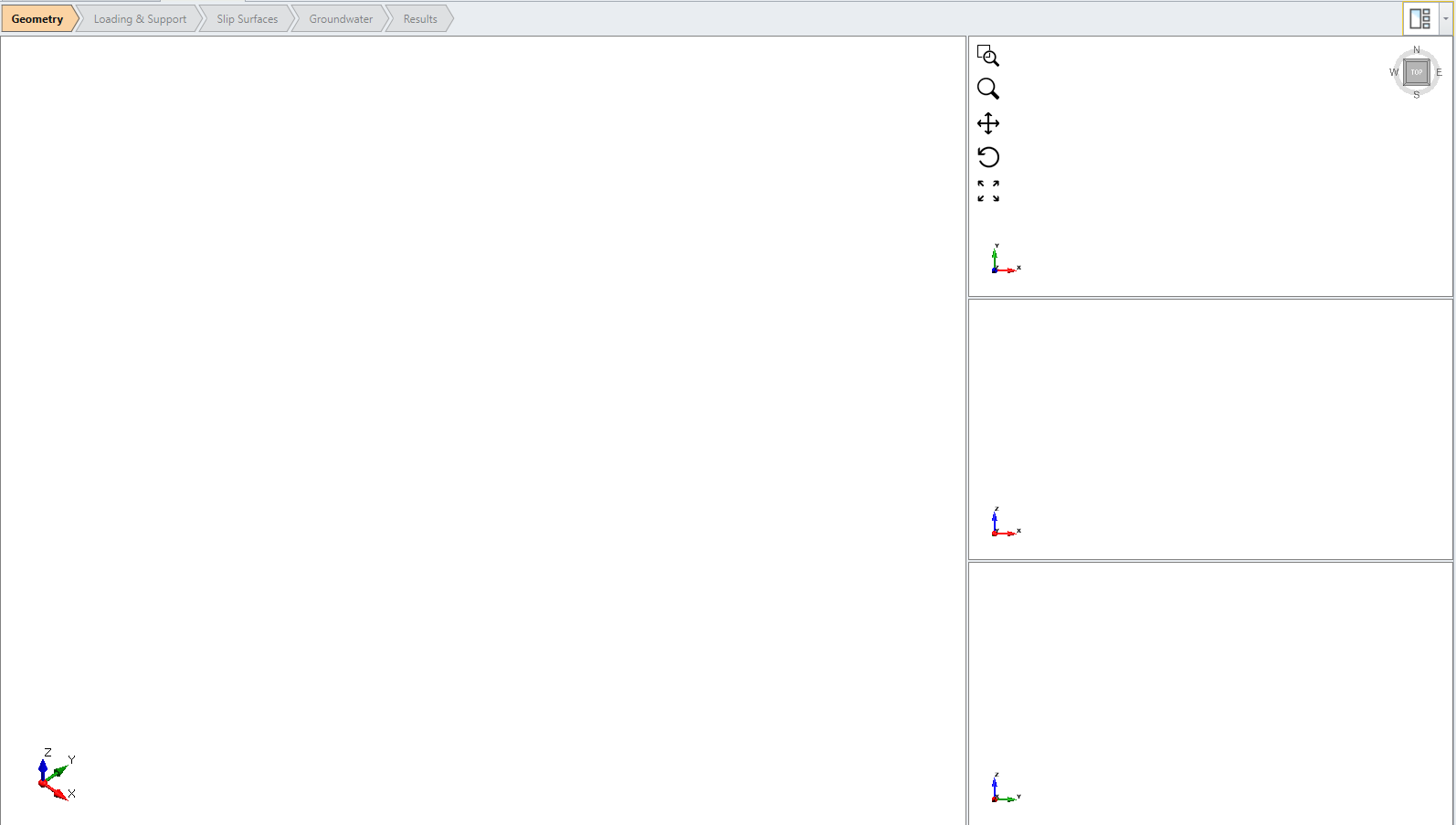

      3 Stack View

      The initial configuration of this view has the three stacked panels displaying fixed orthographic views of the model, with the large viewport displaying a perspective view

      3 stacked view

      Modelling

      Modelling options which require 3-dimensional input or selection can be carried out in any of the viewports depending on the viewing angle you desire. This includes:

      • Adding/Editing Geometry
      • Adding/Editing Support
      • Adding/Editing Loads

      Many modelling options are available through right-click shortcuts in the viewports. The available right-click options depend on the currently selected workflow tab. It is recommended that the user experiment to see which modelling options are available for each workflow mode.

      Analysis Results

      Analysis results displayed in the viewports include:

        Viewing and Display Options

        A wide variety of viewing and display functions are available within the viewports including:
