Stress-Strain Plots

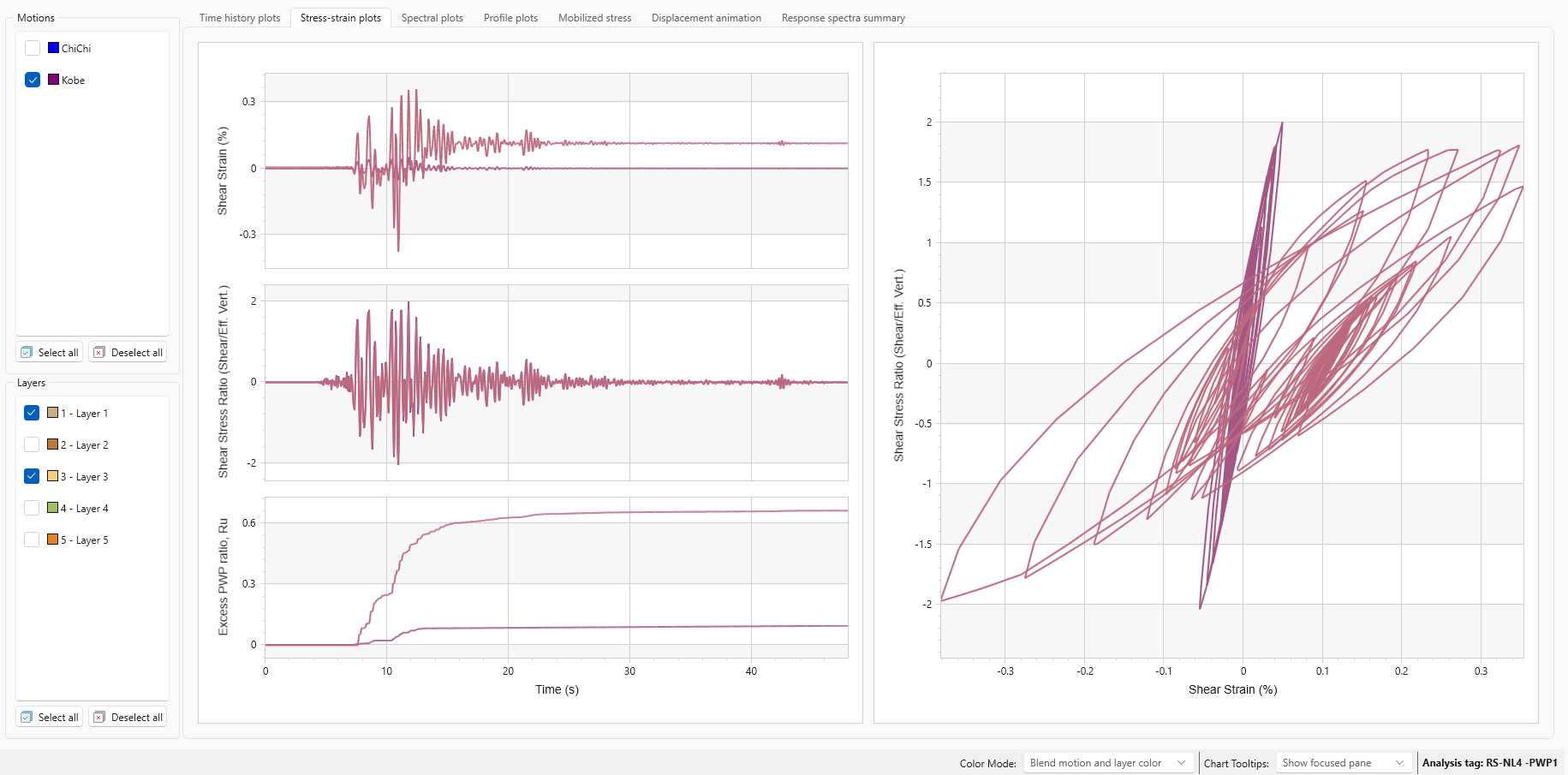

In the Stress-Strain Plots tab, the user can see the following plots:

• Shear Strain
• Shear Stress Ratio
• Excess PWP (if applicable)
• Strain Stress Ratio

Using the checkboxes on the left of the screen, the user can select the Motions and Layers to be displayed.

The color of the layer and motion plots can be adjusted for easier viewing using the Color Mode drop down in the bottom left of the screen.

To export these charts and their data as an excel file, use the Chart in Excel option in the toolbar.
