AGS Data Entry

Creating an AGS Project

To create an AGS project, follows these steps:

• Go to the left-hand navigation menu and select Projects List,
• When the list of projects loads, click + New button to create a project,
• In the new dialog box, select Project Type: AGS,
• Enter project information including Coordinate Reference System,
• Click Save.

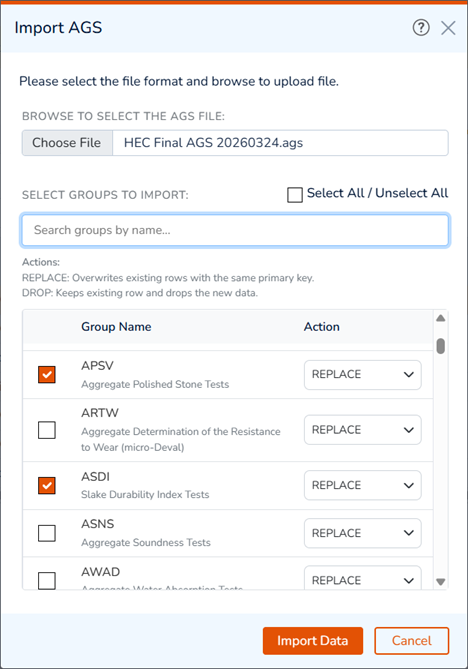

Importing AGS File

Data entry can be done by switching to a group (from the tabs at the top of the page) and starting to add records from scratch. You can also import multiple AGS files using the AGS Data Exchange button (at the top-right of the page) and selecting the Import AGS File option. This will upload the AGS file and processes data, then placing them in the relevant group (tab).

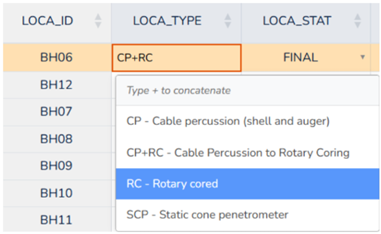

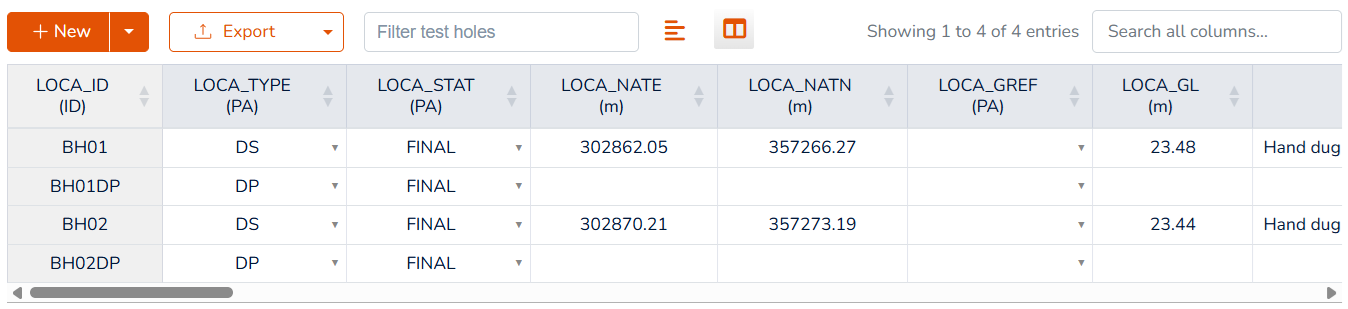

AGS Editor

[text]

Borehole Coordinates

RSLog applies project Coordinate Reference System to all boreholes.

• If All boreholes have values for LOCA_LAT and LOCA_LON, then set the project coordinate system to Geographic.
• If All boreholes have values for LOCA_NATE and LOCA_NATN:
  • if LOCA_GREF has a value, then the project coordinate system should be is set to Projected with its associated ESPG code.
  • If LOCA_GREF is not set, set the project coordinate system to UTM.

Exporting to AGS

To export project data, from the AGS Data Exchange button (at the top-right of the page) and selecting the Export AGS File option.
