Photos

Photos can be uploaded for project (general purpose) or for any data entity under a test hole (e.g. sample, drill run, etc). The 'featured' photos can be added to the test hole log, while a collection of selected photos can be added to a Photo Report.

Upload Photos

There are different ways to upload your photos to your RSLog account:

On the Photos Page

This page is accessed by going to the left-hand navigation menu and selecting Photos. To upload a photo, click Upload button.

On Specific Data Entry Page

For a Project: go to the left-hand navigation menu and select Projects List, then create / edit a project. On the dialog box that opens, click +Photo button in the footer of the page. Project photos typically cover pictures of the project site, excavation, subgrade review, pile installation etc.

For a Test Hole: to upload photos under a test hole, go to the left-hand navigation menu and select Test Holes. On this page, find the desired borehole from the list and click Edit button at the far right of that row. When test hole data is loaded, navigate to the Photos tab then click Upload button.

For a Data Entity Under a Test Hole: while on test hole edit page, switch to the specific tab e.g. Samples tab, Field Tests tab, etc. Then create / edit a record under that tab and click + Photo button in the footer of the dialog box (of + button on the Photos column in the table) to start uploading or previewing photos.

Photo Upload Page

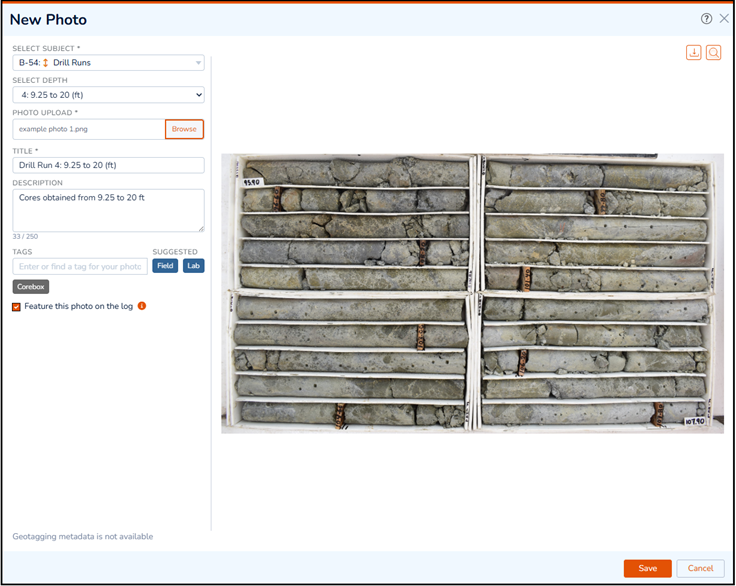

The photo upload page comprises a data entry panel (on the left) and a preview of the photo (on the right):

The 'subject' refers to the data entity to which the photo is assigned (e.g. test hole, sample, field test, drill run etc.). Once the subject is selected, the Select Depth dropdown populates with the list of existing records.

Photo Gallery

text

Featured Photos

text

Adding Photos to Log

text

Generating a Photo Report

text
