One Range Pole Mode with Reference Line

The One Range Pole Mode with Reference Line requires the following parameters:

• Upper Target
• Lower Target
• Distance between the targets
• Start point of Reference Line
• End point of Reference Line
• Azimuth of the Reference Line
• Surveyed Ground Control Point (optional)

Standard operating procedure

1. Follow the procedure described in One Range Pole Mode, and define the position of the Upper and Lower Target.
2. Activate Reference Line in the list and define the Start end the End Point in the same manner as done for the Upper and Lower Target.
3. Enter the azimuth between the in the corresponding “Reference Line” field.
4. Optionally, Activate GCP in the list and define the position as done before.
5. Enter Easting, Northing and Height the in the corresponding “Ground Control Point” field.
6. Enable referencing by clicking the “Save”  button.
7. Choose an action form the pull down menu “Referencing”  or close the MultiPhoto by clicking the “Exit”  button.

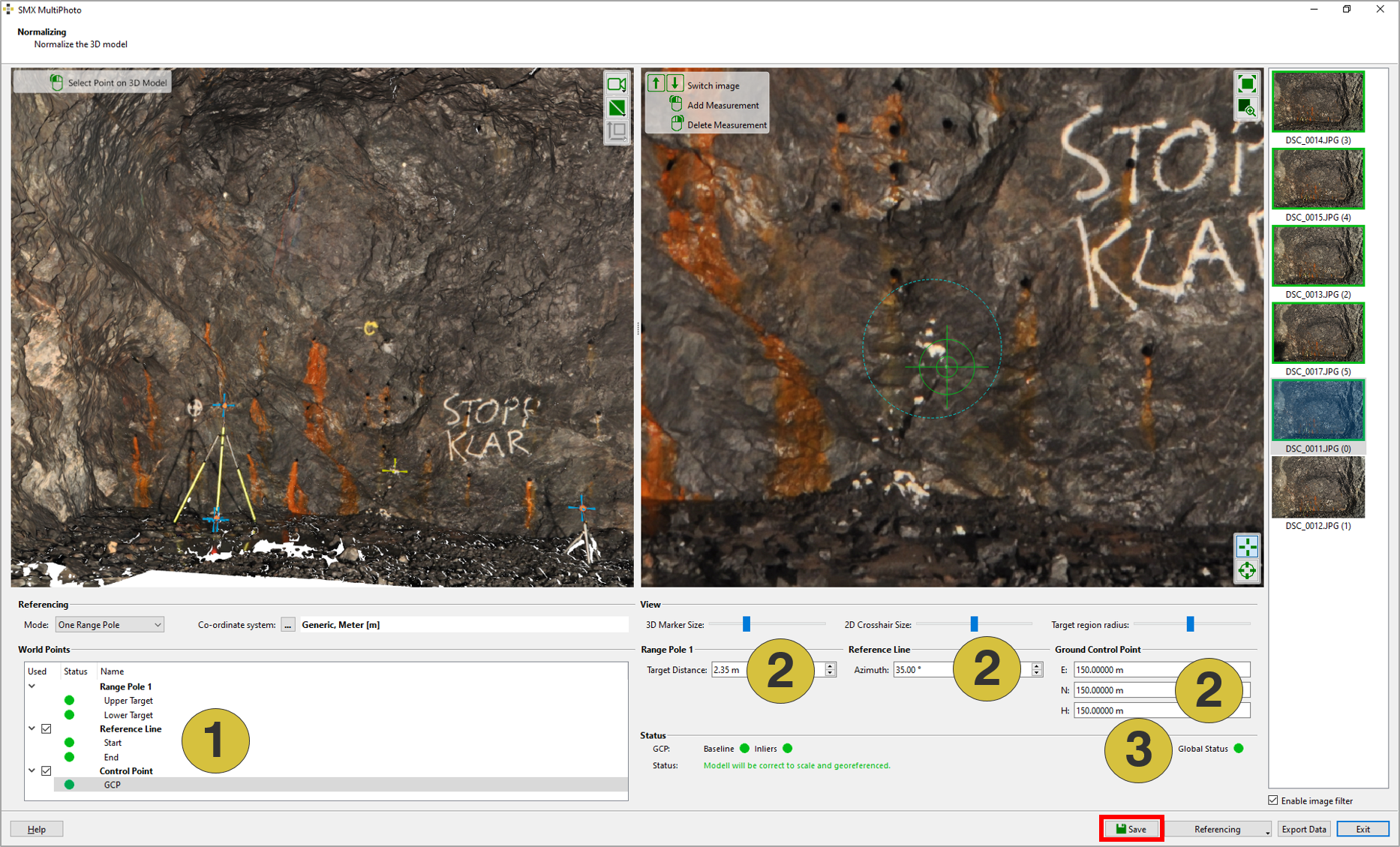

1. Defined points
2. Parameters for scaling and referencing
3. Global Status
