General Settings

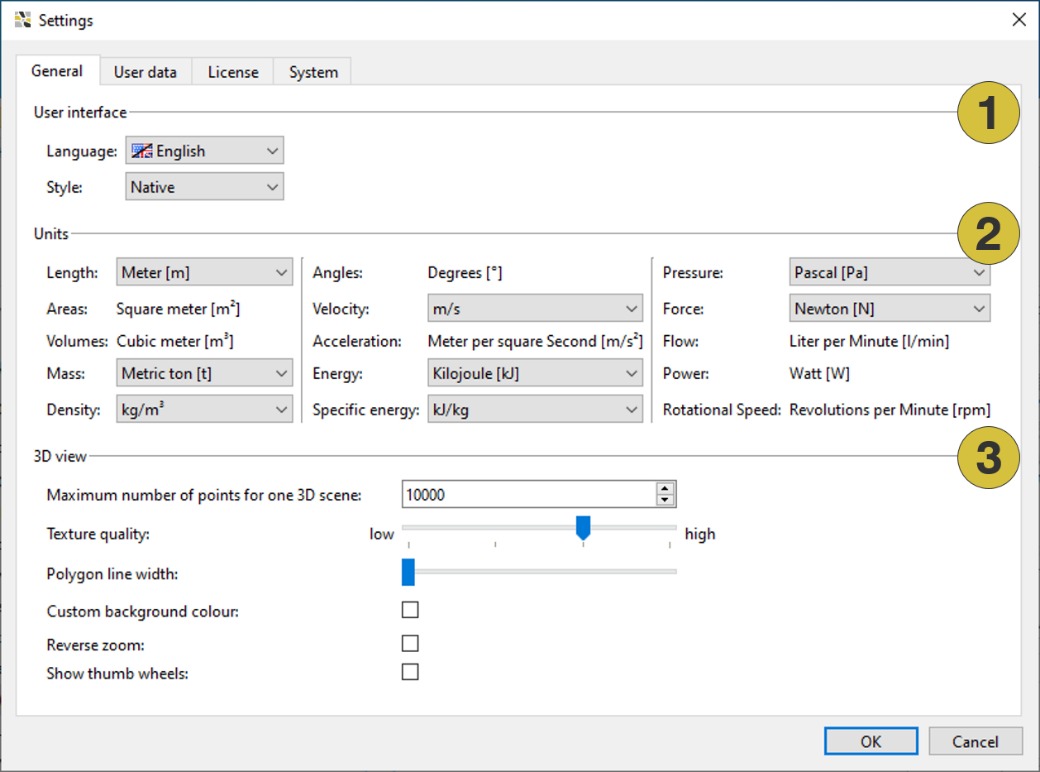

The General sheet shown below allows the user to customize general settings like the operating system language, units and 3D view options.

1. User interface
2. Units
3. 3D view

User interface

• Language
  Available languages are English, German and (partly) Russian
• Style
  Native or dark style mode

Units

• Length
  Available units are millimetre [mm], meter [m], inch [in], international foot [ft (int)], and US survey foot [ft (us)]
• Areas
  Available units are square millimetre [ mm² ], square meter [ m² ], square inch [sq. in], square foot international [sq. ft (int)] and square foot US survey [sq. ft (us)]
• Volumes
  Available units are cubic millimetre [ mm³ ], cubic meter [ m³ ], cubic inch [cu. in] and cubic yard [cu. yd]
• Mass
  Available units are kilogram [kg], pound [lb], metric ton [t], short ton [tn. s] and long ton [tn. l]
• Density
  Available units are kilogram per cubic meter [ kg/m³ ], metric ton per cubic yard [t/cu. yd], short ton per cubic yard [tn. sh./cu. yd], and long ton per cubic yard [tn. l./cu. yd]
• Angles
  Unit is degree [°]
• Velocity: Available units are meter per second [m/s], meter per minute [m/min], millimetre per second [mm/s], millimetre per minute [mm/min], inch per second [in/s], inch per minute [in/min], foot per second [tf/s] and foot per minute [ft/min]
• Acceleration: Unit is meter per square second [m/s²]
• Energy: Available units are kilojoule [kJ], and megajoule [MJ]
• Specific energy: Available units are kilojoule per [kJ/kilogram], and megajoule per kilogram [MJ/kilogram]
• Pressure: Available units are pascal [Pa], bar [bar], psi [psi]
• Force: Available units are newton [N], kilonewton [kN]
• Flow: Unit is liter per minute [l/min]
• Power: Unit is watt [W]
• Rotational Speed: Unit is revolutions per minute [rpm]
  984. tn.l.

Table 1: Conversion of units.  Note, 1 International Foot equals 0.999998 US Survey Foot.

Meter	Millimetre	Inches	Int. Foot	US Survey Foot
1 m =	1000 mm	39.37 in	3.28 ft (int)	3.28 ft (us)
1 m2 =	1,000,000 mm2	1,550.00 in2	10.76 ft2 (int)	10.76 ft2 (us)
1 m3 =	1,000,000,000 mm3	61,023.38 in3	35,32 ft3 (int)	35,32 ft3 (us)
Kilogram	Pound	Metric Ton	Short Ton	Long Ton
1 kg =	2.204620 lb	0.001000 t	0.001102 tn. sh.

3D view

• Maximum number of points for one 3D scene
  Defines the number of displayed points building up the 3D scene. If the interactive motion of the 3D image is not smooth, a reduction of displayed 3D points helps.  The more points are used, the more precise is the displayed 3D image. Important note: Measurements are always taken in the full set of 3D points.
• Geometry quality
  Changes the geometry  reproduction on the screen from low to high.  Valid for all software components with 3D viewer.
• Texture quality
  Changes the texture reproduction on the screen from low to high. Valid for all software components with 3D viewer.
• Polygon line width
  The line width of polygons is set by moving the slider (e.g. Annotations like Traces, Areas, etc. in the Analyst)
• Custom background colour
  Enabling the checkbox allows the user to change the background colour of the 3D viewer
• Reverse zoom
  Changes the zoom direction when scrolling the mouse
• Show thumb wheels
  Shows/Hides thumb wheels in the 3D viewer that can be used for rotation and zooming
