Rotate Zone

To rotate a Rectangular zone:

1. Right-click on a zone and select Rotate Zone

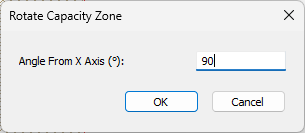

2. The Rotate Capacity Zone dialog will appear. Enter the Angle from X Axis (degree).

3. Click OK. The zone will be rotated as specified.
4. If the zone is no longer centered in the Plan View, right click anywhere in the Plan View and select Zoom All

If the position of the zone needs to be adjusted further, the user can use the Move Zone option.
