Connectivity

The Connectivity tab is used to define the pile-head connections to the cap.

The orientation of each pile in the group is defined in the Piles tab.

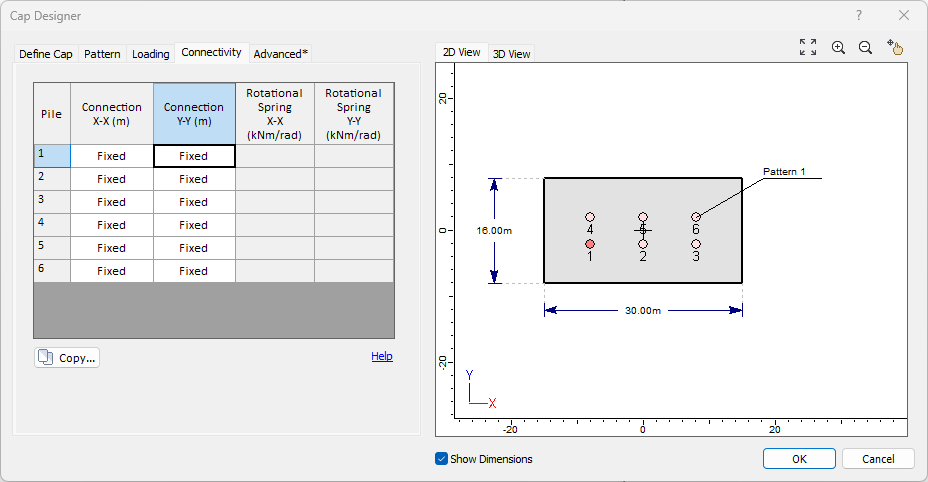

Cap Designer Dialog - Connectivity Tab
Connectivity tab of Cap Designer

CONNECTIVITY

The following three pile-cap connection types are available:

  • Pinned - rotation is allowed, translation is restrained.
  • Fixed - all movement is restrained.
  • Restrained - translation is restrained, and a rotational spring value stiffness must be entered.
