Normal Statistical Distribution

The Normal (or Gaussian) distribution is the most common type of probability density function (PDF) and is generally used for probabilistic studies in geotechnical engineering. Unless there is a good reason to use one of the other PDFs available in UnWedge, it is recommended that the user choose the Normal PDF.

For a Normal distribution, about 68% of observations should fall within one standard deviation of the mean, and about 95% of observations should fall within two standard deviations of the mean.

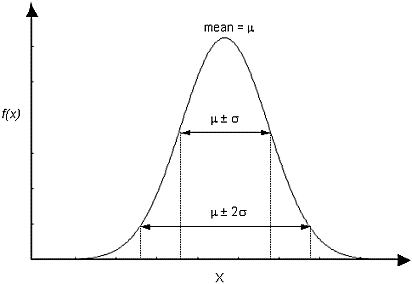

Normal probability density function, showing standard deviation ranges

Truncated Normal Distribution

A truncated Normal distribution can be defined by setting the desired minimum and/or maximum values for the variable. For practical purposes, if the minimum and maximum values are at least 3 standard deviations away from the mean, you will obtain a complete normal distribution. If the minimum/maximum values are less than 3 standard deviations away from the mean, the distribution will be visibly truncated.

Estimating a Standard Deviation

For a Normal distribution, 99.73 % of all samples, will fall within 3 Standard Deviations of the mean value. This fact leads to the following rule of thumb (the "Three Sigma Rule"), which allows you to estimate a standard deviation for a normally distributed random variable.

Estimate the highest conceivable value (HCV) of the random variable, and the lowest conceivable value (LCV), and divide the difference between them by six:

The resulting value can be taken as the Standard Deviation of the Normally Distributed random variable. This is useful if actual data is not available. This and other methods of estimating standard deviation are discussed in (Duncan, 2000).
