Freehand Manipulation

You can translate or rotate a geometry graphically using the mouse as follows:

  1. Select the Geometry Geometry workflow tab.
  2. Select any number of geometry entities.

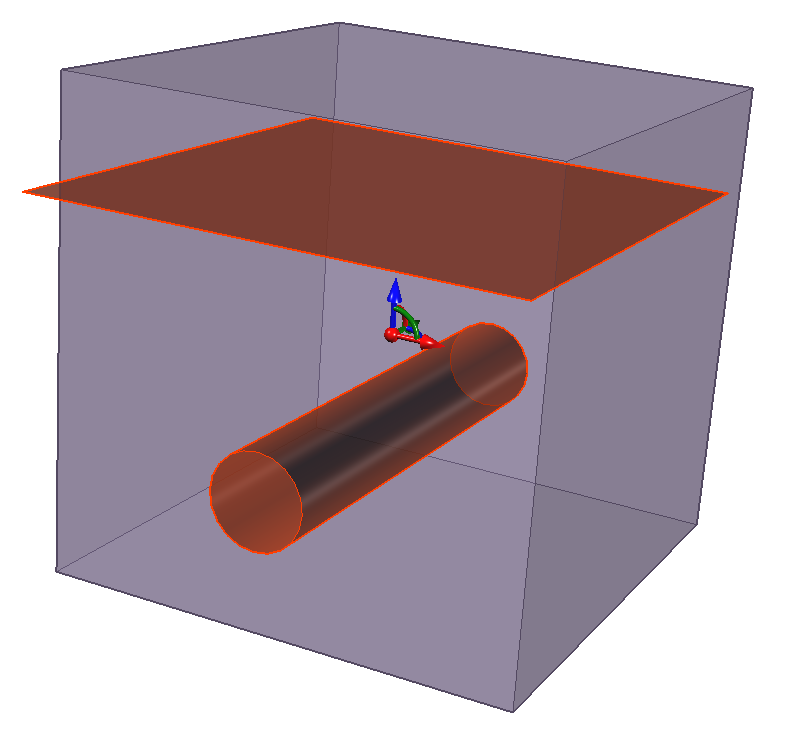

  3. Select the Freehand Manipulation Freehand manipulation tool option from the toolbar or the Transform sub-menu in the Geometry menu. The selected entities should be highlighted and the Freehand Manipulation icon should appear near the center of your entities with translation and rotation arrows as shown below.
  4. Freehand manipulation
  5. Hover over any arrow in the icon. Once it is highlighted, you can drag your mouse in the arrow direction to apply a translation to the entities. You can also apply a translation by selecting the ball in the icon and dragging your mouse. You can also hover over any curved line to apply a rotation about the respective axis.
