Export Slope with Failed Unit Blocks Removed

The Export Slope with Failed Unit Blocks Removed option allows you to export the geometry of the socketed slope to one of several geometry formats (which can then be imported into 3D Rocscience software such as Slide3 or RS3).

To export the socketed slope with failed unit blocks removed:

1. Select File > Export > Export Slope with Failed Unit Blocks Removed
2. In the Export Slope with Failed Unit Blocks Removed dialog:

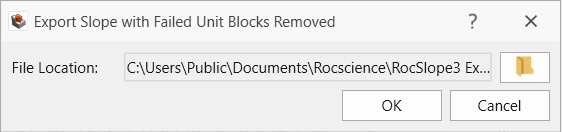

1. Select the File Location. In the Save As dialog, set the file name and select Save.

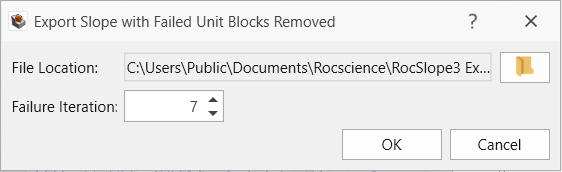

2. If Successive Failure is turned on in the Analysis tab of Project Settings, then the dialog allows you to set the Failure Iteration Number. This allows you to specify which blocks to remove relative to their failure step. For example, if Failure Iteration is set to 3, then all blocks with a Failure Iteration between 1 (key blocks) and 3 are removed from the slope geometry.
3. Select OK to save the geometry.
