Setting Grid Options

A grid is provided in RocFall to assist with the graphical entry of the slope as well as of barriers and collectors. If the Snap option is toggled on, the grid intersections can be "snapped" to. This is also useful when adding the slope, barriers, berms, and collectors.

To toggle visibility of the Grid on and off:

  • Click GRID in the status bar.

To change the Grid properties in the Grid Options dialog:

  • Select Grid Grid icon on the View menu, or
  • Right-click on GRID in the status bar.

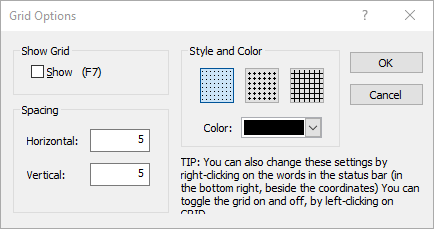

Grid Options dialog
