Convex Hull

Convex Hull Convex Hull icon creates a surface that envelopes the selected geometries, e.g. a bubble that encloses all selected surfaces/lines/points. This can be used to recreate simplified stopes or ore bodies that were stored as unstructured triangle soups

To use convex hull, select: Geometry > Surface Triangulation Tools > Convex Hull.

This is one of the examples where convex hull can be applied:

examples where convex hull can be applied

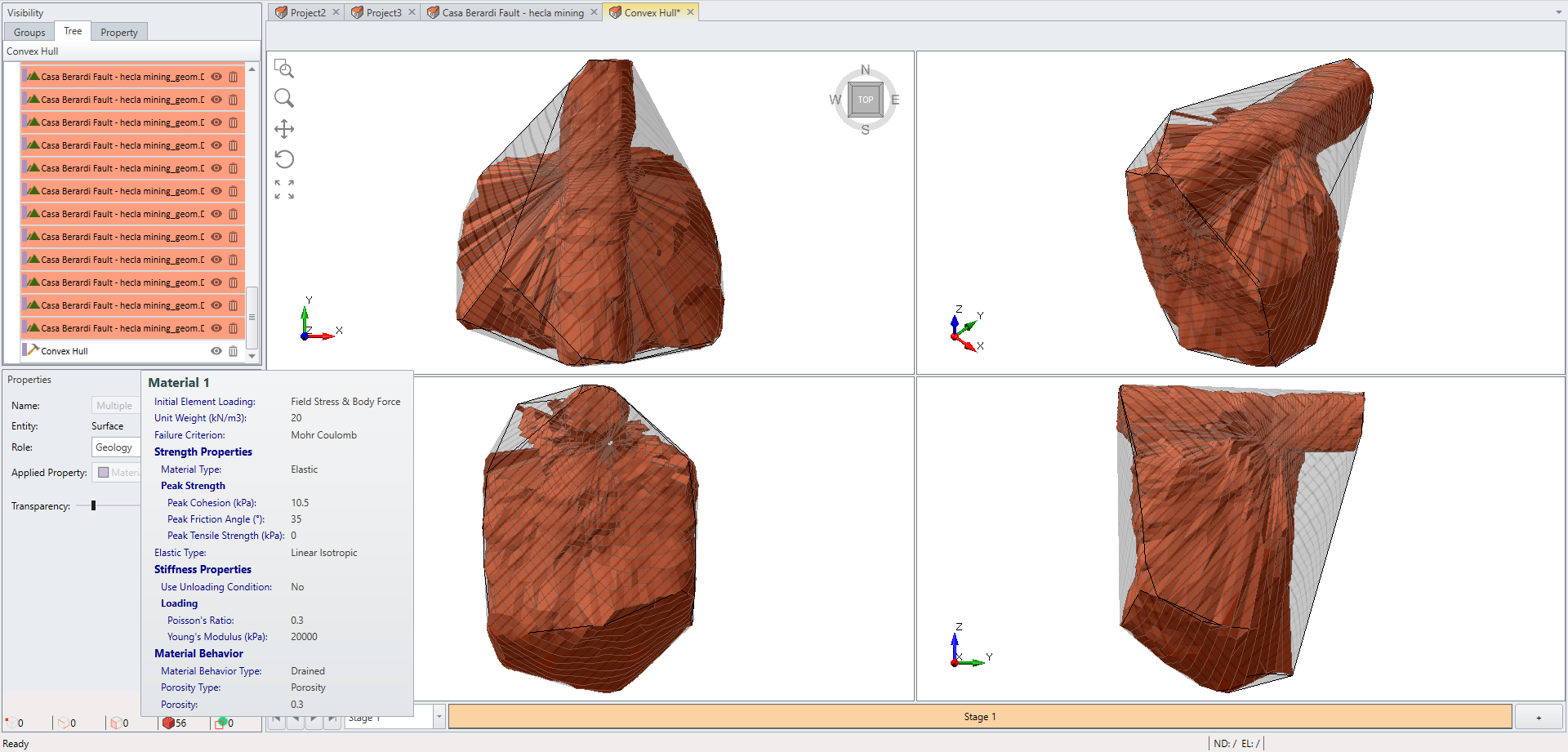

Select all entities and use Convex Hull and it creates an envelop surrounding the original ore body:

Select all entities and use Convex Hull and it creates an envelop surrounding the original ore body
