Joint Slope Stability Analysis Using SSR

1.0 Introduction

This tutorial introduces how to add a joint surface onto a slope and conduct slope stability analysis using the Shear Strength Reduction (SSR) method in RS3.

All tutorial files installed with RS3 can be accessed by selecting File > Recent > Tutorials folder from the RS3 main menu. The initial file of the tutorial can be found in Joint slope stability SSR - starting file.rs3model and the finished tutorial can be found in the Joint slope stability SSR - final.rs3model file.

2.0 Starting the Model

Open Joint slope stability SSR - starting file.

Go to Project Settings by following the steps:

Project Settings icon Select: Analysis > Project Settings.

Select the [Shear Strength Reduction] tab. Make sure the option 'Determine Strength Reduction Factor' is enabled and the inputs as:

  • Initial Estimate of SRF = 1,
  • Step Size of Automatic Selected, and
  • Tolerance (SRF) = 0.01.

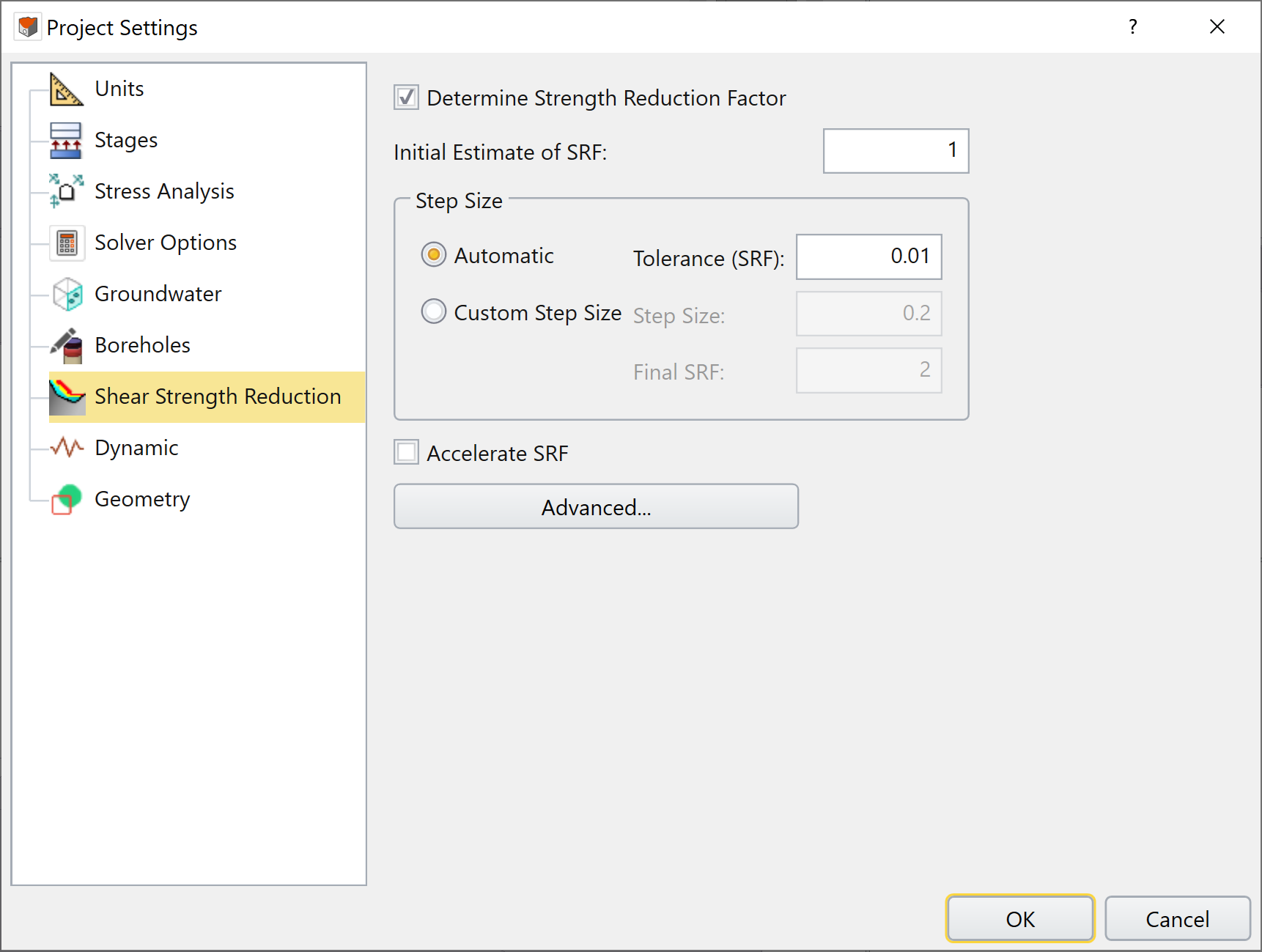

Shear Strength Reduction tab in Project Settings

Select OK and close the dialog.

3.0 Adding a Joint Surface

Ensure the Geology tab is selected from the workflow tab Geology workflow tab .

Before we begin with creating the joint surface, we will first select the thin extruded slope volume and set it as an external geometry.

Select the Volume 0 entity in the Visibility Tree, then select: Geometry > Set as External.

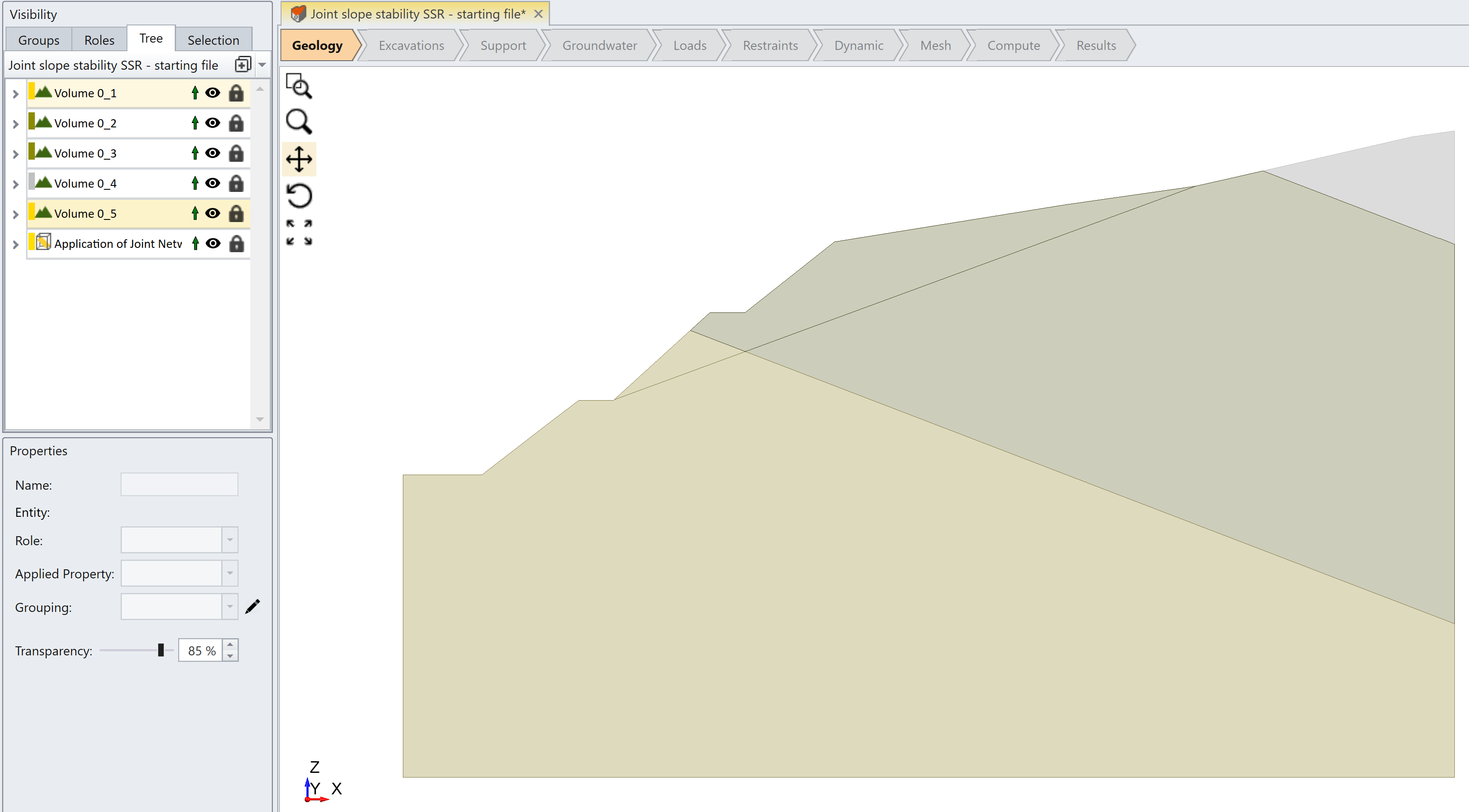

Image of plane surface that is set to as external

Now select the 'Application of Joint Networks (initial)_JOINT_BOTH_CLOSED' plane entity in the Visibility Tree. With the plane entity selected, your model should look as follows:

Image of model with assigned joint material

Select: Materials > Joints > Add Joint Surface.

Add Joint Surface dialog

In the Add Joint Surface dialog, keep all default settings and select OK. The plane entity has been converted to a joint surface.

Now we will use the Divide All Geometry option to create external volumes.

Select: Geometry > 3D Boolean > Divide All Geometry

Keep all settings as default as shown:

Divide All Parameters dialog

Select OK. The external volumes are now defined.

4.0 Assigning Materials

You will see multiple volumes in the Visibility Tree. We want to assign each layer of soil to Zone I, Zone II and Zone III.

Select the Volume 0 entity in the Visibility Pane that corresponds to the top right volume of the model in the ZX plane viewport as shown below. In the Properties Pane, change the Applied Property to Zone I.

Zone 1 highlighted in Z-X Plane Viewport

Hold CTRL and select the two volumes beneath Zone I as shown below and change the Applied Property to Zone II.

Zone 2 highlighted in Z-X Plane Viewport

Hold CTRL and select the bottom two volumes of the model and assign change the Applied Property to Zone III.

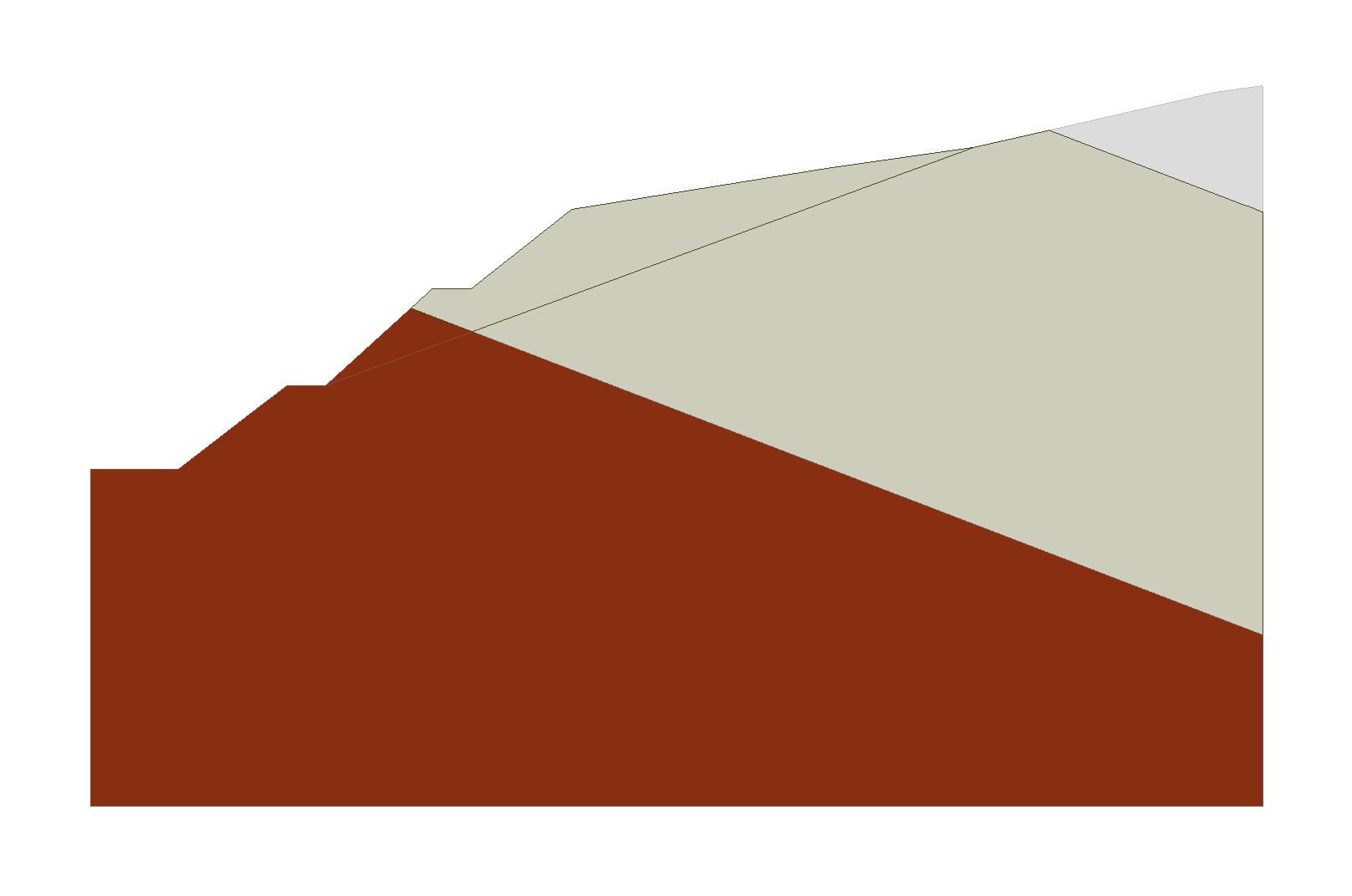

Zone 3 highlighted in Z-X Plane Viewport

The soil layers should be assigned as follows.

Z-X Plane view of the joint with zones defined

5.0 Restraints

Select the Restraints tab Restraints workflow tab .

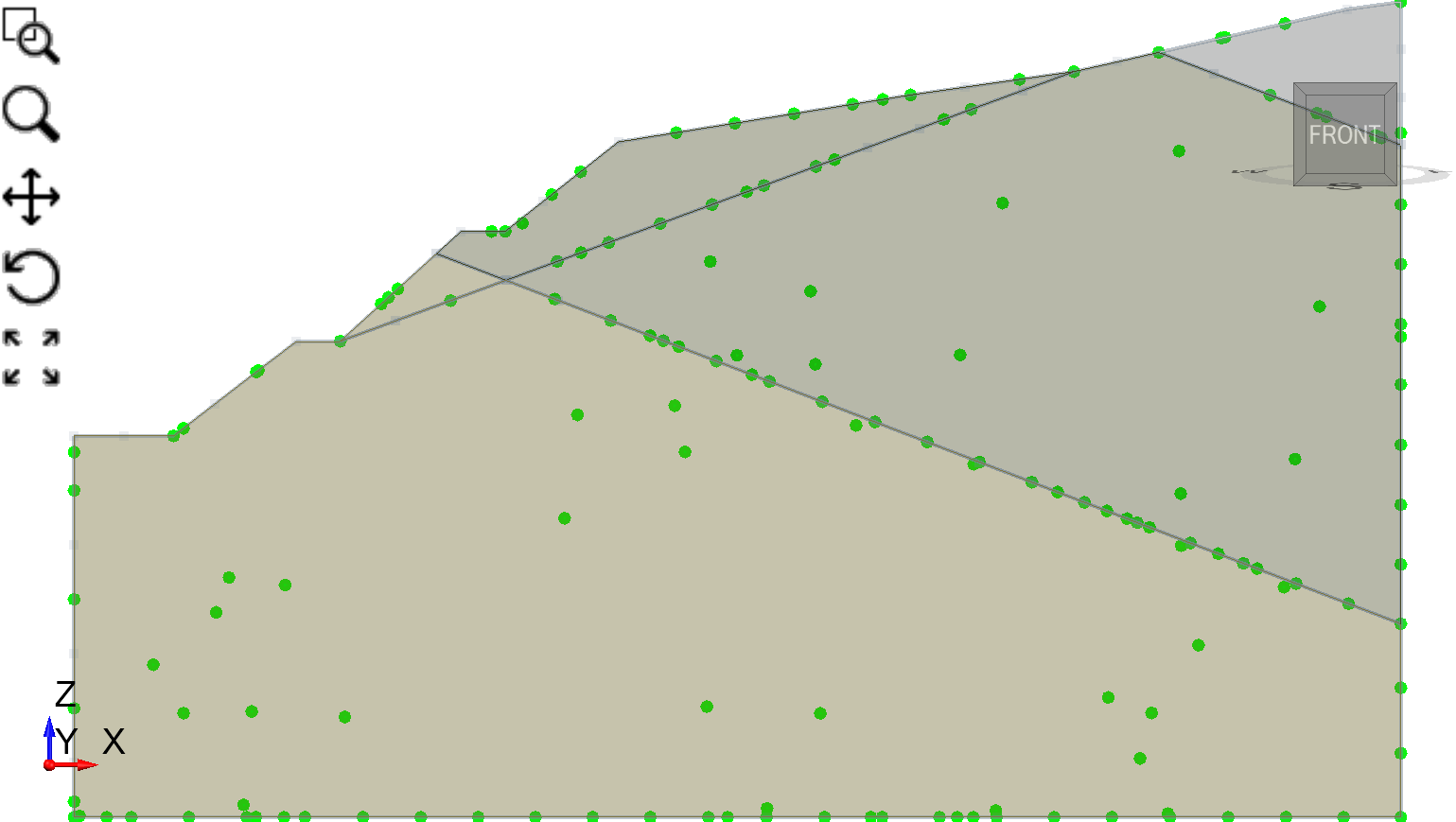

Select the Faces Selection option Face Selection icon from the toolbar. While holding CTRL, select (left-click) the front (XZ) faces of the model as shown below.

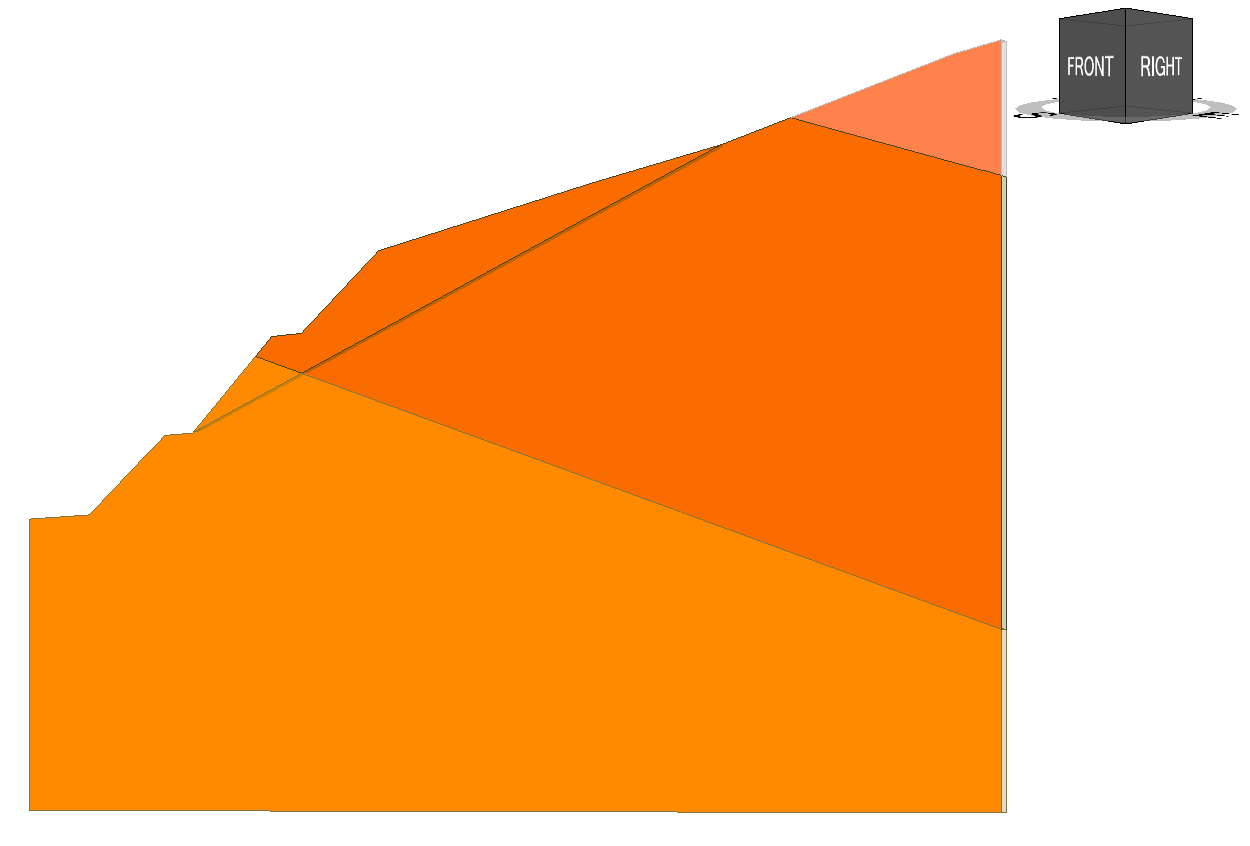

Front Face of Model (ZX plane) selected

Select: Restraints > Add Restraints / Displacement > Restrain Y.

In the Add Restraint dialog, select OK. Now you will see the assigned restraints on the front of the model as shown below.

ZX View of Restraints on the model's Front surface

Do the same for the back face (XZ plane) of the model by rotating the 3D viewcube.

Now select the left and right side (YZ) faces of the model as shown below:

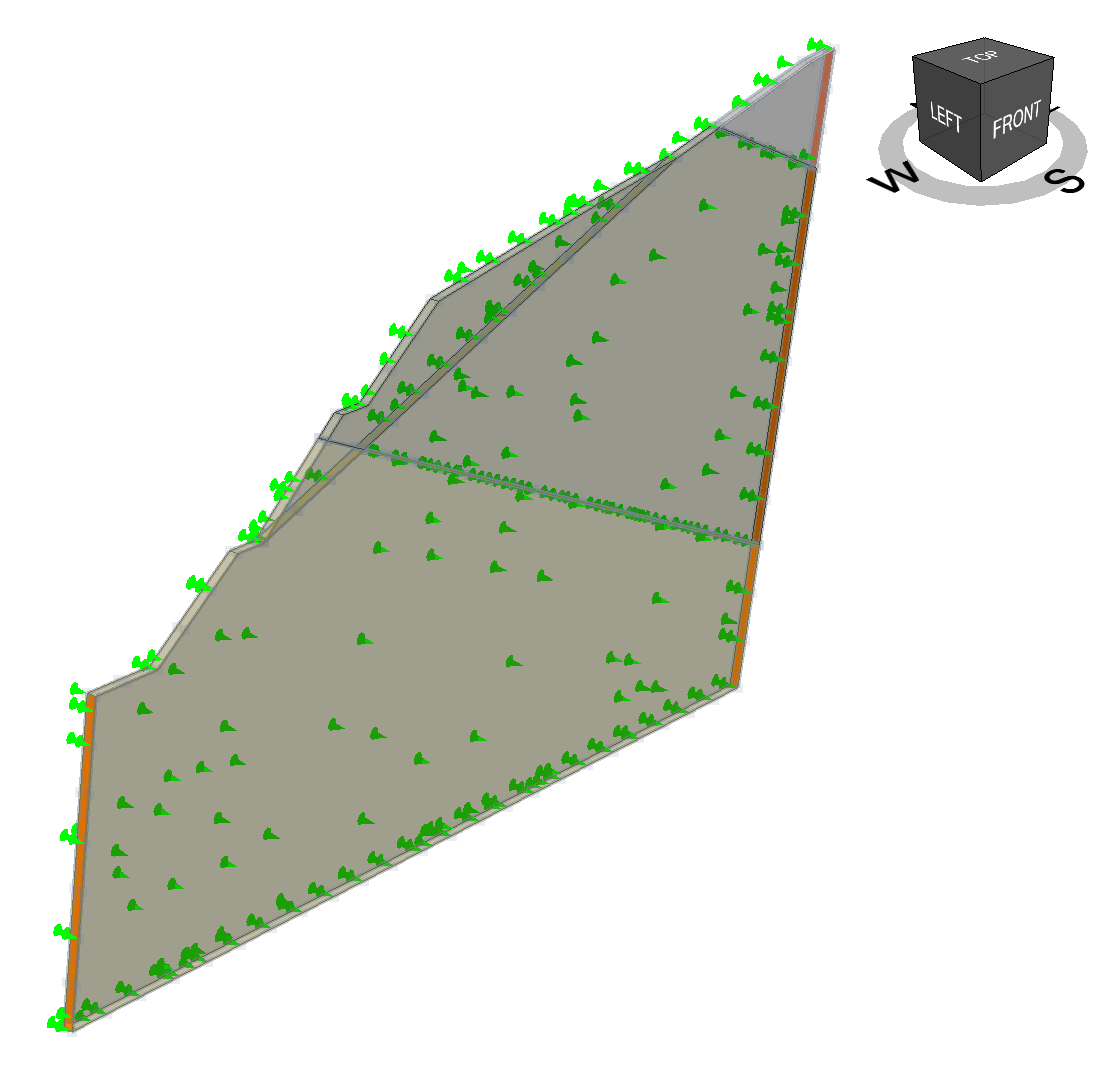

3D view of model with Left and Right sides of the model selected

Assign XY restraints by selecting Restraints > Add Restraints/Displacements > Restrain XY.

In the Add Restraint dialog, select OK.

Now, select the bottom face and assign restraint XYZ by selecting Restraints > Add Restraints/Displacements > Restraint XYZ. In the Add Restraint dialog, select OK. Then, you will see the following restraints as shown below.

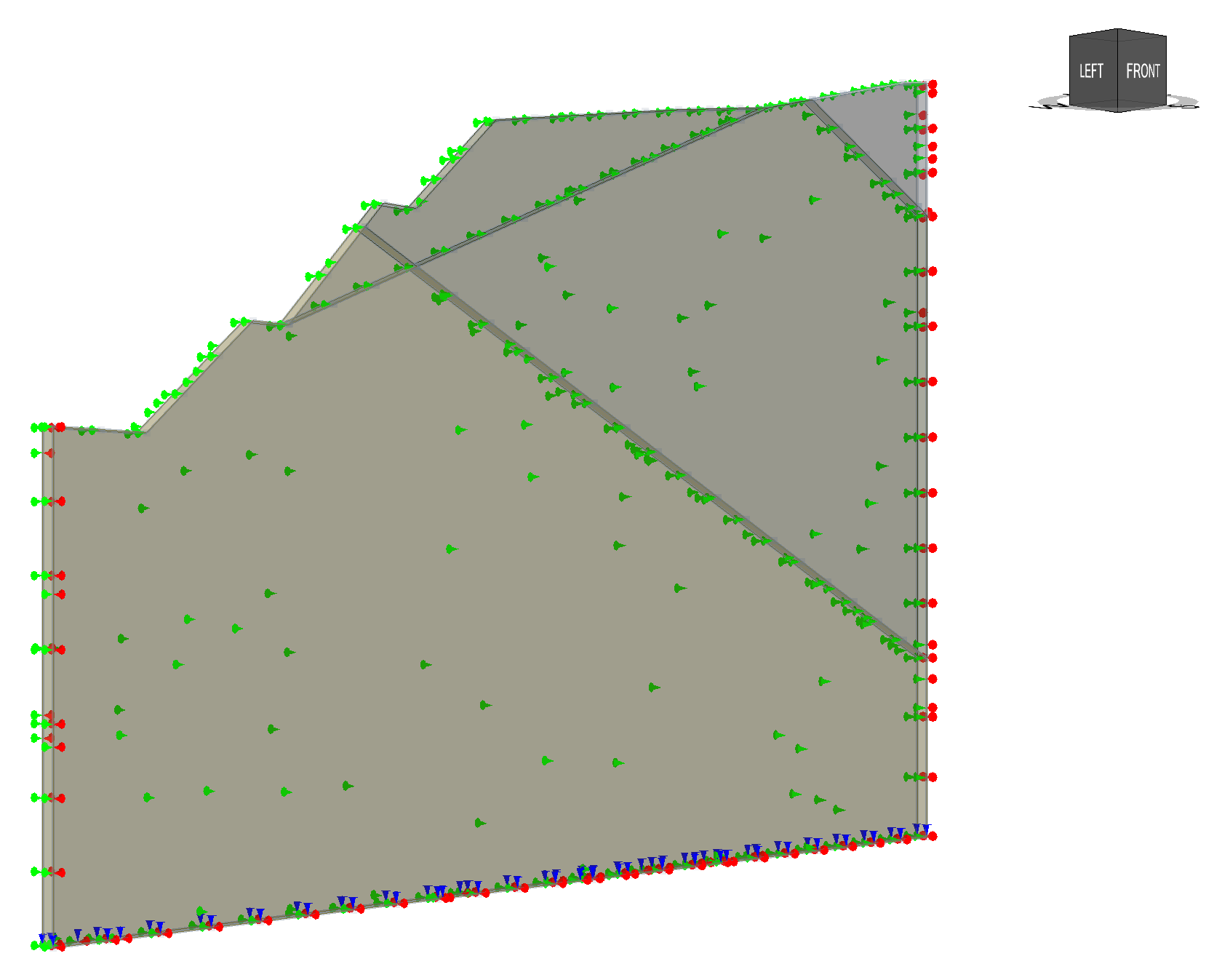

3D view of model with restraints

6.0 Mesh

Next, we move to the Mesh tab Mesh workflow tab .

Here we may specify the mesh type and discretization density for our model.

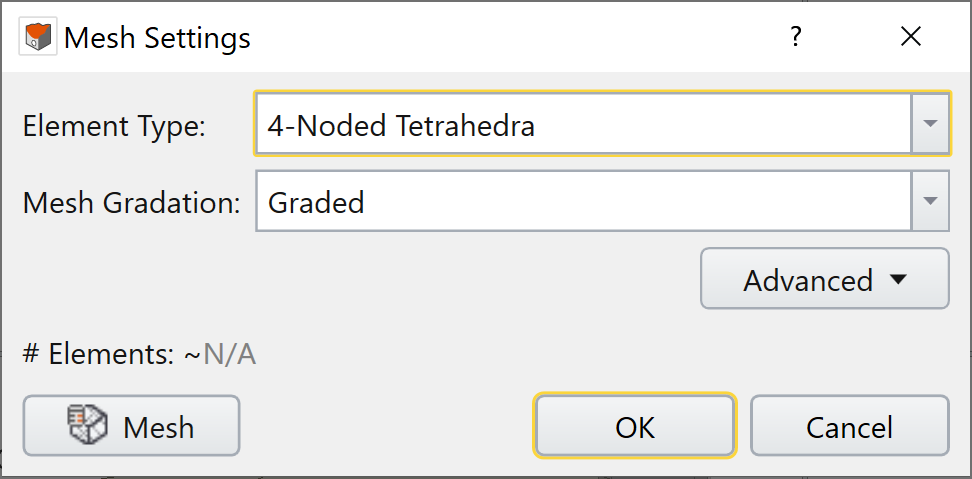

Mesh icon Select: Mesh > Mesh Settings

Use the following settings:

  • Element Type = 4-Noded Tetrahedra,
  • Mesh Gradation = Graded.

Select Mesh to mesh the model.

Mesh Settings dialog

The mesh is now generated, your model should look like the one below.

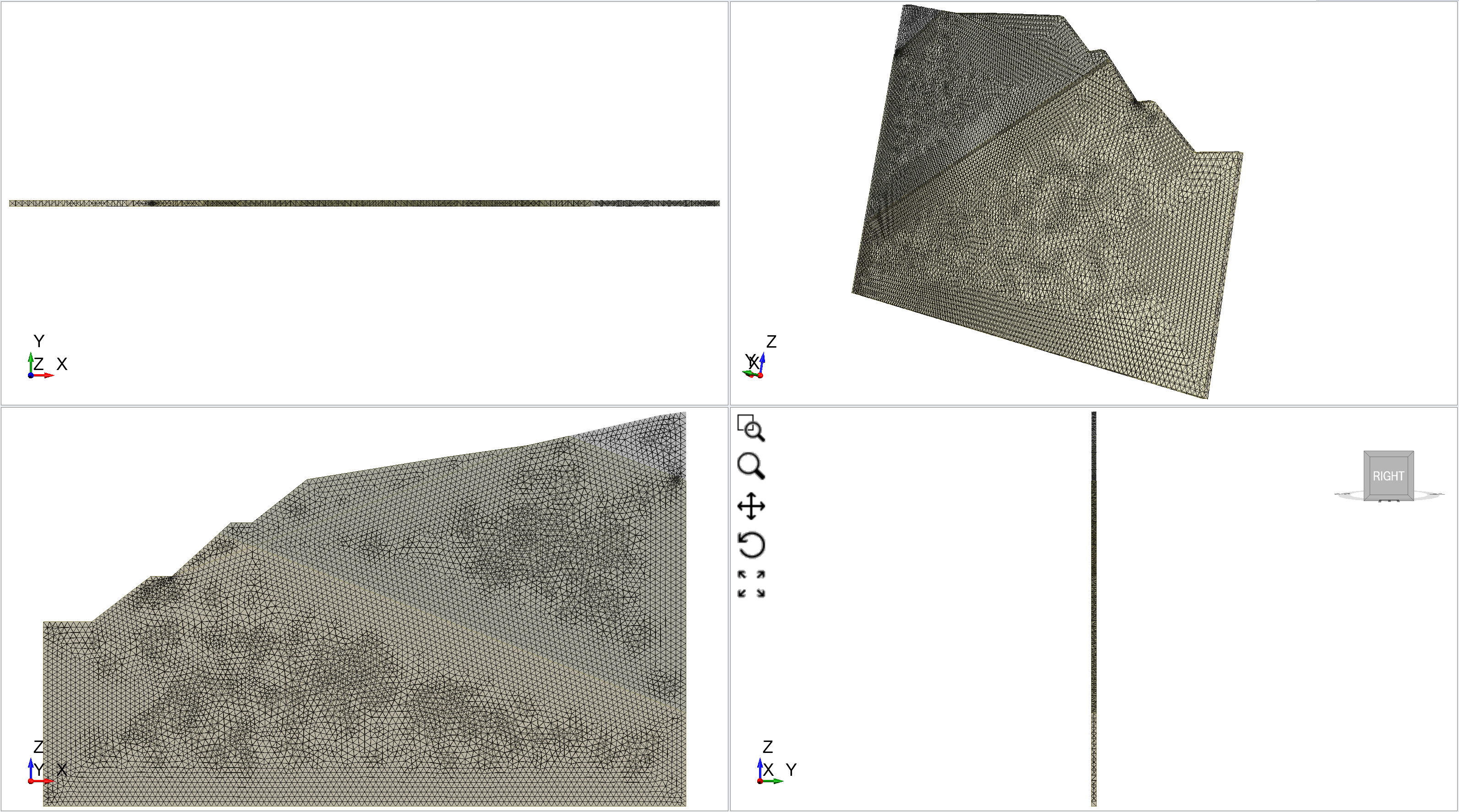

Model with Mesh Generated

Now we will compute the model.

7.0 Compute

Next, we move to the Compute tab Compute workflow tab .

From this tab, we can compute the results of our model. First, save your model: File > Save As.

Use the Save As dialog to save the file. You are now ready to compute the results. SSR analysis requires multiple iterations to locate the Critical SRF which increases the computation time.

Computation should take about 20 minutes depending on your computer specifications.

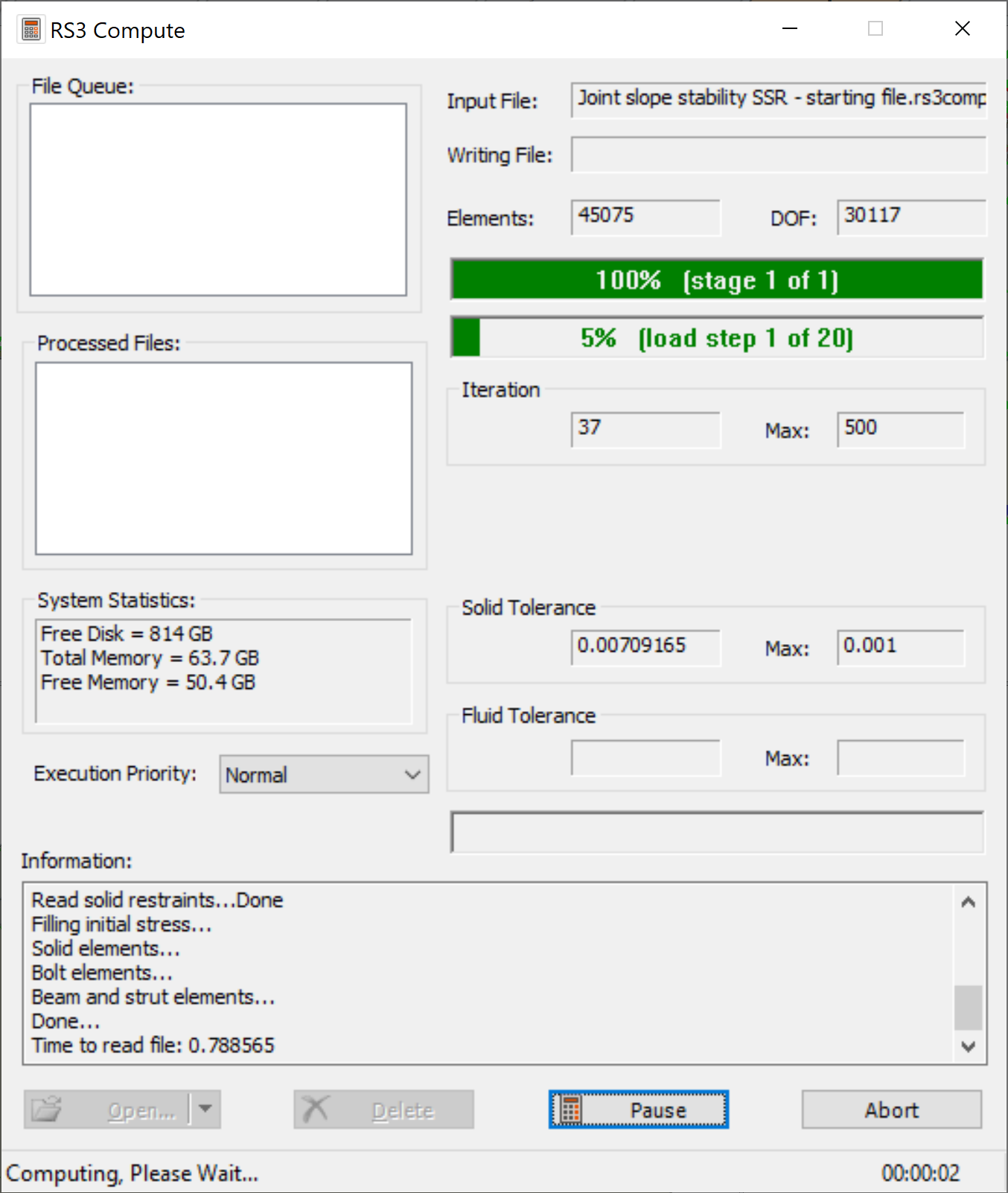

Compute icon Select: Compute > Compute.

Compute dialog

8.0 Results

Next, once the computation is complete we move to Results tab Results workflow tab .

Right beside the Results tab, you will see the Critical SRF value of 1.85 when the model fails.

In the legend, change Data Type to Total Displacement and under the SRF drop-down menu change it to 1.9.

The SRF text colour indicates the model has failed if it's red.

Show Excavation Contour icon Select: Interpret > Show Exterior Contour.

As shown below, the critical zone of failure occurs in the volume of material that is sliding along the joint surface.

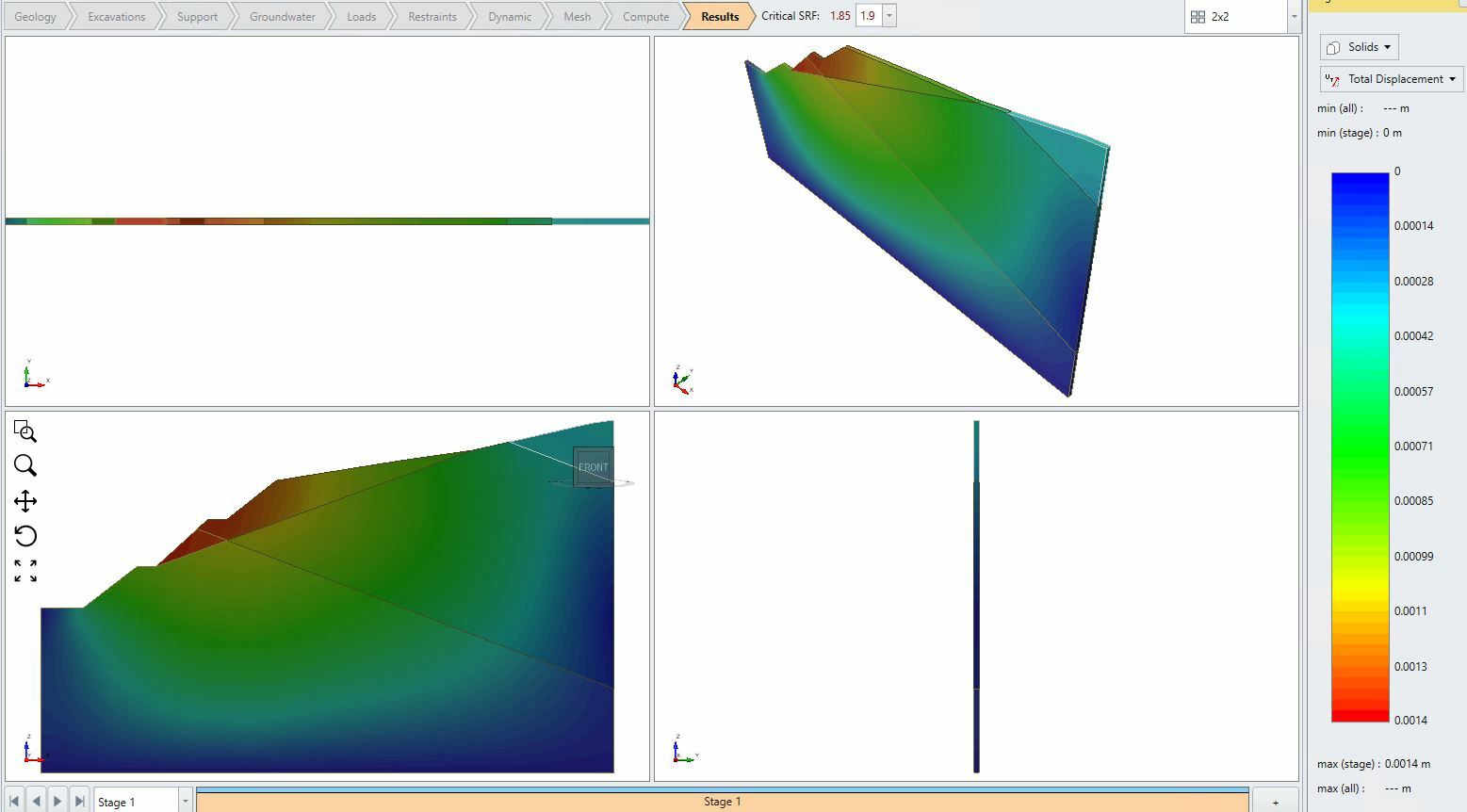

Results SRF

This concludes the tutorial on jointed slope stability analysis using SSR in RS3.
