19 - Embankment Cross Section Designer

This tutorial introduces the Cross Section feature in the Embankment Designer dialog in Settle3 that allows users to define layers within the cross section of an embankment. This will enable the user to build the embankment in any predefined layering which simulates road, dam construction or extension of old embankments.

Topics Covered in this Tutorial:

  • Embankment Cross Section Designer
  • Advanced Embankment Staging
  • Non-Horizontal Layering
  • Boreholes

Finished Product:

The finished product of this tutorial can be found in the embankment_final.s3z file. All tutorial files installed with Settle3 can be accessed by selecting File > Recent Folders > Tutorials Folder from the Settle3 main menu.

1.0 Introduction

The Embankment Cross Section Designer feature is closely related to the embankment designer feature which was first introduced in Tutorial 8 which can be found here on the Settle3 tutorials page. To guide users through this new feature, we will model the extension of a road embankment by considering three separate stages. The first stage will represent the existing condition of the road embankment, the second stage will aim to extend the embankment to make the existing road wider, and the third stage will raise the embankment to the appropriate height.

In addition to the soil properties of the subsurface materials and embankment fills, three boreholes will be used to define non-horizontal soil layering. We will now begin by defining the project settings.

2.0 Model

If you have not already done so, run the Settle3 program by double-clicking the Settle3 icon in your installation folder or by selecting Programs > Rocscience > Settle3 in the Windows Start menu.

When the program starts, a default model is automatically created.

2.1 Project Settings

  1. Select Home > Project Settings Project Settings icon
  2. In the General tab, please select the following options:
    • Stress Computation Method = Boussinesq
    • Units
      • Stress = Metric, stress as kPa
      • Settlement = Centimeters

    Project Settings dialog

    Suppose the embankment is an extension and we are to raise an old road embankment. The following layers are expected to be constructed.

    Cross Section Layering diagram

    As shown in the figure above, we need to define three stages of construction in our model.

  3. Select the Stages tab. Increase the Number of Stages to 3. Since we are only interested in the immediate settlement, there is no need to check the time-dependent calculation box and no need to add time durations for the stages.

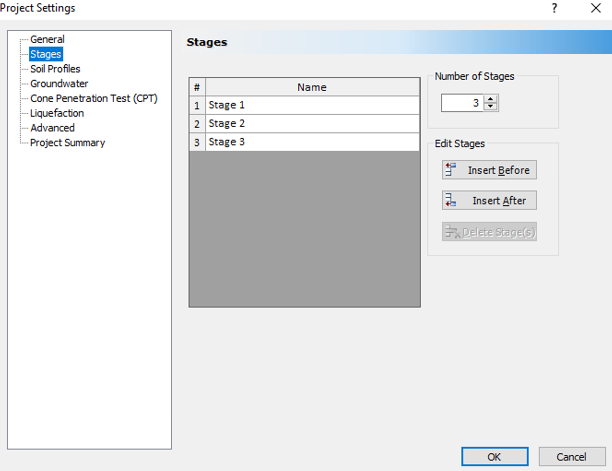

    Project Settings dialog - Stages tab
  4. Since our model requires non-horizontal layering, select the Soils Profile tab and change the Layer Options to Non-Horizontal Layers to allow more than one borehole to be applied.
    Soil profiles dialog
  5. You can choose the Interpolation Method for the extension of layers between the boreholes. For the purpose of this tutorial, we will keep the default option of Linear.

  6. Note that this embankment feature does not support non-horizontal ground surfaces. In other words, if the ground surface is non-horizontal the embankment will still be added with a flat surface as the bottom.

  7. Select the Groundwater tab, and select Groundwater Analysis with the Piezometric Line as the Method.
    Project Settings dialog - Groundwater tab
  8. Click OK.

3.0 Soils

3.1 Soil Properties

  1. Select Soils > Define Soil Properties Soil Properties icon
  2. Enter the following properties shown in the table below for the two soil layers:
  3. Soil Name

    Unit Weight [kN/m3]

    Saturated Unit Weight [kN/m3]

    K0

    Immediate Settlement

    Primary Consolidation

    Es [kPa]

    Esur [kPa]

    Material Type

    Cc

    Cr

    e0

    OCR

    Loose Sand

    14

    18.53

    0.55

    10000

    10000

    Soft Clay

    18

    20

    0.3

    20000

    20000

    Non-Linear

    0.4

    0.04

    1

    1

    Very Dense Sand

    21

    21

    1

    80000

    80000

    Bed Rock

    18

    18

    1

  4. Make sure to uncheck the Secondary Consolidation Settlement option for every soil layers.
  5. In addition, the Bed Rock layer will not undergo any settlement so we will uncheck both Immediate Settlement and Primary Consolidation.

3.2 Boreholes

Now we will define the soil layers by adding three boreholes.

  1. Select Soils > Add Borehole Add Borehole icon
  2. In the Edit Borehole dialog, input the following Thickness values for the corresponding borehole:

Borehole 1

  • Loose sand = 3
  • Soft clay = 2
  • Very dense sand = 14
  • Bed Rock = 10

Edit Borehole dialog - Borehole 1

Borehole 2

  • Loose sand = 3.5
  • Soft clay = 12
  • Very dense sand = 7
  • Bed Rock = 10

Edit Borehole dialog - Borehole 2

Borehole 3

  • Loose sand = 3.5
  • Soft clay = 8
  • Very dense sand = 6.5
  • Bed Rock = 10

Edit Borehole dialog - Borehole 3

It is worth noticing that boreholes have different depths for every layer. The clay layer is thicker in Borehole 2, which makes the consolidation and overall settlement surrounding this borehole greater than the rest of the embankment area. You may also define the soil layers using top and bottom elevation points by unchecking Define Layers by Thickness and inputting the associated elevations.

4.0 Groundwater

  1. Select Groundwater > Add Piezometric Line Add Piezometric Line icon
  2. Enter a Depth of 2.0 m and click OK.
    Add Piezometric Line dialog
  3. Once the Assign Piezometric Line to Soil dialog appears, click Select All and then OK.

5.0 Loads

5.1 Embankment Cross Section

  1. Select Loads > Load by Zones Add Embankment icon to open the Embankment Cross Section Designer.
  2. The Embankment Cross Section Designer dialog allows the users to enter the embankment cross section layers and their respective stages. The coordinates may be filled in directly using the coordinates table or may be plotted using the mouse in the plan view.

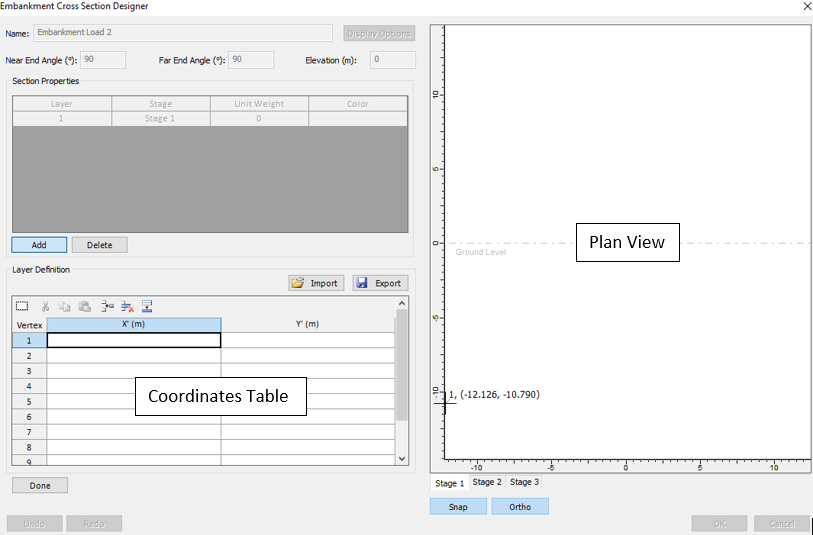

    Embankment Cross Section Designer dialog

  3. To add layers, select the Add button located below the Section Properties field. Using the table below, enter the following layer and stage:
  4. Layer

    Stage

    Unit Weight [kN/m3]

    Vertex

    X'

    Y'

    1

    Stage 1

    17.5

    1

    0

    0

    2

    22.5

    0

    3

    16.5

    3

    4

    6

    3

    2

    Stage 2

    18

    1

    6

    3

    2

    16.5

    3

    3

    22.5

    0

    4

    37

    0

    5

    29

    4

    6

    8

    4

    3

    Stage 3

    18

    1

    8

    4

    2

    29

    4

    3

    37

    0

    4

    41

    0

    5

    29

    6

    6

    12

    6

    After inputting the above information, your embankment cross section should look like the following:

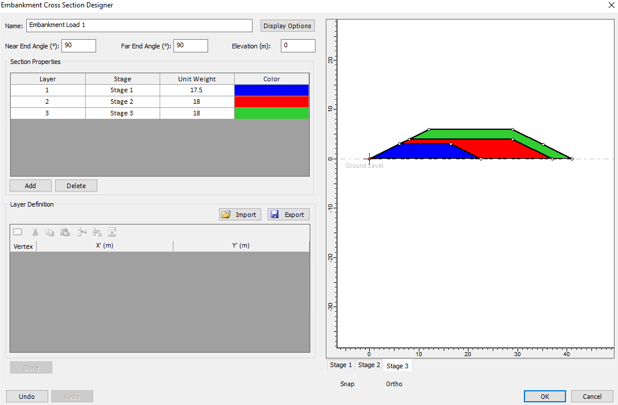

    Embankment Cross Section Designer dialog

  5. Once you have input all of the information shown above, click OK to input the coordinates of the embankment's bottom surface.
  6. Enter the following two points: {56,150}, {56,50}
  7. Your plan view should automatically update with a rectangular object as shown below:

    plan view with rectangular object

  8. The three stages will appear as tabs at the bottom of the drawing. Right-click on Stage 1 to choose it as a reference stage as the settlement of the stage is already finished and is not required for the new layers added in the road extension.

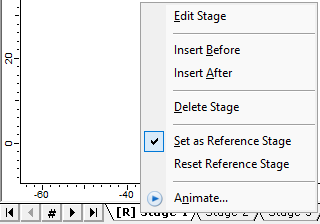

Set as Reference Stage

6.0 Computation

6.1 Add Field Points Grid

  1. Select the Query > Add Field Point Grid add field point grid option.
  2. Choose the number of grid points desired. 400 field points are sufficient for this model.
  3. Click OK and you will be prompted to enter coordinates as we did for the Embankment Designer. For the Field Point Grid, you can either enter coordinates or use the plan view; we will just click and drag to cover an area slightly larger than the embankment itself. For reference, see below for the sizing of the field point grid.

field point grid

6.2 Add Query Line

To calculate the overall settlement at each stage, a query line is chosen in each direction as shown in the layout above.

  1. Select Query > Add Line add query line
  2. The query line chosen crossing is at around {35,100}.

The settlements are calculated immediately when the query lines appear. If contours of the settlement are required, an area for grid points may be added using the Auto Field Points Grid option or the Add Field Points Grid option (see previous section).

7.0 Results

The settlement contours and values for the query line will be immediately calculated and shown. You may see the settlement of each stage by clicking through the stage tab at the bottom.

results


As expected, the maximum settlement occurs in the region closest to Borehole 2.

You can refer to other tutorials to learn how to handle other options for time dependence.

This concludes the Embankment Cross Section Designer tutorial. You may now exit the program.
