An essential part of your rock slope analysis toolkit, RocPlane is an easy-to-use tool for planar wedge stability analysis and design. RocPlane is an especially useful tool for geotechnical engineers analyzing bench stability in open pit mines and rock slopes.

RocPlane

Applications

Getting Support
Help yourself to a comprehensive database of product support. Subscribe to get free upgrades and expert help for your software. See the latest software updates and download the newest version.

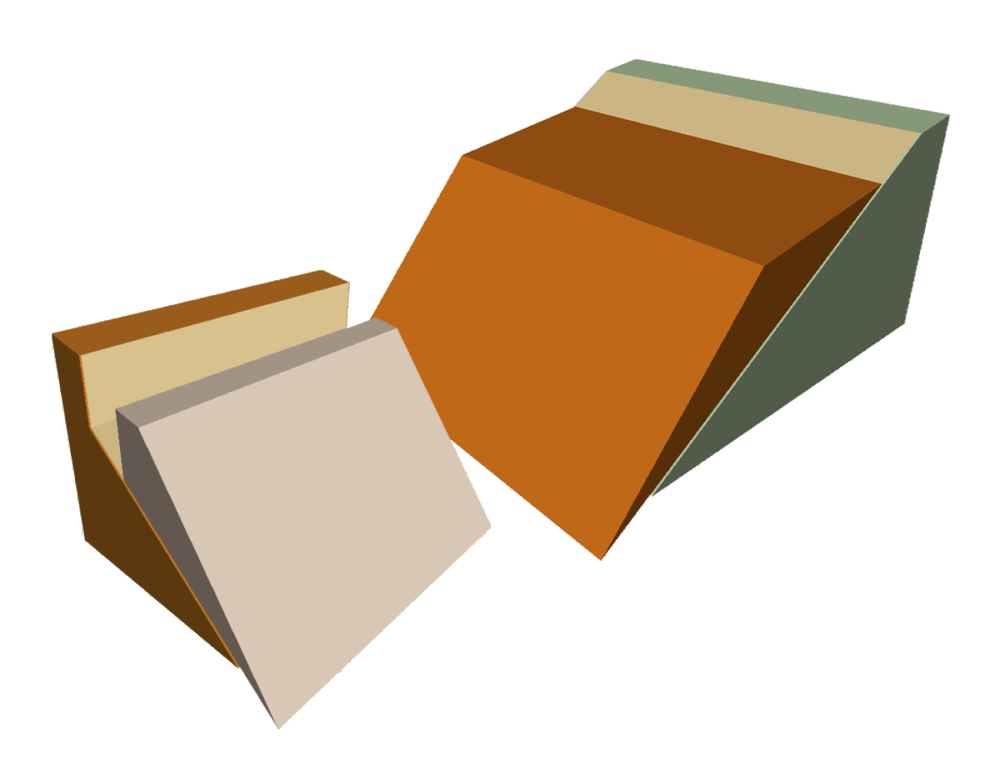

RocPlane is an interactive software tool for performing planar rock slope stability analysis and design. RocPlane makes it easy to quickly create planar models, visualize them in both 2D and 3D, and evaluate analysis results. RocPlane contains many helpful features that allow users to rapidly build, modify and run models.

RocPlane also includes functionalities for easily analyzing results, generating figures and charts, and producing convenient summaries of models and results. The report generation features of RocPlane are especially useful to engineers when writing reports with high quality and professional-looking drawings and diagrams. They help slope designers readily communicate findings to people with varying levels of slope engineering knowledge.

Software Screenshots

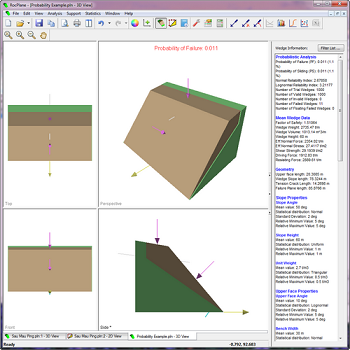

RocPlane Figure 1: Probabilistic analysis in RocPlane.
RocPlane Figure 1: Probabilistic analysis in RocPlane.
RocPlane Figure 1: Probabilistic analysis in RocPlane.

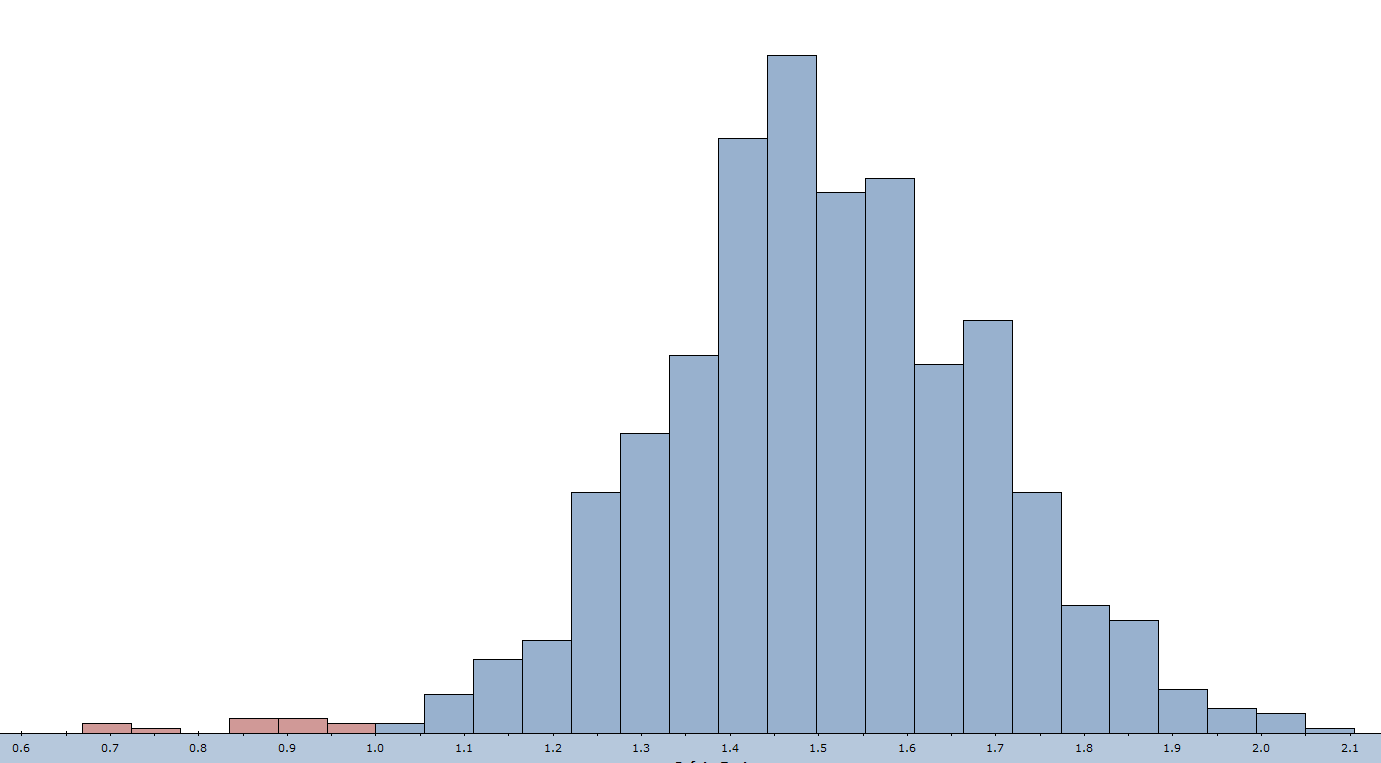

RocPlane Figure 2: Probabilistic bench analysis.
RocPlane Figure 2: Probabilistic bench analysis.
RocPlane Figure 2: Probabilistic bench analysis.

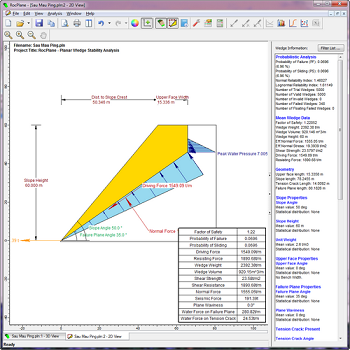

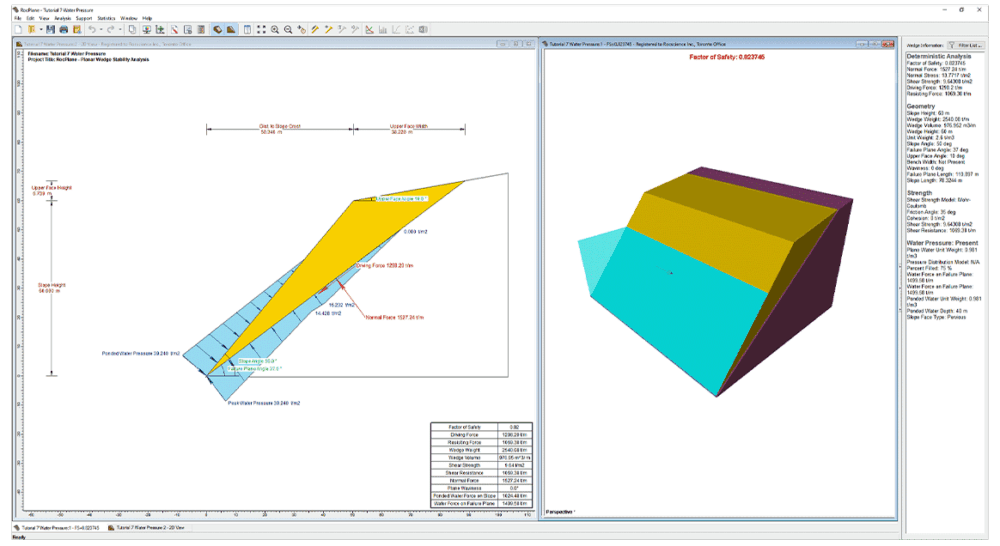

RocPlane Figure 3: View water pressure.
RocPlane Figure 3: View water pressure.
RocPlane Figure 3: View water pressure.
RocPlane Figure 4:
RocPlane Figure 4:
RocPlane Figure 4:
RocPlane Figure 1: Probabilistic analysis in RocPlane. RocPlane Figure 1: Probabilistic analysis in RocPlane. RocPlane Figure 2: Probabilistic bench analysis. RocPlane Figure 2: Probabilistic bench analysis. RocPlane Figure 3: View water pressure. RocPlane Figure 3: View water pressure. RocPlane Figure 4: RocPlane Figure 4:

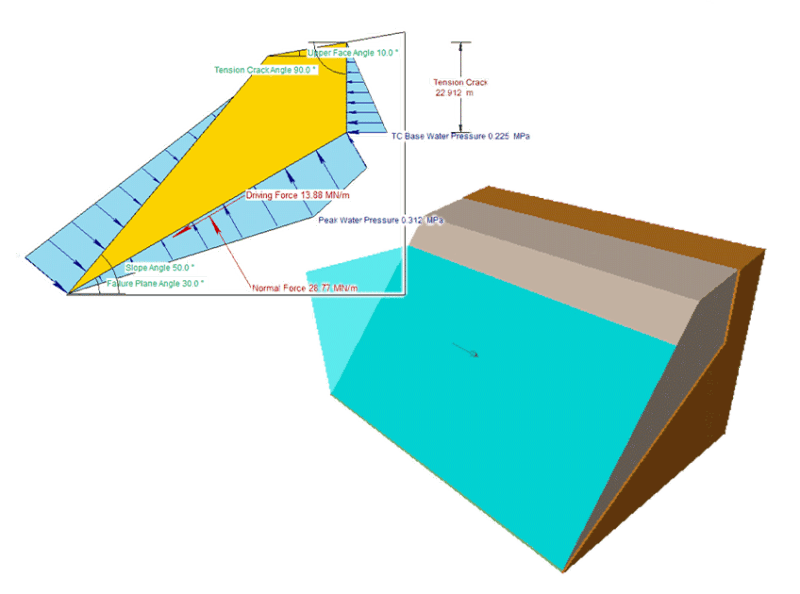

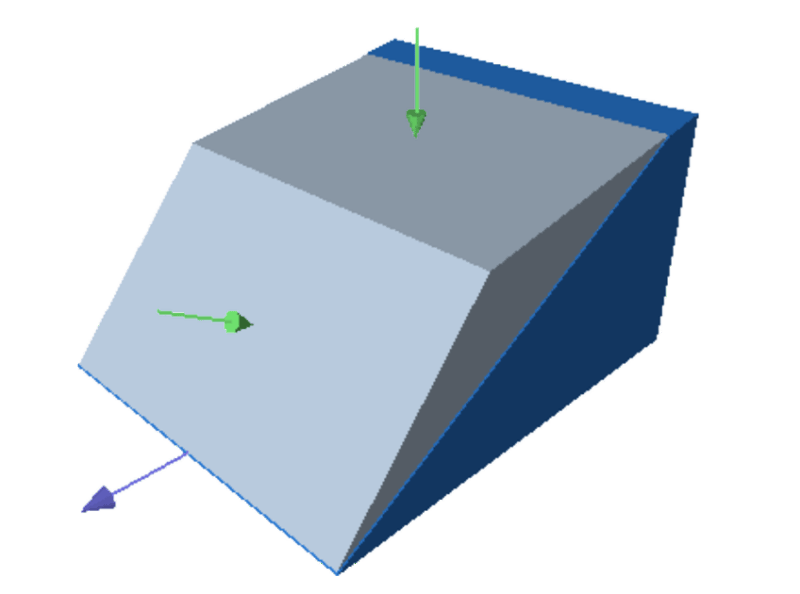

Applications

Product Highlights

  • What’s New in RocPlane v3.0
  • Support and Loading
  • Probabilistic Analysis
  • Bench Analysis
  • Wedge Size Analysis

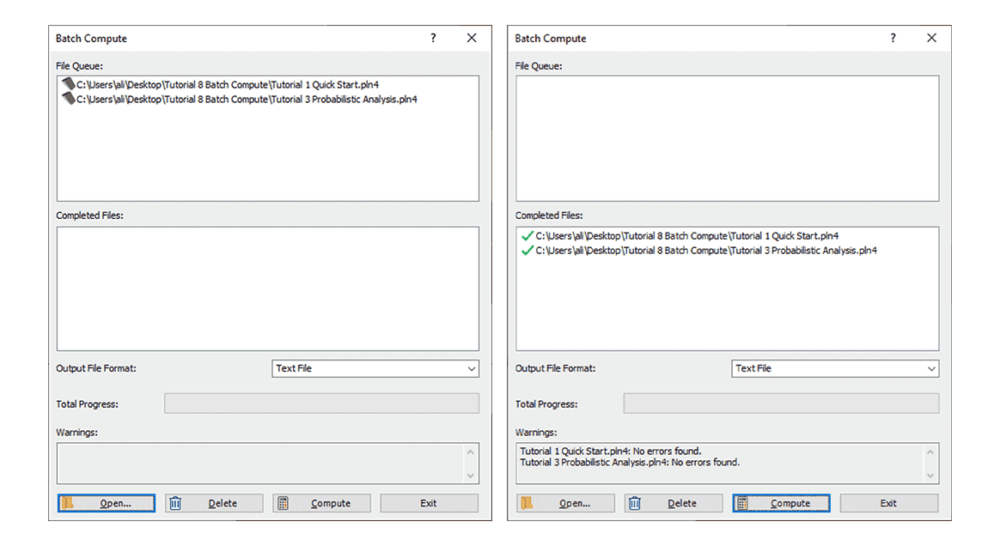

What’s New in RocPlane v3.0

RocPlane v3.0 includes a number of important new additions, including:

  • Design Standards that allow you to define partial safety factors which are applied to different components of the analysis, including Eurocode and BS8006
  • Bench analysis for open pit mining applications
  • Wedge Scaling, allowing you to scale the size of wedges according to Joint or Tension Crack Persistence, Wedge Volume, or Wedge Weight
  • New Probabilistic Analysis options
  • Interface Improvements

Support and Loading

There are various ways of modeling supports and loading in RocPlane:

  • Bolts can be added to the model with the Add Bolt option.
  • An average support or loading pressure can be defined with the Pressure option.
  • A force can be applied to the wedge with the External Force option.

It is important to remember that all of the methods of modeling support in RocPlane simply represent different ways of applying a force to the wedge. Like all other forces in the RocPlane analysis, support forces are applied through the centroid of the wedge and are specified per unit width of slope.

Probabilistic Analysis

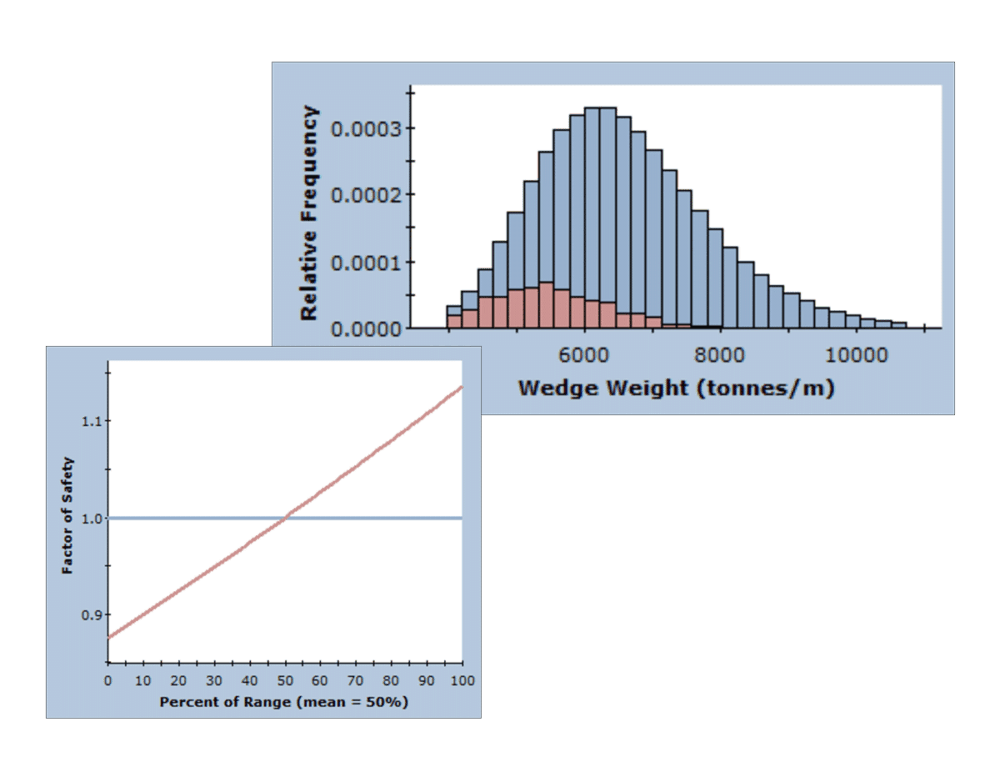

In RocPlane v3.0 you can carry out probabilistic analyses, where you can define statistical distributions for input parameters, to account for uncertainty in the input parameter values. A probabilistic analysis will provide you with a safety factor distribution and a probability of failure.

An important new addition to the probabilistic analysis capabilities in RocPlane is the ability to define variability of the failure plane shear strength, with respect to the mean strength envelope, rather than the individual strength parameters. This simplifies the probabilistic definition of shear strength and avoids the issue of statistical correlation of random samples of multiple input parameters. You can still define statistics for individual strength parameters; or you can use the new option based on the mean envelope.

Bench Analysis

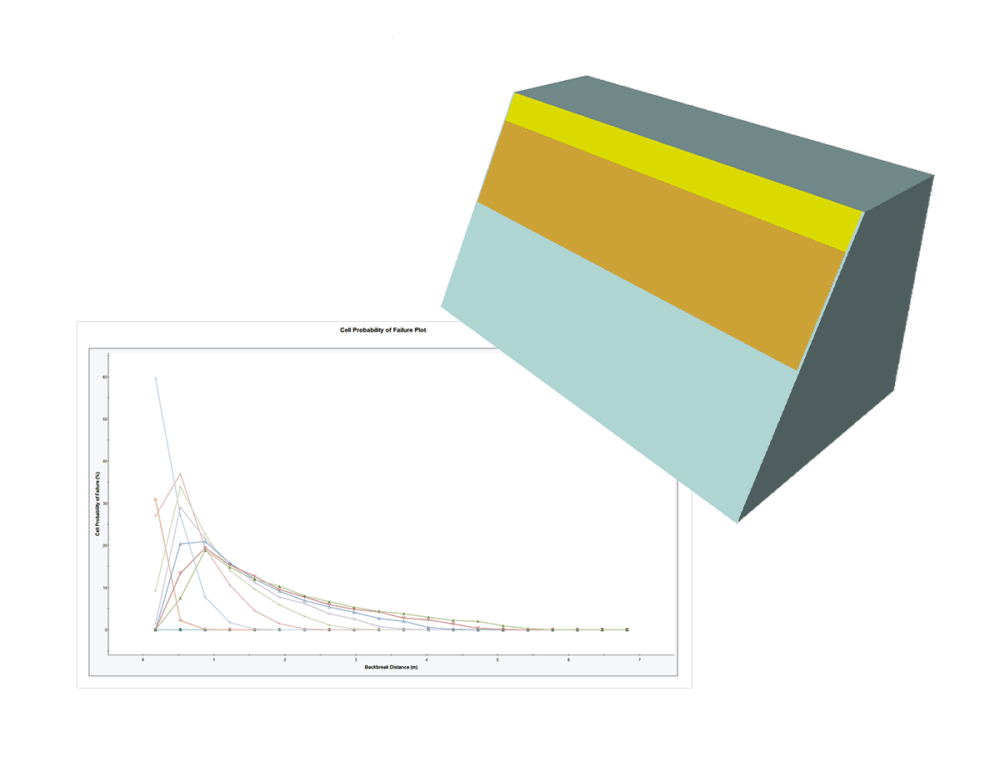

The Bench Design option is an extension of the probabilistic analysis features in RocPlane. Assuming either a constant bench width or constant inter-ramp angle you can input the design parameters and statistical joint information in order to optimize the bench slope angle according to design constraints. The analysis output allows you to interpret the results according to various methods including:

  • managed approach to bench design
  • quantitative hazard analysis (QHA)

The following statistics can be plotted for bench design:

  • Total Probability of Failure
  • Cumulative Frequency of Failed Wedges
  • Minimum Bench Width
  • Cell Probability of Occurrence
  • Cell Cumulative Probability of Occurrence
  • Cell Probability of Sliding
  • Cell Probability of Failure

Wedge Size Analysis

The Minimum Wedge Size option allows you to exclude the analysis of very small wedges which may be generated by a Probabilistic analysis.

This option is useful because very small wedges can sometimes give misleading analysis results (e.g. very low safety factors) and may be difficult to see on the model (e.g. very thin slivers). In general, it is larger wedges which are of the greatest concern in a Roc Plane stability analysis. Although the Minimum Wedge Size option is OFF by default, it is recommended that this option is enabled for Probabilistic analysis to filter out the analysis of very small wedges.

In RocPlane v3.0, you can now scale the size of wedges according to:

  • Joint or Tension Crack Persistence
  • Wedge Volume
  • Wedge Weight
Getting Support
