Settlement
& Foundation
Analyze settlement and foundation performance to design safer, more reliable structures.
Supporting engineers in predicting short and long-term settlement for a wide range of foundation applications
Integrated workflows for consolidation, staged loading, pile and shallow foundation response, and ground improvement behaviour to provide the transparency needed to understand ground deformation and manage serviceability risk.
Designed for Confident Settlement Prediction and Foundation Analysis

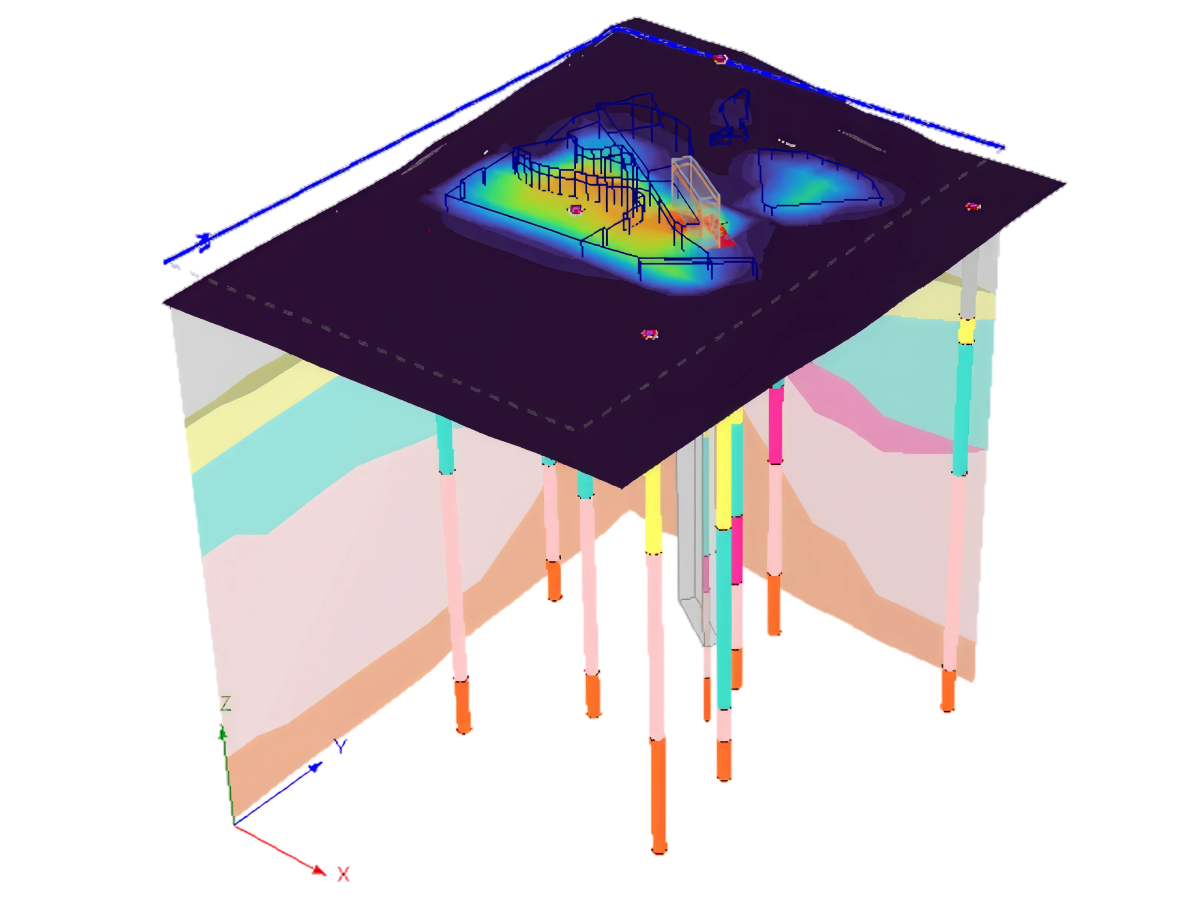

Capture immediate, primary, and secondary settlement in a single workflow with Settle3. Evaluate embankments, surface loads, and foundations under staged construction, time-dependent consolidation, and varying groundwater and ground surface conditions.

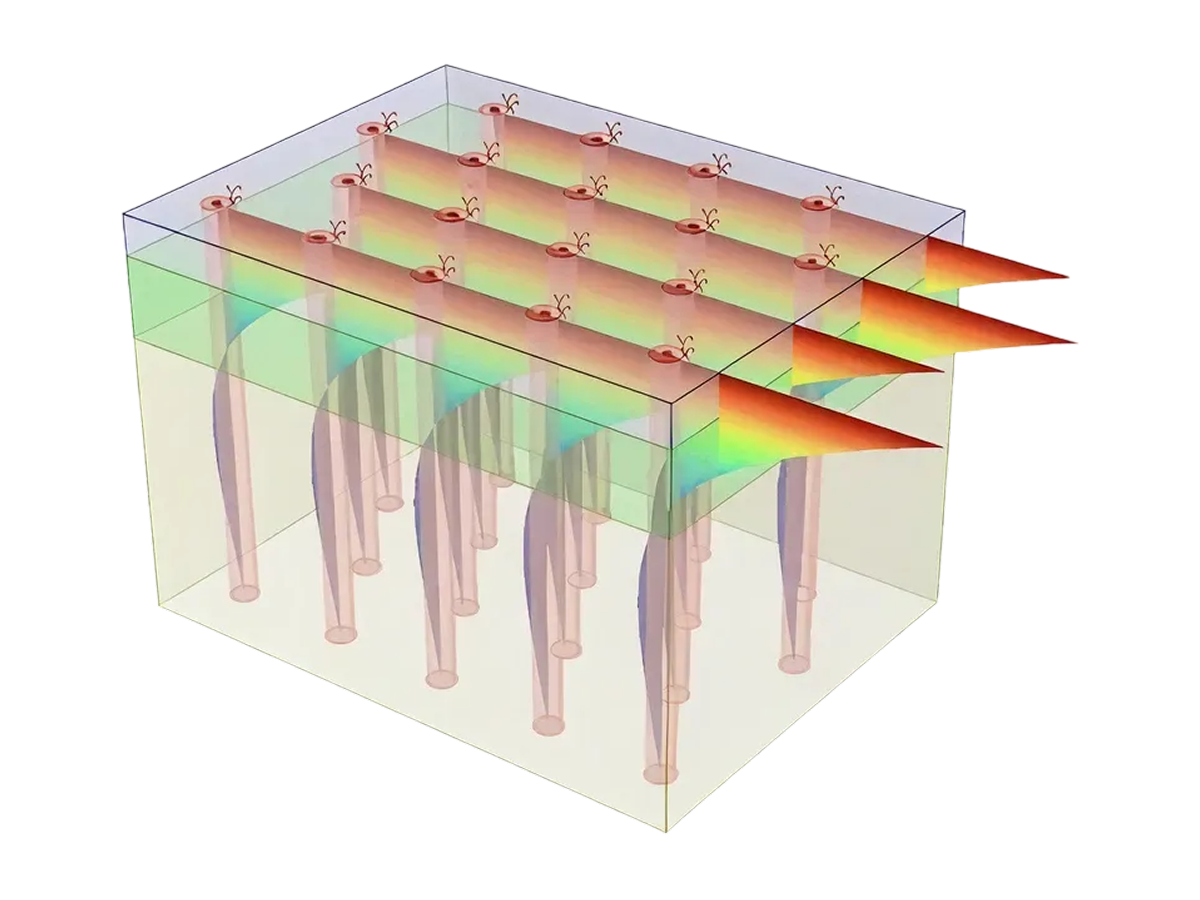

Assess shallow and deep foundations with confidence using RSPile and Settle3. Analyze single piles, pile groups, and complex foundations under vertical and horizontal loads to understand performance, capacity, and interaction with the surrounding ground.

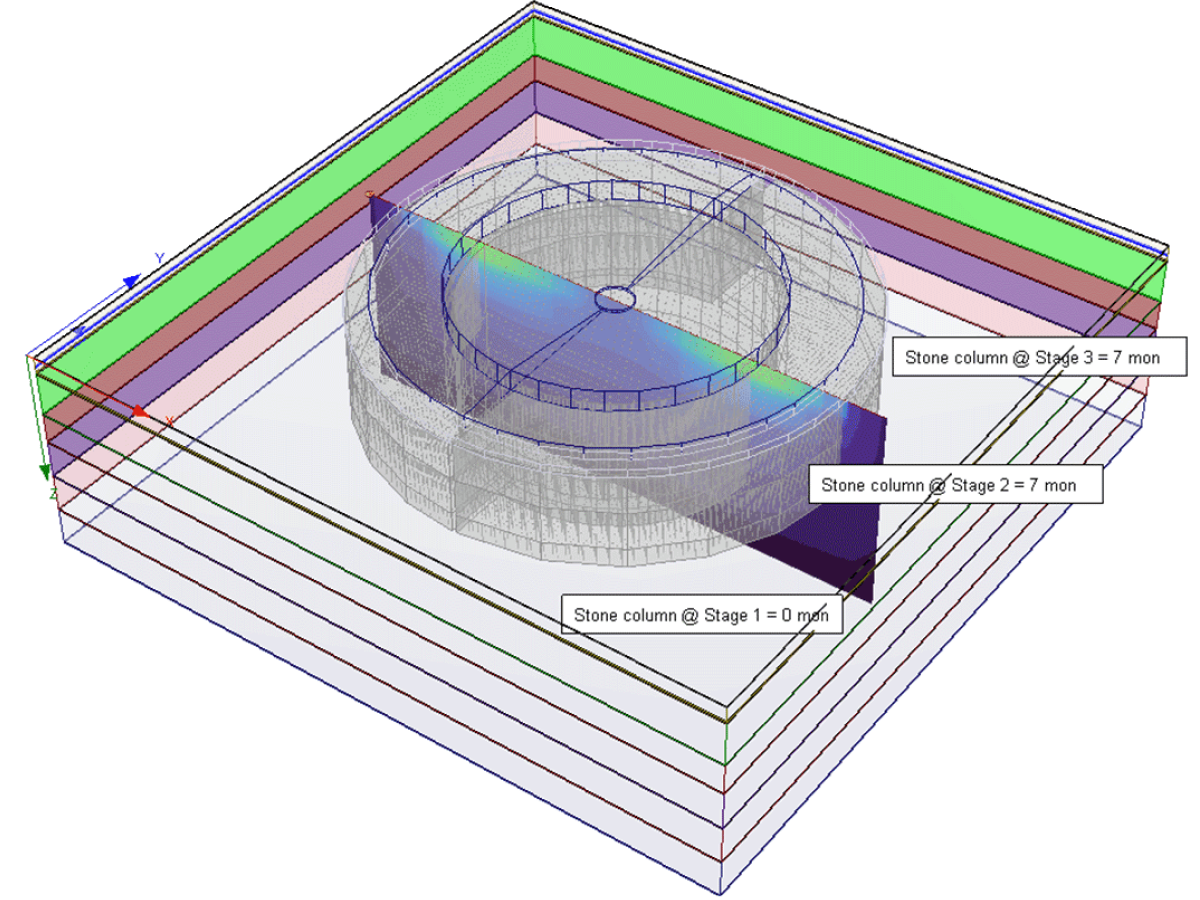

Evaluate ground improvement strategies such as soil replacement, dynamic compaction, vibro-compaction, and stone columns with flexible staging, depth, and spacing options.

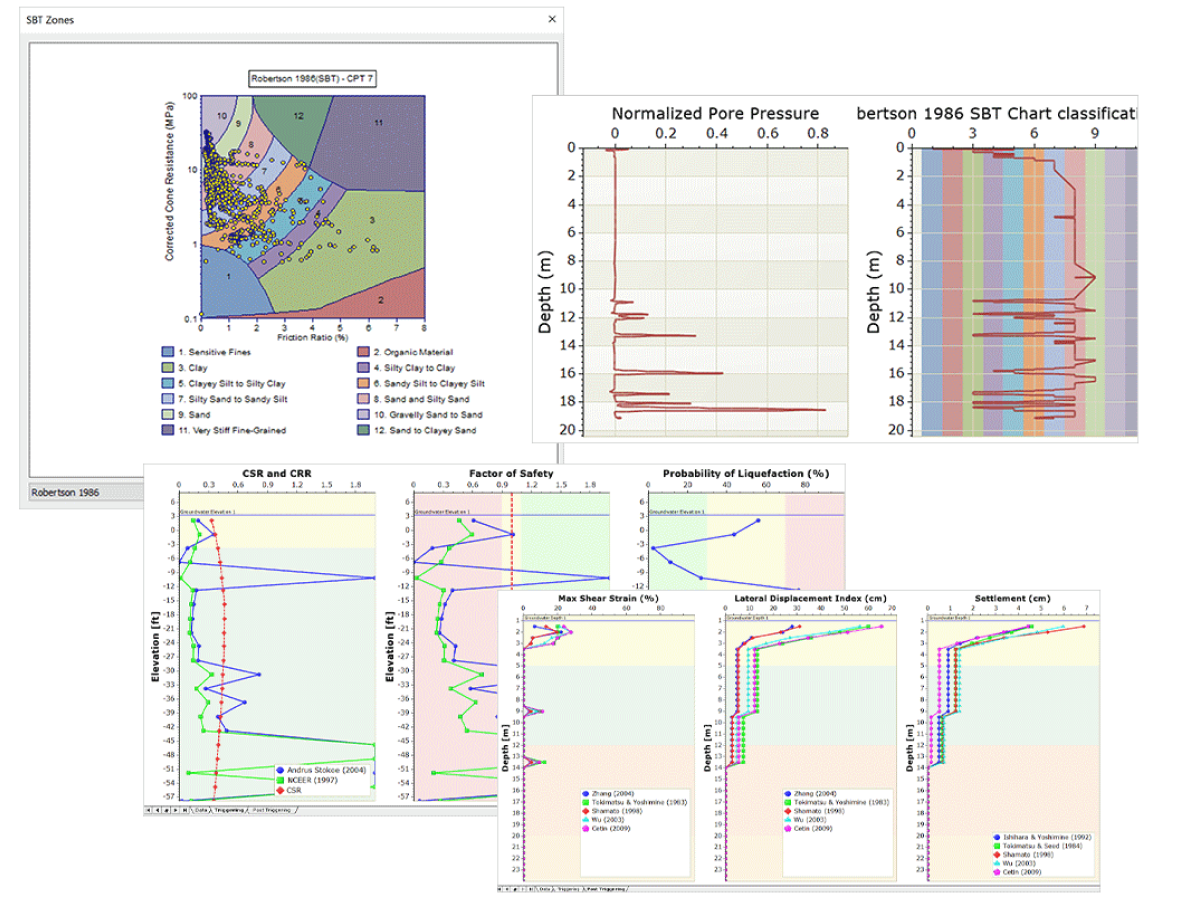

Use SPT, CPT, or VST data to assess settlement behaviour and liquefaction potential, including post‑liquefaction effects, to optimize foundation performance.
Explore results in 2D and 3D with Settle3 and RSPile, review contours, time histories, and query points, and easily communicate performance to stakeholders. Seamless workflows between RSLog, Settle3, and RSPile help you move from site data to design decisions without losing fidelity.
