Sampling

The Sampling options in the Project Settings dialog allow you to choose:

  • Sampling Method
  • Number of Samples

for a Probabilistic Analysis in UnWedge.

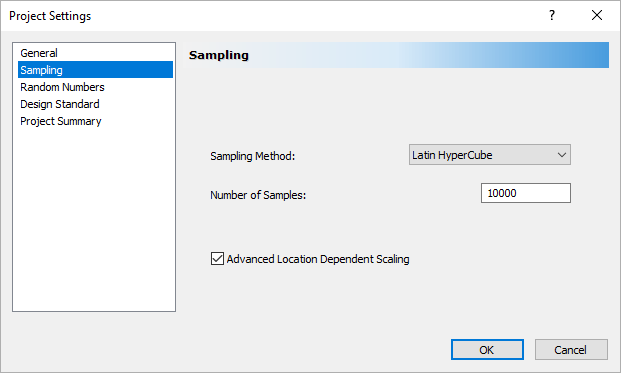

Project Settings Sampling Dialog

Sampling Method

The Sampling Method determines how the statistical input distributions for the Random Variables you have defined will be sampled.

Two sampling methods are available in UnWedge:

  • Monte Carlo
  • Latin Hypercube

NOTE: For both sampling methods, sequences of random numbers are utilized to generate the random samples. The generation of random numbers in UnWedge is controlled by the Random Numbers option in the Project Settings dialog.

Monte Carlo Method

The Monte Carlo sampling technique uses random numbers to sample from the input data probability distributions. Monte Carlo techniques are commonly applied to a wide variety of problems involving random behavior in geotechnical engineering.

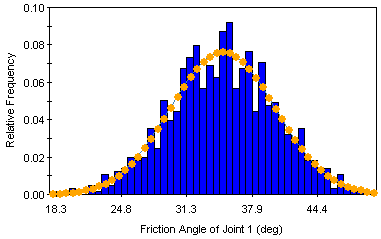

Monte Carlo Histogram

Monte Carlo sampling of Normal distribution (1000 samples)

Latin Hypercube Method

The Latin Hypercube sampling technique gives comparable results to the Monte Carlo technique, but with fewer samples [Iman et. al. (1980), Startzman et. al. (1985)]. The method is based upon "stratified" sampling with random selection within each stratum. This results in a smoother sampling of the probability distributions. Typically, an analysis using 1000 samples obtained by the Latin Hypercube technique will produce comparable results to an analysis of 5000 samples using the Monte Carlo method [Hoek et. al. (1995)].

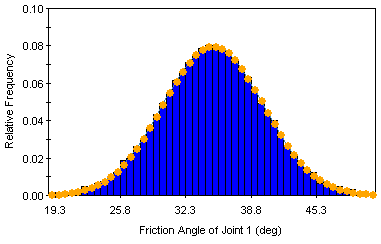

Latin Hypercube Histogram

Latin Hypercube sampling of Normal distribution (1000 samples)

Number of Samples

The Number of Samples which will be generated for each Random Variable, for a Probabilistic Analysis. For example, if Number of Samples = 1000, then 1000 values of each input data random variable (e.g., Friction Angle of Joint 1) will be generated, according to the Sampling Method and statistical distribution for each random variable. The analysis will then be run 1000 times, and factors of safety will be calculated for each wedge, for each wedge arrangement, for each set of input data samples. This results in a distribution of Factor of Safety's for each wedge, from which the Probabilities of Failure (PF) are calculated.

Advanced Location Dependent Scaling

The Sampling tab also has an Advanced Location Dependent Scaling checkbox. For more information about this checkbox see the Advanced Location Dependent Scaling topic.
