12 - Automate Deterministic Analysis

This tutorial will familiarize you with the Automate Compute feature of SWedge by automating an SWedge Deterministic analysis.

Topics Covered in this Tutorial:

  • Deterministic Analysis SWedge Model
  • Input Excel File Format
  • Adding Input Excel File(s) to Automate Compute File Queue
  • Output SWedge Automate Compute Results File
  • SWedge Automate Compute Error Log

Finished Product:

The finished products of this tutorial can be found in the Tutorial 12 Automate Compute - Deterministic Analysis folder, located in the Examples > Tutorials folder in your SWedge installation folder. Inside, you will find:

  • Tutorial 12 Automate Compute - Deterministic_base file.swd7 SWedge model file setup for automation
  • Tutorial 12 Automate Compute - Deterministic_inputs.xlsx Excel input file
  • Tutorial 12 Automate Compute - Deterministic_inputs folder containing the computed results files

1.0 Introduction

The Automate Compute option helps users quickly generate results for several SWedge analysis cases at a time by reading in various model inputs from Excel. In this tutorial, we will automate the computation of three unique Deterministic cases (i.e., three wedges).

2.0 Creating a New File

If you have not already done so, run the SWedge program by double-clicking the SWedge icon in your installation folder or by selecting Programs > Rocscience > SWedge > SWedge in the Windows Start menu.

When the program starts, a default model is automatically created. If you do NOT see a model on your screen:

Select: File > New

Whenever a new file is created, the default input data forms valid slope geometry, as shown in the image below.

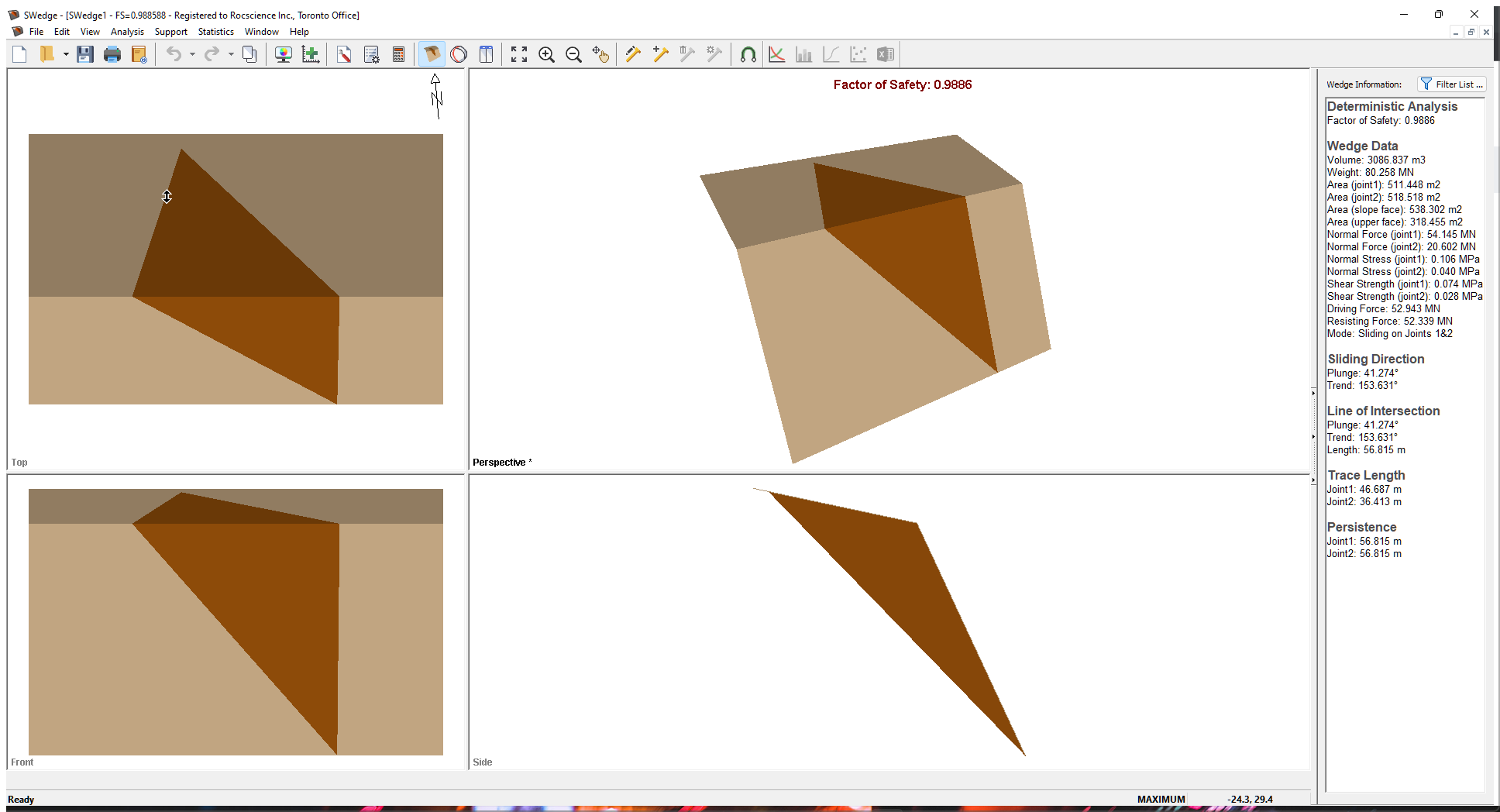

Default SWedge model forming valid slope geometry

If the SWedge application window is not already maximized, maximize it now so that the full screen is available for viewing the model.

Before we are ready to run Automate Compute, we must first set up the model environment in the following dialogs:

  1. Project Settings
  2. Input Data
  3. Scale Wedge

NOTE: This SWedge model file is meant to be used as a base file for automation. It contains the appropriate settings to be used for all automated cases and the engine for computation. It is not meant to be used for model creation and result viewing, as it does not save the model state for every case.

3.0 Project Settings

First, set the model Units, Analysis Type, and Block Shape.

  1. Select Project Settings from the Analysis menu to open the Project Settings dialog.
  2. Set the Units = Metric, stress as MPa
  3. Set the Analysis Type = Deterministic
  4. Set the Block Shape = Wedge

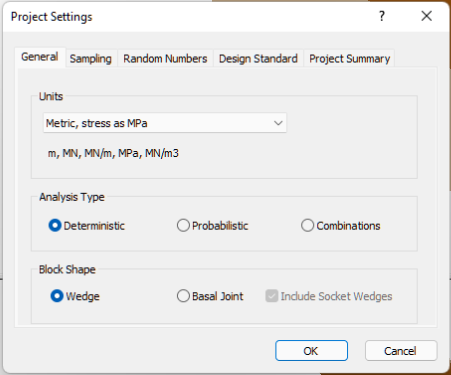

  5.  Project Settings dialog

  6. Select OK to close the dialog.

NOTE: The above Project Settings will apply to all cases analyzed in Automate Compute. Each case being analyzed is Deterministic (i.e., a single wedge, as defined) in this case.

4.0 Input Data

Next, set the optional input data.

  1. Select Input Data from the Analysis menu to open the Deterministic Input Data dialog.
  2. Open the Slope tab.
    We will keep all the check box controls in the default state. Keep in mind that the following are required input parameters that have to be specified later on in the Input Excel File:
    • Slope Dip
    • Slope Dip Direction
    • Slope Height
    • Upper Face Dip
    • Upper Face Dip Direction
    • Rock Unit Weight

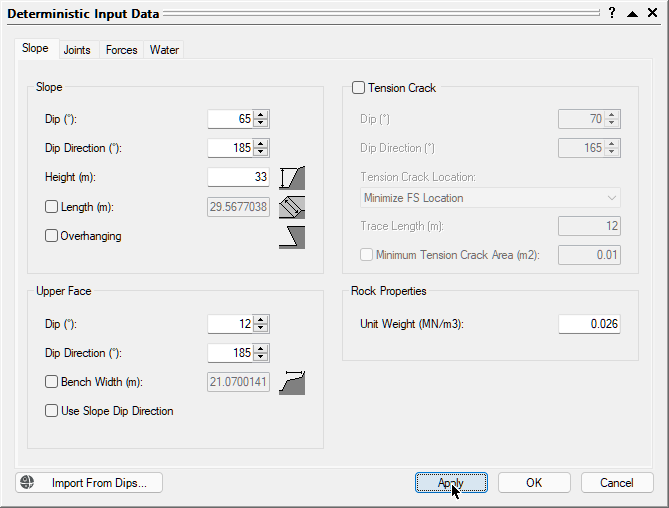

  3. Deterministic Input Data dialog

  4. Open the Joints tab.
  5. Set Joint 1 Shear Strength Model = Mohr-Coulomb
  6. Set Joint 2 Shear Strength Model = Mohr-Coulomb
  7. We will keep all the check box and combo box controls in the default state. Keep in mind that the following are required input parameters that have to be specified later on in the Input Excel File:

    • Joint 1 Dip
    • Joint 1 Dip Direction
    • Joint 1 Waviness
    • Joint 1 Cohesion
    • Joint 1 Friction Angle
    • Joint 2 Dip
    • Joint 2 Dip Direction
    • Joint 2 Waviness
    • Joint 2 Cohesion
    • Joint 2 Friction Angle

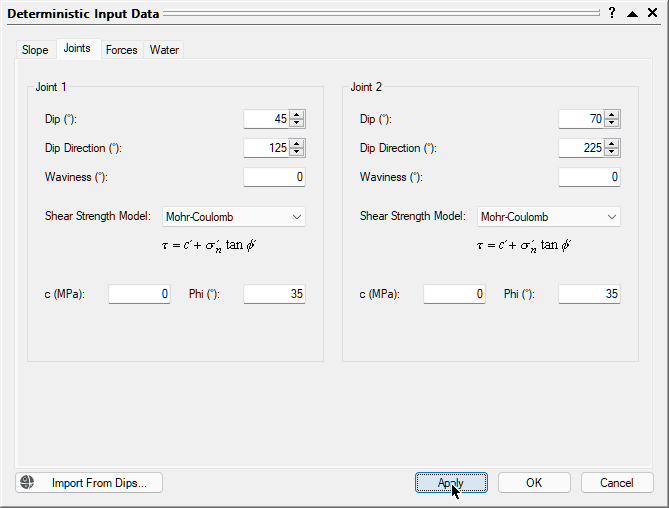

    Deterministic Input Data joints dialog

  8. Open the Forces tab.
  9. We will leave all the check box controls in the default state (unchecked). No input parameters are required since no Seismic or External Forces are applied.

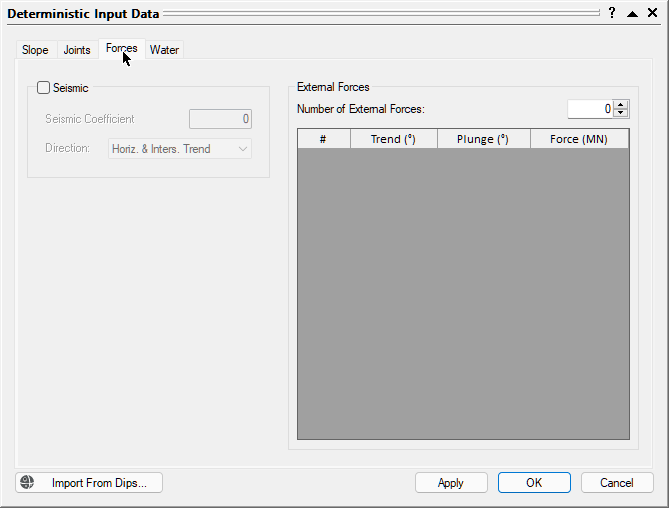

    Deterministic Input Data forces dialog

  10. Open the Water tab.

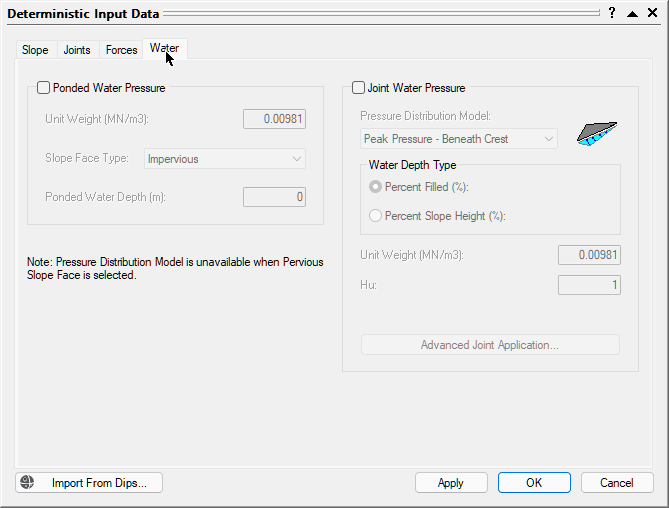

  11. We will leave all the check box controls in the default state (unchecked). No input parameters are required since no Ponded Water Pressure or Joint Water Pressure are applied.

    Deterministic Input Data joint water pressure dialog

  12. Select OK to close the dialog.

NOTE: You can learn about SWedge input data in detail in Overview of SWedge Input Data.

5.0 Input Excel File

Now, let's take a look at the structure of the input Excel file.

  1. Obtain the SWedge Deterministic Excel Template by selecting Analysis > Automate Compute > Deterministic Excel Template from the menu.

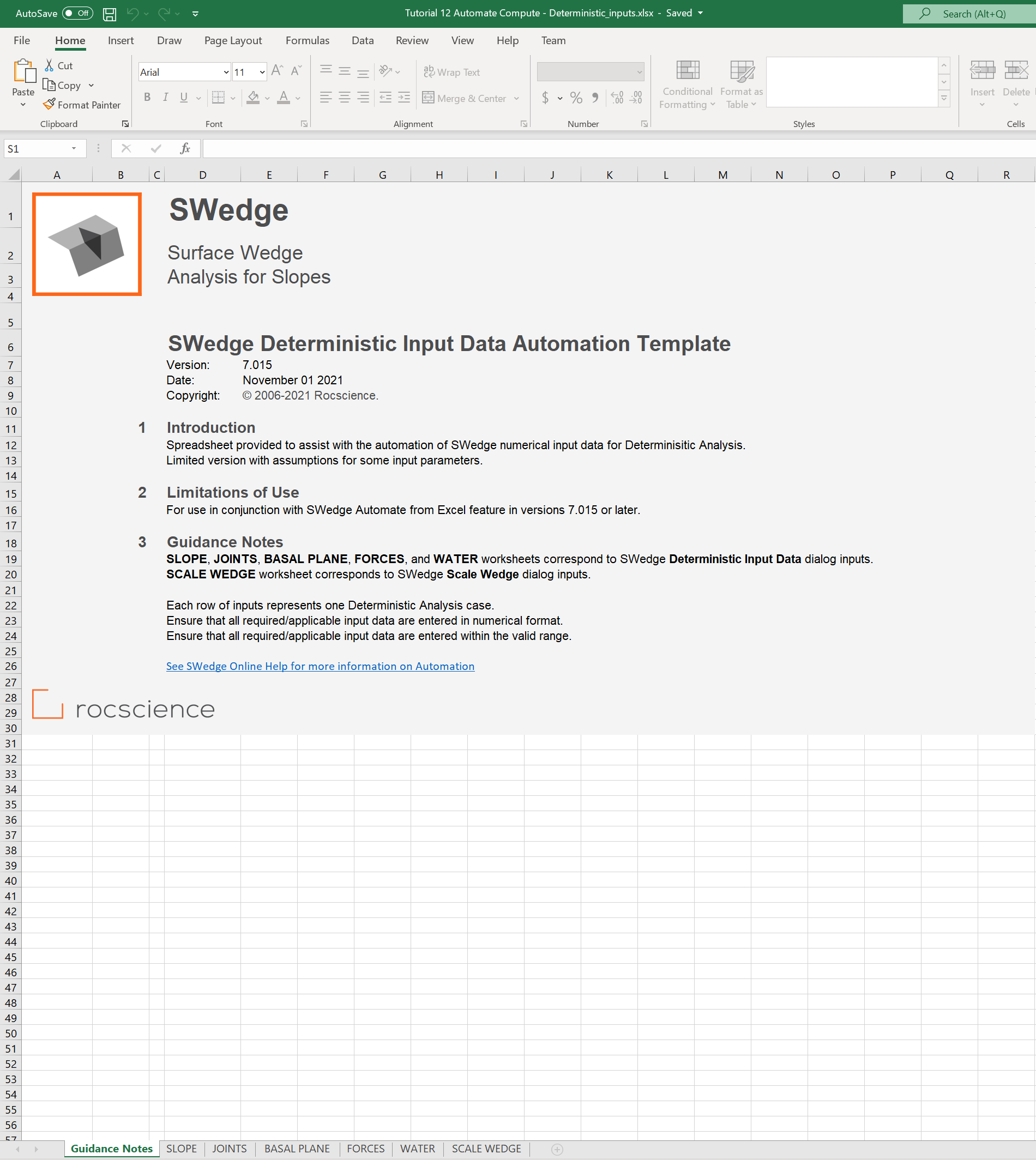

  2. A Read-Only Excel workbook titled SWedge Automation Template_Deterministic.xlsx will be automatically opened (if you have Excel installed on your local machine).

    Deterministic Excel Template

    The SWedge Deterministic Input Data Automation Template Excel workbook and worksheets are protected to prevent any accidental modification to the tab structure and headers. The input Excel template contains six worksheets for inputting numerical parameters for automation.

  3. Create a folder called Tutorial 12 Automate Compute - Deterministic.
  4. Navigate to the SLOPE worksheet.
  5. Under the Wedge ID column, provide the names of the wedges. We will name them arbitrarily Wedge A, Wedge B, and Wedge C. Each row in the input Excel file represents one Deterministic Analysis case in SWedge.
  6. Enter the following:
  7. Wedge ID

    Slope

    Upper Face

    Rock Properties

    Dip

    Dip Direction

    Height

    Dip

    Dip Direction

    Unit Weight

    Wedge A

    65

    185

    33

    12

    185

    0.026

    Wedge B

    60

    185

    30

    0

    180

    0.027

    Wedge C

    70

    180

    10

    20

    180

    0.025

    NOTE: As set up previously in the SWedge Deterministic Input Data dialog, only the above input data are required since Slope Length, Bench Width, and Tension Crack are not applicable (i.e., check box controls are unchecked). Be aware of units set in SWedge Project Settings when entering data into the input Excel file. The units should be the same for both!

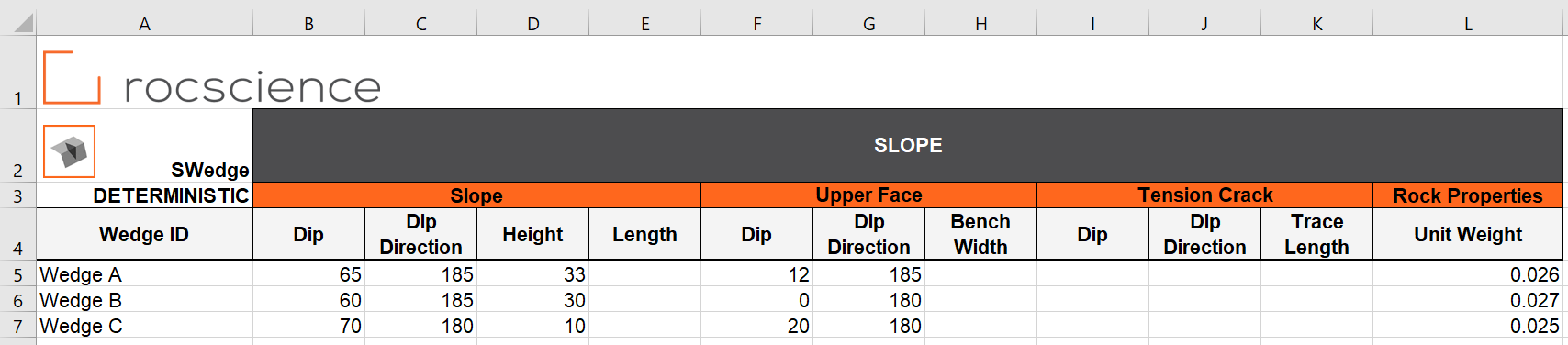

    The SLOPE worksheet should look like this:

    Slope worksheet

  8. Navigate to the JOINTS worksheet.
  9. Under the Wedge ID column, provide the names of the wedges (Wedge A, Wedge B, and Wedge C ).
  10. Enter the following:
  11. Wedge ID

    Joint 1

    Dip

    Dip Direction

    Waviness

    C

    Phi

    Wedge A

    45

    125

    0

    0

    35

    Wedge B

    30

    120

    0

    0.1

    30

    Wedge C

    40

    120

    0

    0.1

    25

    Wedge ID

    Joint 2

    Dip

    Dip Direction

    Waviness

    C

    Phi

    Wedge A

    70

    225

    0

    0

    35

    Wedge B

    66

    225

    0

    0

    35

    Wedge C

    60

    225

    0

    0

    35

    NOTE: As set up previously in the SWedge Deterministic Input Data dialog, only the above input data are required since other Shear Strength Model parameters (i.e., Barton-Bandis, Power Curve) are not applicable. Be aware of units set in SWedge Project Settings when entering data into the input Excel file. The units should be the same for both!

    The JOINTS worksheet should look like this:

    Joints worksheet

    We do not need to enter any data in the BASAL PLANE, FORCES, WATER, or SCALE WEDGE worksheets since those are not applicable.

  12. Save the Excel file as Tutorial 12 Automate Compute - Deterministic_inputs.xlsx to the Tutorial 12 Automate Compute - Deterministic folder previously created.

NOTE: Since the SWedge Automation Template_Deterministic.xlsx file is Read-Only, you must rename and save in a new location.

We are now ready to automate computations in SWedge by reading from the input Excel file.

6.0 Automate from Excel

Return to the SWedge model.

The Automate Compute dialog allows you to add Excel input automation files to the queue, select an output format, and compute the results.

6.1 ADD FILES TO THE FILE QUEUE

To add multiple files to the File Queue:

  1. Select Automate from Excel from the Analysis menu to open the Automated Compute dialog.

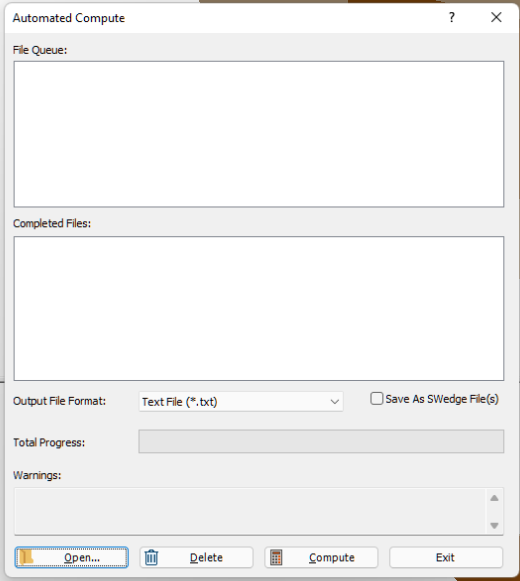

    Automate from Excel
  2. Select the Open button to open a standard dialog to choose an Excel input file.
  3. Navigate to the Tutorial 12 Automate Compute - Deterministic folder and select the Tutorial 12 Automate Compute - Deterministic_inputs.xlsx file.

You will see the Excel input file appear under the File Queue list box.

File Queue list box

7.0 Output Result Files

Results files are automatically generated and saved into the same directory as the input Excel file after Automated Compute is complete. Before we run Compute, first ensure that the Output File Format is set to the desired format. Users can select from either Text File or Excel format.

7.1 TEXT FILE FORMAT

While still in the Automated Compute dialog:

  1. Set the Output File Format dropdown to Text File.
  2. Select the Compute button to start the automated computing process.
  3. The Total Progress can be seen at the bottom of the dialog. When files have finished computing, they will appear in the Completed Files list box.

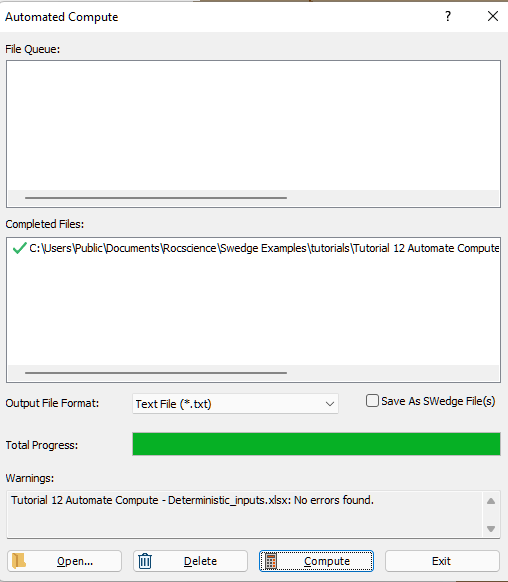

    Text File outpt format

  4. When all files have finished computing, select Exit to close the dialog.

For each input Excel file, a text file (.txt) containing all results data is generated.

For a Deterministic Analysis (Tutorial 12 Automate Compute - Deterministic_inputs.xlsx), the results data for all cases are outputted following the header row. Each row of data represents one analysis case (i.e., one wedge). Each data type is separated by a comma (,) for easy parsing.

  • Take a look at the Results.txt result file.

Deterministic Analysis

7.2 EXCEL FILE FORMAT

Now, we will do the same as before, but this time we will generate the results as an Excel output file format.

  1. Select Automate from Excel from the Analysis menu to open the Automated Compute dialog.
  2. Select the Open button to open a standard dialog to choose an Excel input file.
  3. Navigate to the Tutorial 12 Automate Compute - Deterministic folder and select the Tutorial 12 Automate Compute - Deterministic.xlsx file.
  4. You will see the Excel input file appear under the File Queue list box.

  5. Set the Output File Format dropdown to Excel.
    Excel Output File Format
  6. Select the Compute button to start the automated computing process.
  7. When all files have finished computing, select Exit to close the dialog.

For each input Excel file, an Excel file (.xlsx) containing all results data is generated.

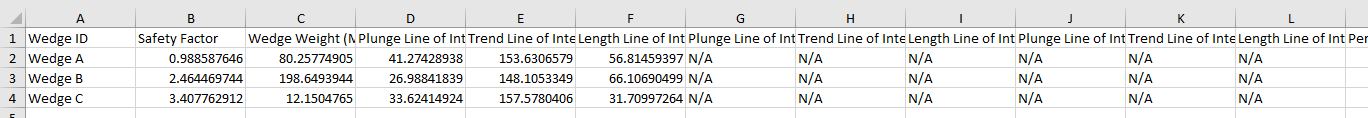

For a Deterministic Analysis (Tutorial 12 Automate Compute - Deterministic.xlsx), the results data for all cases are outputted following the header row. Each row of data represents one analysis case (i.e., one wedge). Each data type is separated by column.

  • Take a look at the Results.xlsx result file.

Deterministic Analysis

8.0 Error Log

As you may have noticed, an Error Log is also generated for each input Excel file. For each input Excel file, an Error Log text file (Automate Compute Error Log.txt) is generated and saved into the same directory as the output file directories. Always check that the Error Log reports "No errors found" before post-processing the raw results data. If any errors do occur as a result of missing (i.e., blank cells) or invalid inputs, the Error Log will indicate which worksheet(s) and cell(s) are problematic.

This concludes the tutorial.
