21 - Rapid CPT Data Import

1.0 Introduction

In Settle3, Rapid CPT data import allows users to import multiple CPT data from data forensics. After entering Log-in information from the database, users can import multiple CPT from the cloud server and import multiple CPT data in Settle3. These CPT data can be used to analyze multiple CPT analysis, and plot soil profile as well as SBT (Soil Behavior Type) graph.

In this tutorial, we will show how this procedure is made by importing the data from data forensics. If you do not have access to the cloud server, you can still follow our tutorial with the files in the tutorial folder which contains .txt file.

Topics Covered in this Tutorial:

  • CPT analysis
  • Multiple CPT Data import
  • Multiple CPT data analysis

Finished file:

The finished file of this tutorial can be found in the Tutorial 21 Rapid CPT Data Import.s3z file. All tutorial files installed with Settle3 can be accessed by selecting File > Recent Folders > Tutorials Folder from the Settle3 main menu.

2.0 Model

2.1 Project Settings

  1. Select Analysis > Project Settings (CTRL + J) to open the Project settings icon Project Settings dialog.
  2. In the General tab, make sure the Units are set as default setting: Metric, stress as kPa.
  3. In the Cone Penetration Test (CPT) tab, make sure to select the CPT Analysis. We will use the Robertson 1986 CPT Classification with default values for atmospheric pressure (kPa), Net Area Ratio, and Cone Factor.

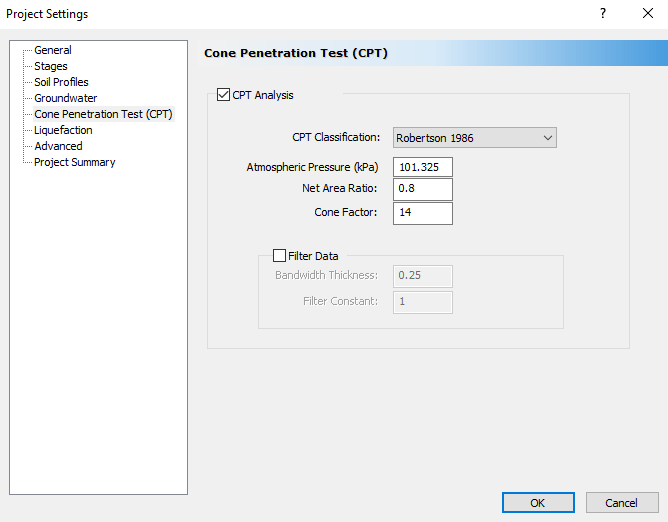

    Project Settings Dialog - CPT Tab
    Select OK.

3.0 Import Multiple CPT Data from Data Forensics

We will now import multiple CPT data from data forensics.

  1. Select: Soils > CPT > Edit CPT.
  2. Add multiple CPT by selecting the Import Data Using Rapid CPT button at the bottom left.
    Importing Data fUsing Rapid CPT
  3. You will be prompted with log-in information for Data forensics. Enter your credentials below:
    Dataforensics Login Page
  4. If you do not have login information for Dataforensics Rapid CTP, we will simulate the process for this tutorial purposes.
    Please enter Username: tutorial, Password: tutorial.
  5. Import the three .ECP extension files after logging in with credentials: A01Y003C, A01Y004C, and A16Y068. These files are available in the same location where the tutorial folder is saved. The dialog should show the imported data as shown below.

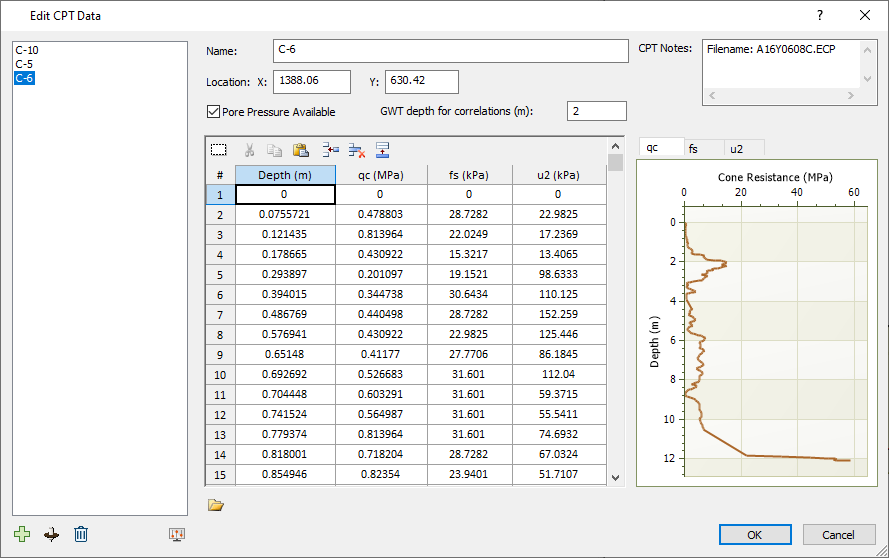

    Edit CPT Data Dialog
    Note: You will notice that the location coordinates are very large in values. We suggest you to change these three coordinates closer to origin (0,0) coordinates. For example, these coordinates are recreated by cutting off first three digits of the large coordinates. Edit the coordinates for the CPT data as the following:
    C-5: (X = 1346.56, Y = 380.52)
    C-10: (X = 1288.06, Y = 530.42)
    C-6: (X = 1388.06, Y = 630.42)

    Otherwise, if you keep the values as they are, you will get a warning message for large coordinates for importing those coordinates due to issues in displaying the model on 2D and 3D views with large coordinates.
  6. Double check that location X,Y are shown for all the data, and that graphs qc and fs are correctly imported. Keep the default values for GWT depth for correction as 2m and select OK.
  7. Press F2 to zoom out. You will see the three CPT data imported in the modeler.

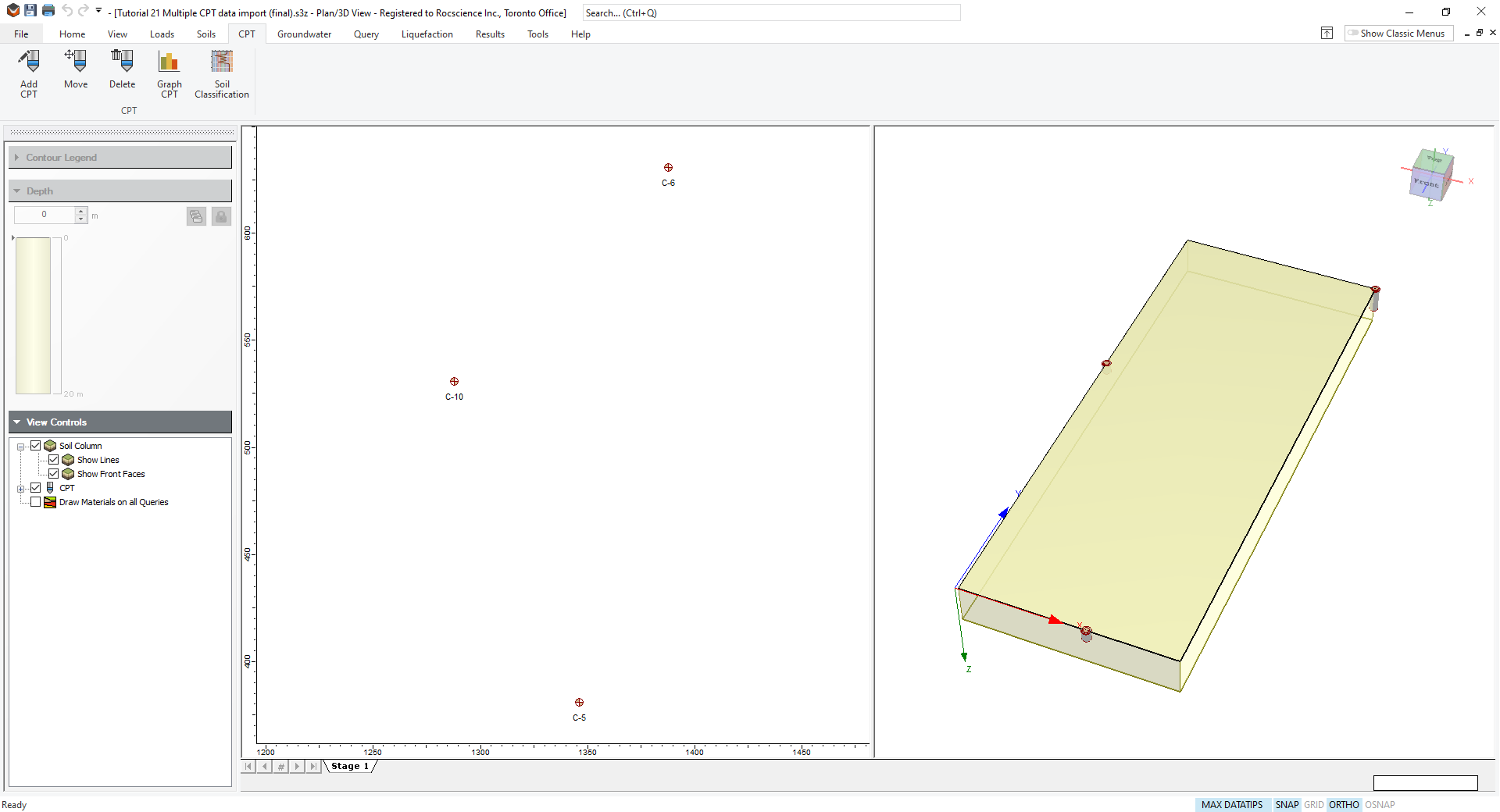

    Model View of CPT Data

4.0 CPT Analysis Result

After multiple CPT data are imported, you can check the CPT analysis for each data by right clicking on the data and selecting Graph CPT.

Graph CPT


When you graph CPT plot, you will see the result as shown below for the first data.

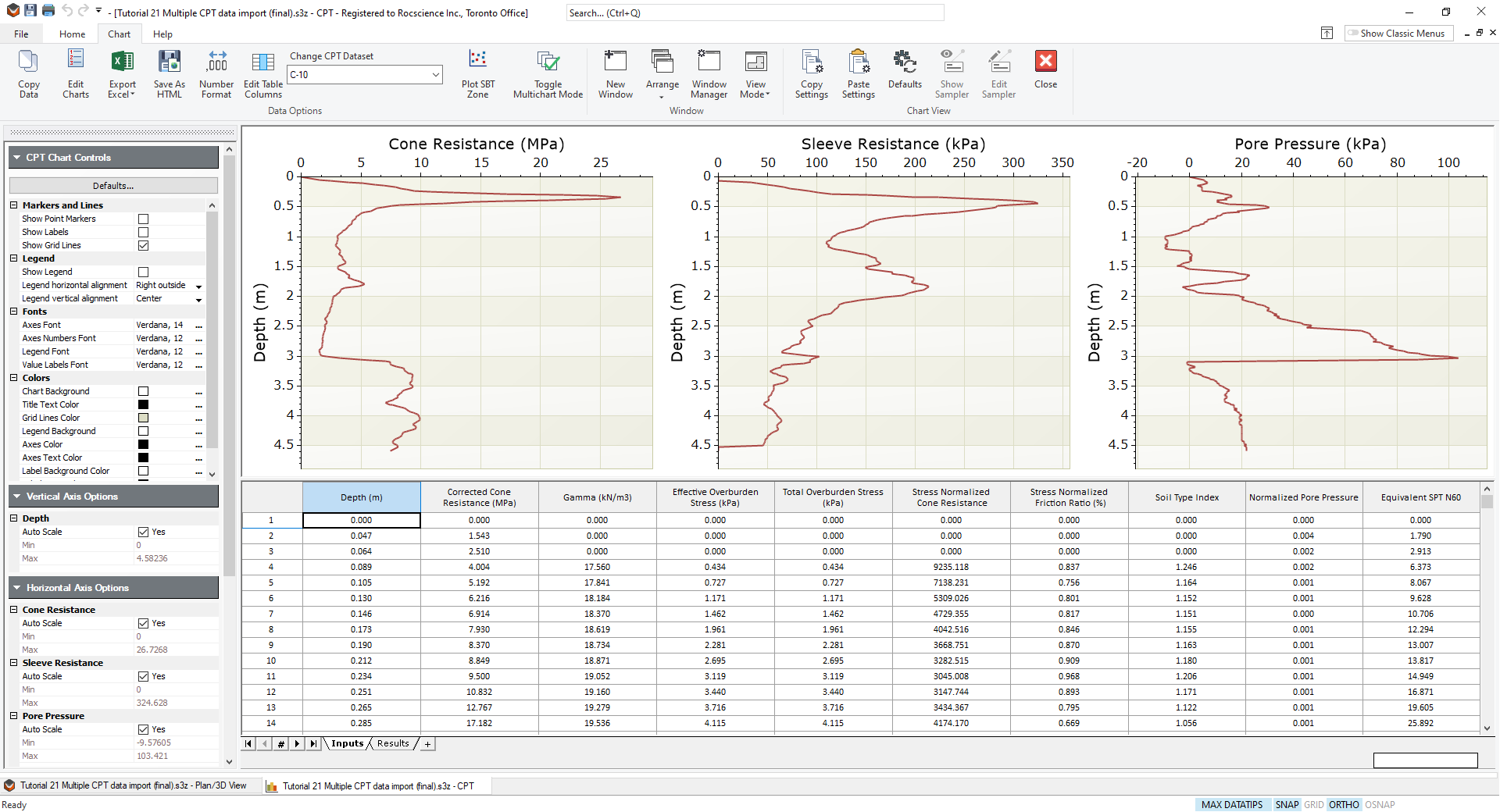

Plot of CPT Data

Click the multi-chart option right beside the drop down menu to select different CPT data.

Then you will be able to see the results for all three data imported in one plot.

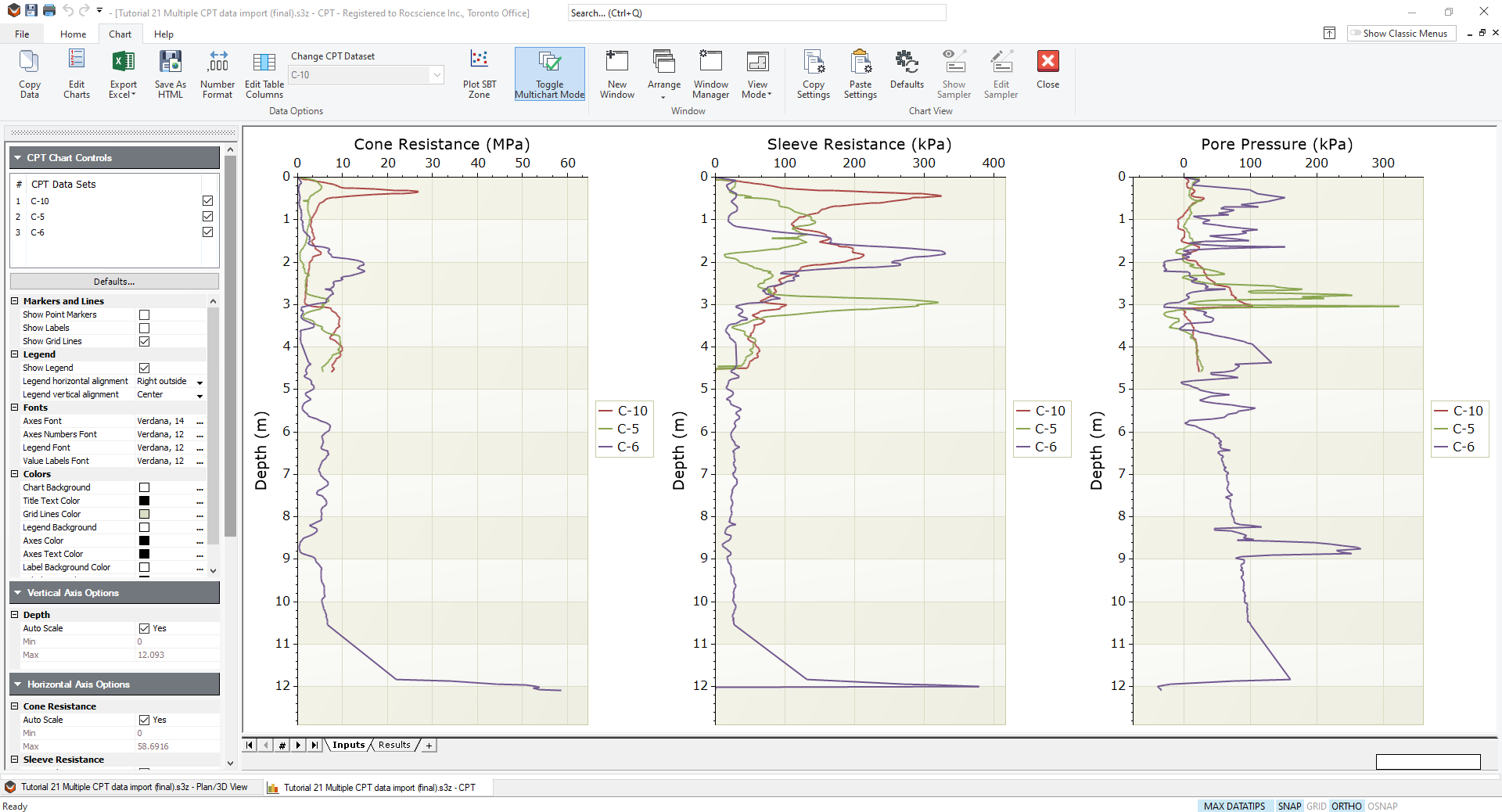

CPT Data in One Plot

You can also see the SBT (Soil behavior Type) zone by selecting the plot SBT zone.

Plot SBT Zone

Then you will be able to see the SBT zone for the CPT data as shown below. You can toggle different method to see how this changes within the dialog.

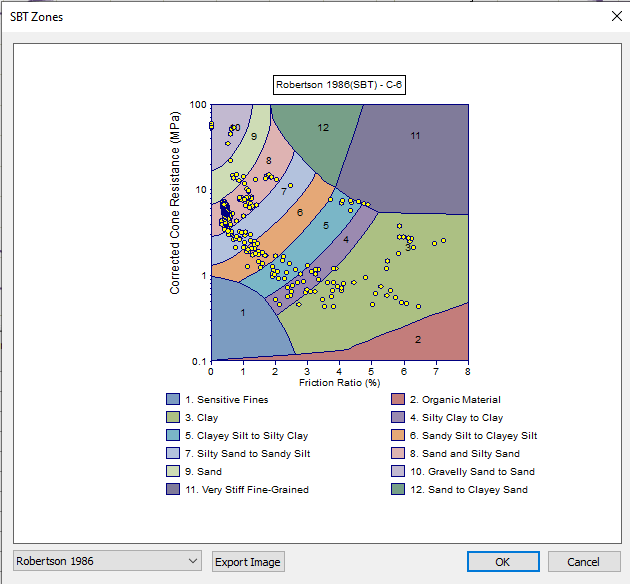

SBT Zones Dialog

5.0 Soil Profile

This feature also allows you to see the soil classification for delta size (m) of soil depth. Go back to the modeler and right click and select Soil Profile as shown below.

Soil Profile From CPT

Then you will be able to see the soil classification with % for depth of soil defined as shown below for imported CPT data C-6:

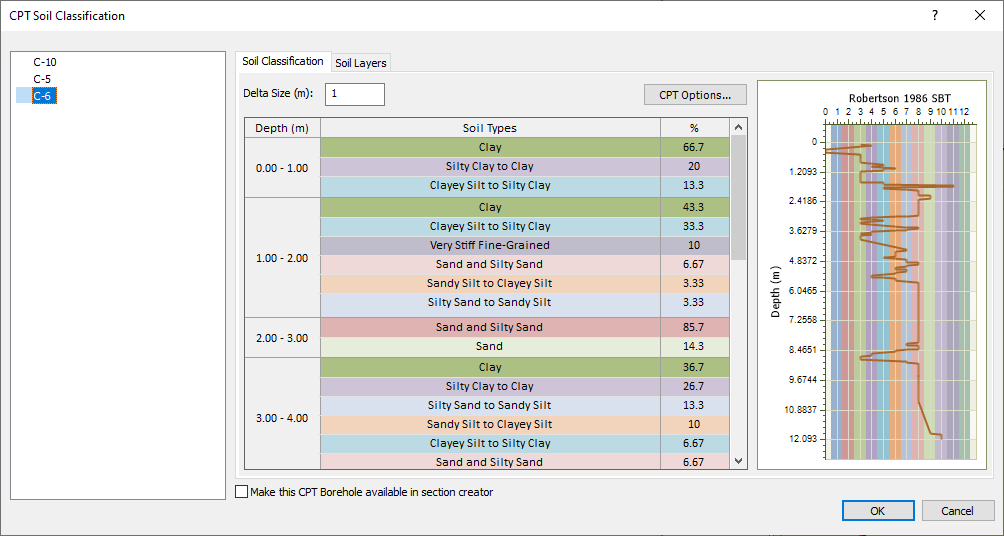

CPT Soil Profile Dialog

Select Next to see the soil profile with layer depth as overall layout of the soil layer column.

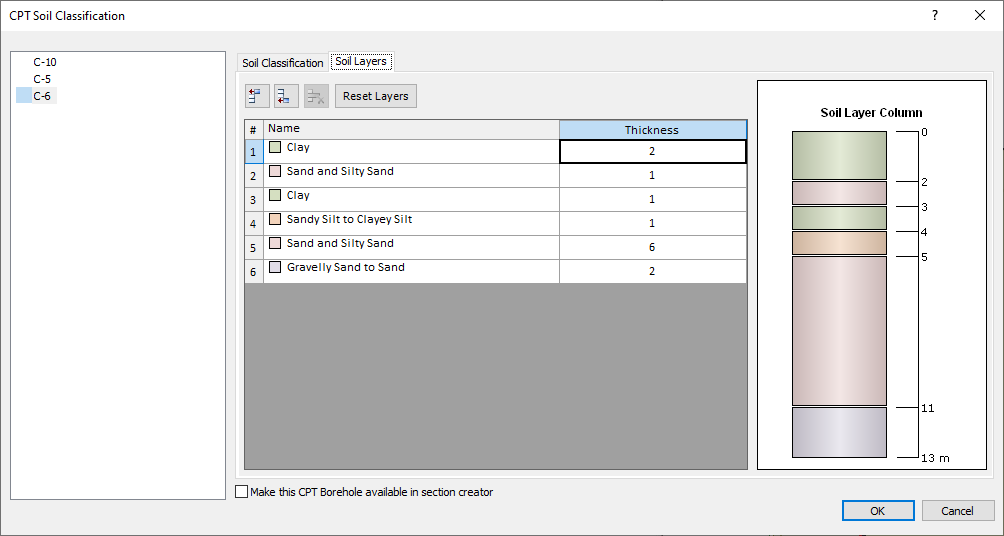

CPT Soil Profile Dialog

Select OK to close the dialog.

Note: this is soil profile for the CPT data. This is not incorporated in borehole soil layer.
