12 - Liquefaction Analysis

1.0 Introduction

Topics Covered in this Tutorial:

  • Liquefaction input data

  • Liquefaction analysis options

  • Graphing liquefaction results

Finished Product:

The finished product of this tutorial can be found in the Tutorial 12 Liquefaction Analysis.s3z file. All tutorial files installed with Settle3 can be accessed by selecting File > Recent Folders > Tutorials Folder from the Settle3 main menu.

2.0 Model Setup


Start the Settle3 program

2.1 Project Settings

Open the Project Settings dialog from the Analysis menu.

Project Settings icon Select: Analysis > Project Settings

  1. Keep the default Stress unit = Metric, stress as kPa and Settlement = Millimeters as shown.

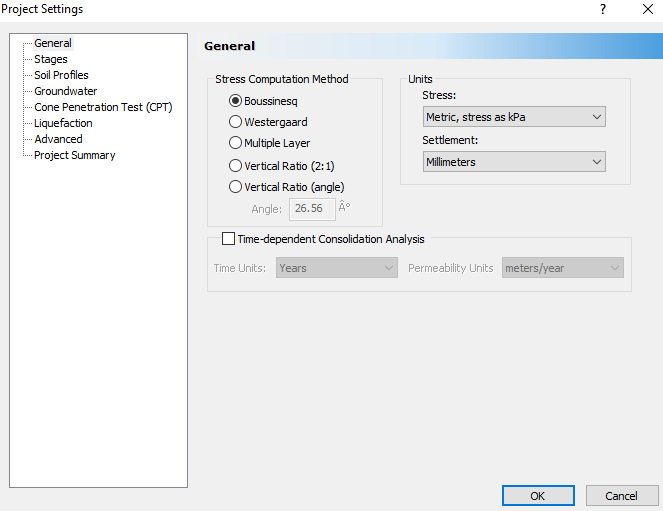

Project Settings dialog - General tab

  1. Click on the Liquefaction tab. Turn Liquefaction on. A dialog will pop up indicating that the Groundwater option will be turned on, since it is required for liquefaction analyses. Click OK.

  2. Select Soil Profiles. Select 'Depth below Ground surface' option.

  3. Leave the Insitu Data as Standard Penetration Test (SPT).

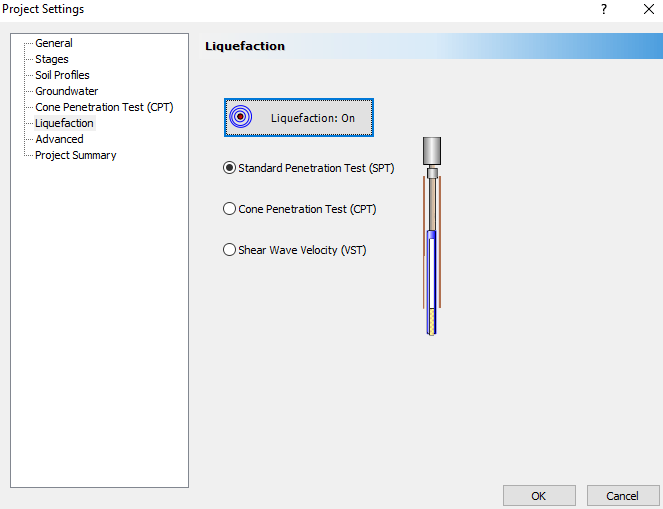

Project Settings dialog - Liquefaction tab

  1. Click OK to close the dialog.

2.2 Soil Properties

A liquefaction analysis can be run independent of the total settlement analysis. In this tutorial we will use four different materials to illustrate the graphing options, but we will keep the default material properties for each.

Liquefaction icon Select: Liquefaction > Options

A dialog will pop up. Go to the Materials tab from the left hand side. In this tab you can specify Fines Content (%) and D50 (mm) values. There is also a Prone to Liquefaction checkbox which indicates whether or not to include the layer in the liquefaction calculations. We will keep the default values for all layers in this tutorial.

Click OK to close the dialog.

2.3 Soil Layers

Soil Layers icon Select: Soils > Soil Layers

  1. Click on Insert Layer Below three times. The layers will fill in with the correct names automatically.

  2. Specify the following layers:

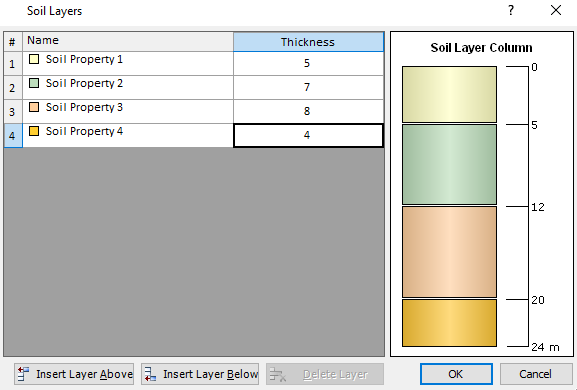

Soil Layers dialog

  1. Click OK to close the dialog.

2.4 Groundwater Input Data

  1. Select Add Piezometric Line from the Groundwater menu.

  2. In the dialog box that appears, set Depth (m) = 1 and press Enter.

  3. Select the four material types used, and click OK.

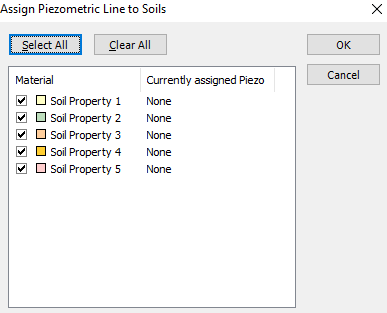

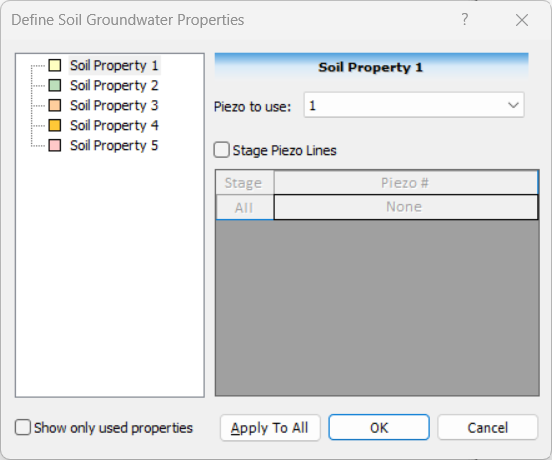

Assign Piezometric Line to Soils dialog

3.0 Liquefaction Analysis


Now that we have defined the soil strata we will enter the input required for the liquefaction analysis.

3.1 Input Data

Select Options from the Liquefaction menu and the Liquefaction Options dialog will pop up. Note that this dialog is tailored to the Insitu Data type selected in the Project Settings.

In the General tab, we will use the default earthquake data:

      • Max. Earthquake Acceleration = 0.5g

      • Earthquake Magnitude = 7.5

      • Slope Angle = 0 degrees

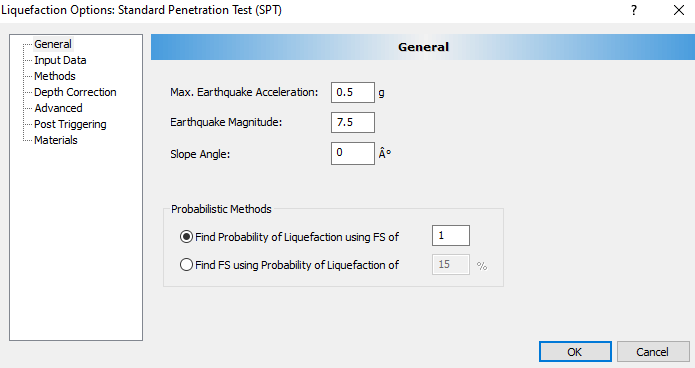

Liquefaction Options: Standard Penetration Test dialog

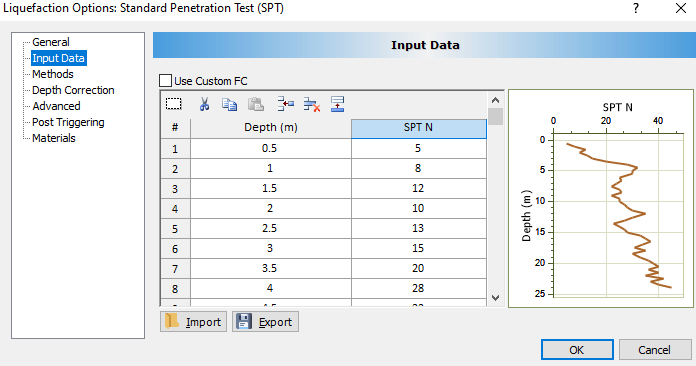

Go to the Input Data tab and enter the depth and SPT data shown in the table. You have the option to use custom fines content. We will not use that option in this tutorial.

Depth (m)

SPT (N)

Depth (m)

SPT (N)

0.5

5

12.5

30

1

8

13

27

1.5

12

13.5

23

2

10

14

25

2.5

13

14.5

27

3

15

15

28

3.5

20

15.5

33

4

28

16

35

4.5

32

16.5

37

5

30

17

34

5.5

30

17.5

31

6

25

18

35

6.5

26

18.5

30

7

24

19

33

7.5

22

19.5

36

8

25

20

38

8.5

26

20.5

40

9

22

21

36

9.5

25

21.5

40

10

25

22

35

10.5

27

22.5

42

11

28

23

37

11.5

30

23.5

40

12

35

24

45

Note: Rather than typing in the values, you can also import your set of SPT data from a .lfn file, or you can copy and paste into the dialog.

The dialog should appear as below:

Liquefaction Options: Standard Penetration Test dialog

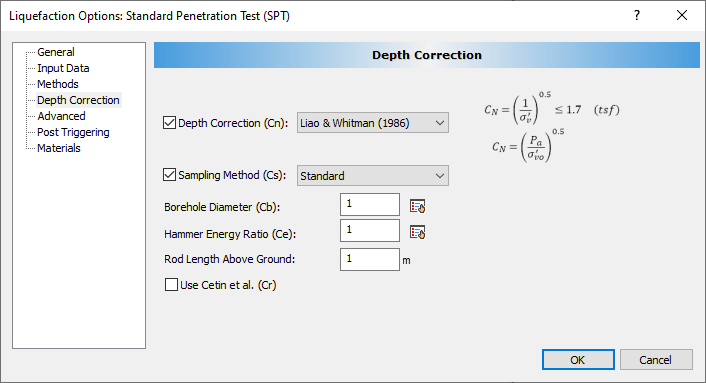

Depth Correction tab, you specify the sampling method used as well as the depth correction method to use.

Correction factors are also provided for Borehole Diameter (Cb) and Hammer Energy Ratio (Ce). Click on the icons beside each factor and a dialog of typical values for each factor will pop up.

If you select Use Cetin et al. (Cr), the Rod Length Above Ground input will be greyed out.

For this tutorial, click on the Depth Correction (Cn) and Sampling Method (Cs) checkboxes. Click on the dropdown menus to see the numerous methods that are available. In this example, we will use the default methods.

Liquefaction Options: Standard Penetration Test dialog

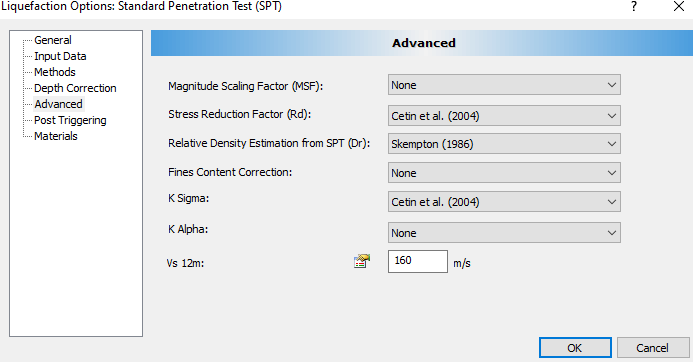

In the Advanced tab, the remainder of the scaling factors are selected. Select the scaling factors to match those shown in the picture below.

Liquefaction Options: Standard Penetration Test dialog

Click OK to close the dialog box.

3.2 Liquefaction Analysis Options

Select Analysis Options from the Liquefaction menu. In the dialog that pops up you will select the Triggering, Settlement, and Lateral Displacement calculation methods. It can be useful to use the Select All option for each of these, since in the liquefaction graph you can hide any of the analysis options that you don’t want to see.

Click Select All for all three, and click OK to close the dialog.

3.3 Graphing Liquefaction Data

In Settle3 you need to insert a Query Point in order to be able to carry out liquefaction analyses.

Graph icon Select: Query > Graph Query

Keep the default choice of Automatic selected for Number of Vertical Points. Click OK to close the dialog. Click anywhere in the centre of the screen to insert the query point.

Right-click on the query and select Graph Liquefaction. The Plot Liquefaction dialog will appear. Keep the default settings, but notice that you can choose to plot liquefaction for more than one stage.

Click OK to graph the liquefaction results.

Another window will open with the liquefaction analysis results. There will be three tabs: Data, Triggering, and Post Triggering. Each of these tabs has three graphs. The graphs are all fully customizable. On the right side of the tab are the Chart Controls, where all the customization options are located.

In the Chart Options section of Chart Controls notice the Show Soil Layers checkbox. When this is selected, the soil layers are displayed behind the plotted results.

In the Data tab, the SPT N Value, Stress Reduction Coefficient, and Relative Density (%) are graphed.

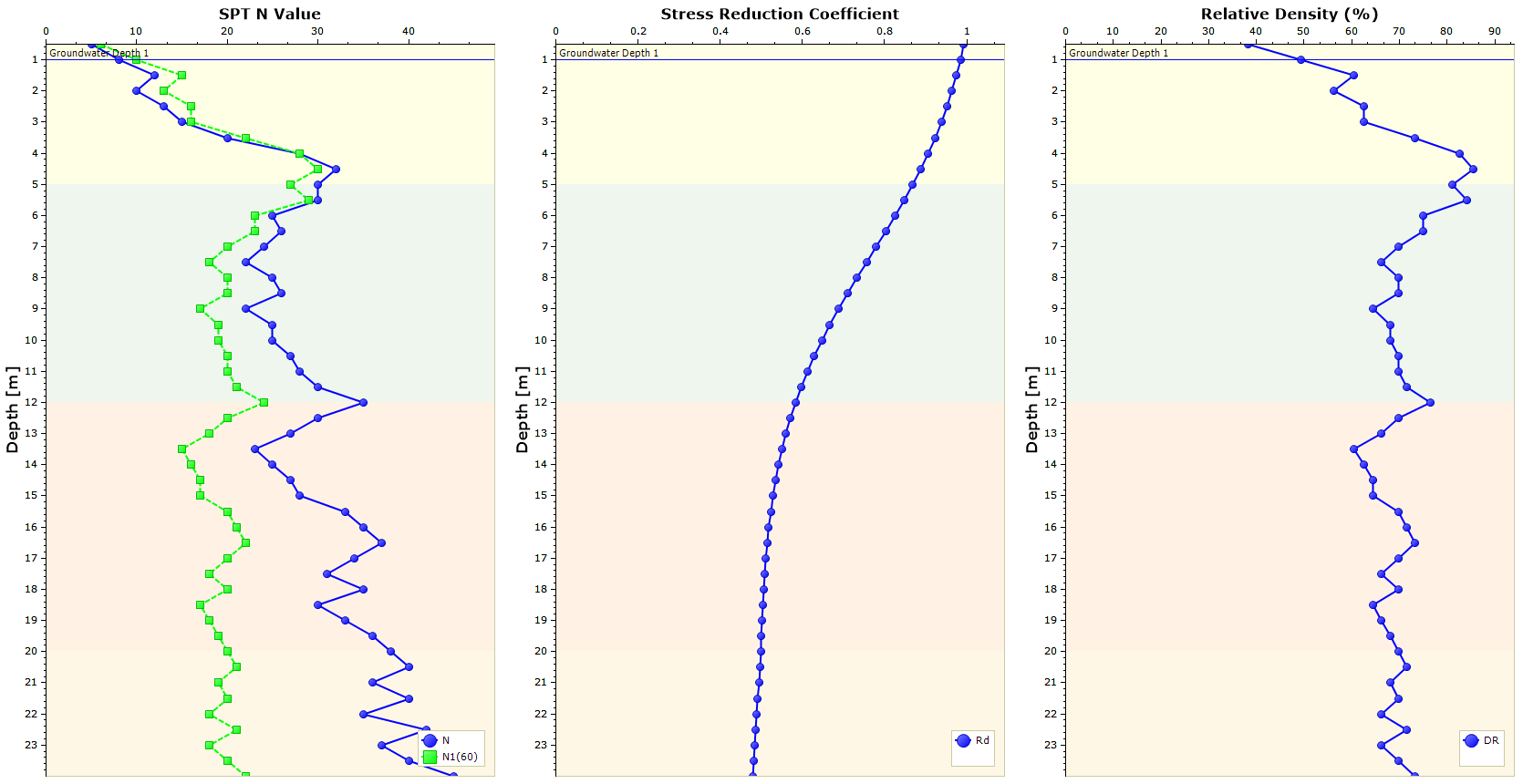

SPT N Value, Stress Reduction Coefficient, and Relative Density Graphs

Click on the Triggering tab to view graphs of CSR and CRR, Factor of Safety, and Probability of Liquefaction.

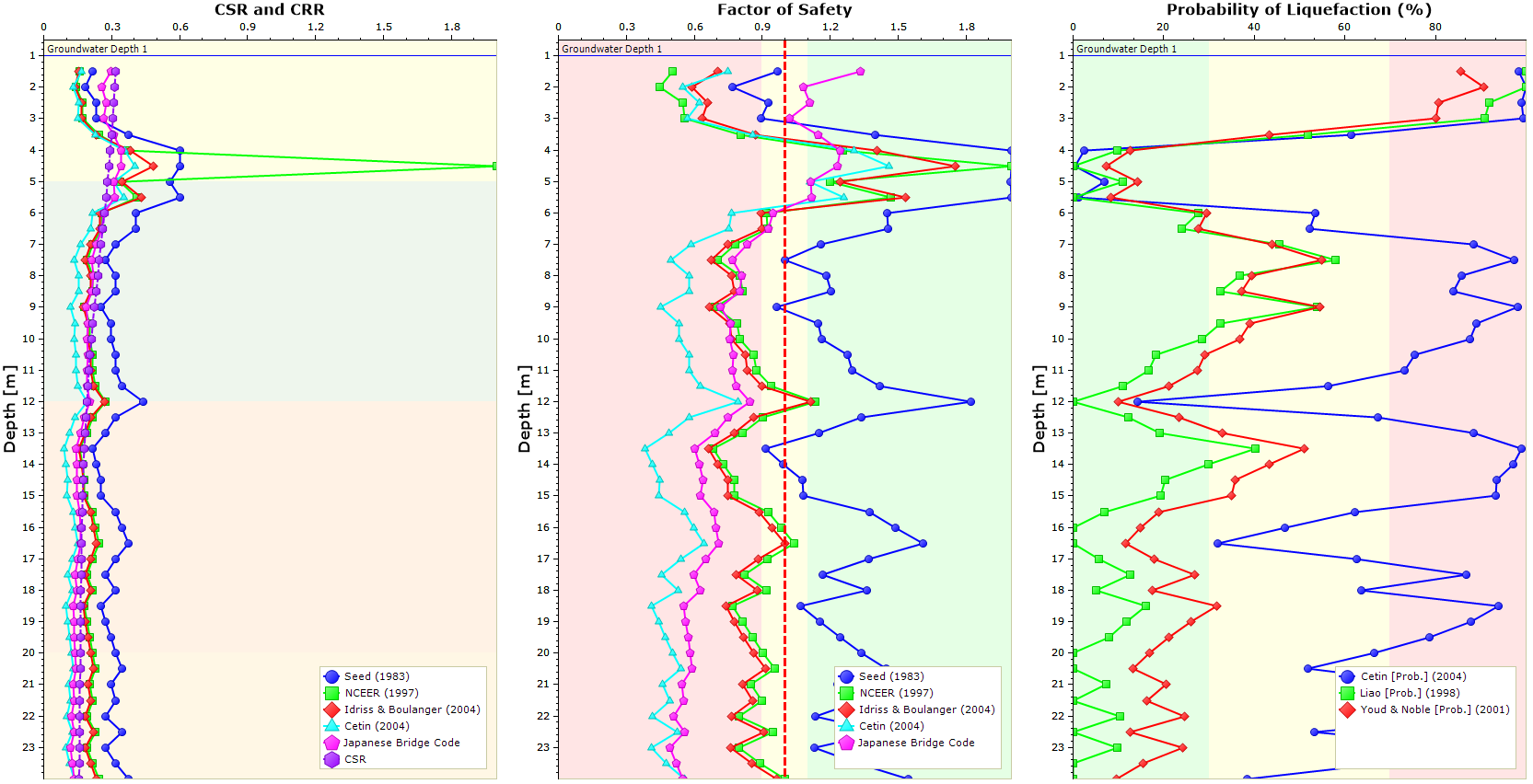

CSR and CRR, Factor of Safety, and Probability of Liquefaction Graphs

When you open the Triggering tab, the Triggering Series options in Chart Controls appear.

First look at the Factor of Safety Value (default value = 1) and the red dotted line that is drawn on the Factor of Safety graph. Change the Factor of Safety to 0.8 and notice that the dotted line moves to that value. Set the Factor of Safety to 1. The next option, Factor of Safety Threshold, is used to draw the Factor of Safety Bands. The Factor of Safety Bands extend from (Factor of Safety Value – Factor of Safety Threshold) to (Factor of Safety Value + Factor of Safety Threshold). Change the Factor of Safety Threshold a few times to see what happens. Note that the Factor of Safety Bands can also be turned off.

Looking at the Probability of Liquefaction (%) graph, you have the option to turn on/off the Probability of Liquefaction Bands. By default, these bands are turned on, and Probability of Liquefaction Upper Limit = 70% while Probability of Liquefaction Lower Limit = 30%. You can change these values, but we will keep the default values in this tutorial.

The remainder of the options in the Triggering Series section of Chart Controls are for the different calculation methods.

Click on the Post Triggering tab to view graphs of Max Shear Strain (%), Lateral Displacement Index (cm), and Settlement (cm).

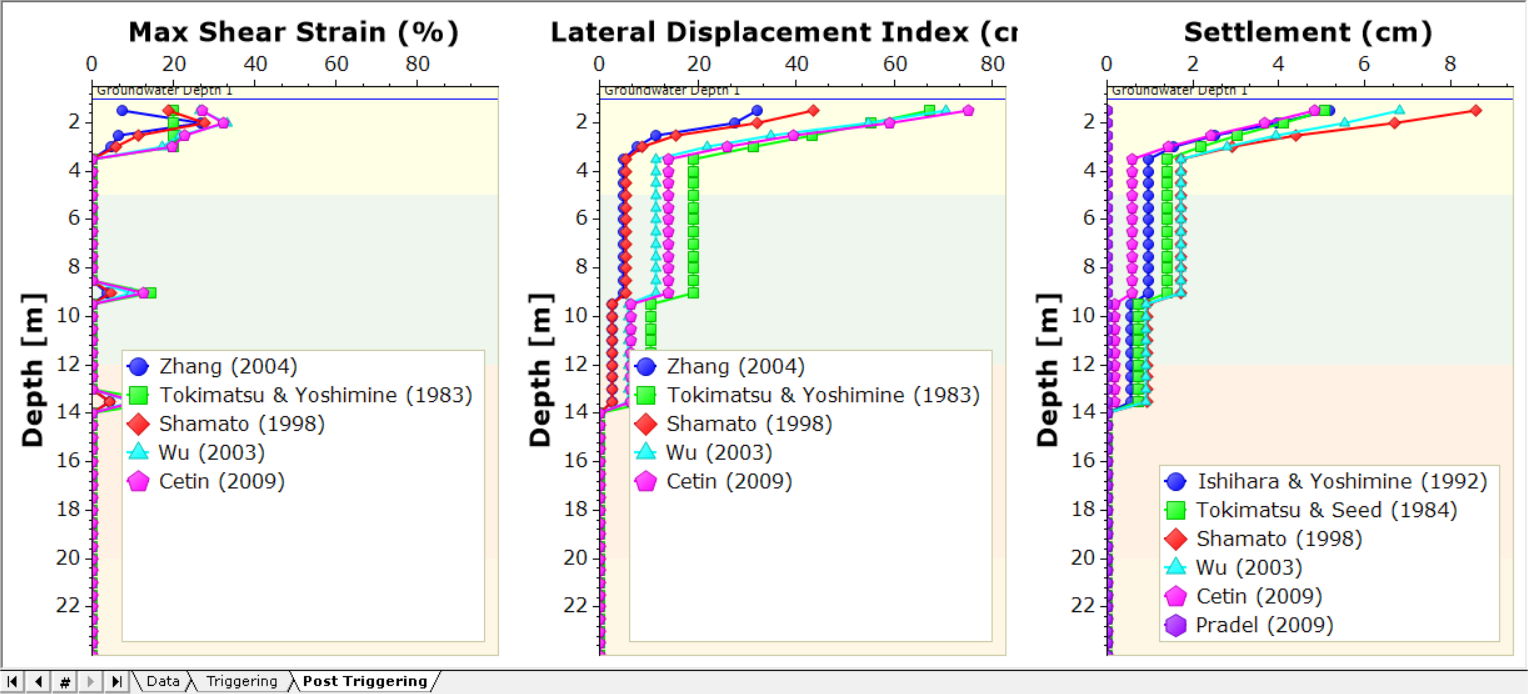

Max Shear Strain, Lateral Displacement Index, and Settlement Graphs

The Post Liquefaction Series display options are now shown in Chart Controls.

The first option is the Method to Calculate Post Liquefaction Parameters. Click on the currently used option Seed (1983) to open the dropdown menu. A total of five methods are available.

The rest of the options are checkboxes which control the plotted calculation methods.

This concludes the Liquefaction Tutorial.

4.0 Additional Exercise


In this tutorial we examined liquefaction without any load. Add a load, and observe the effect it has on the analysis results.

5.0 References


Idriss, I.M., and Boulanger, R.W. 2008 Soil Liquefaction During Earthquakes. EERI.
