Submerged Stiff Clay

The following material properties need to be defined for the p-y curves to be created (Reese, et al., 1975):

  • Strain Factor (E50) - strain corresponding to 1/2 the maximum principal stress difference. Typical values are provided below.
  • Undrained Shear Strength
  • ks - refer to the theory manual for further description (typical values provided in table below)

Diameter of the pile and depth into the soil have a direct impact as well. See the Lateral Pile Theory Manual for more information.

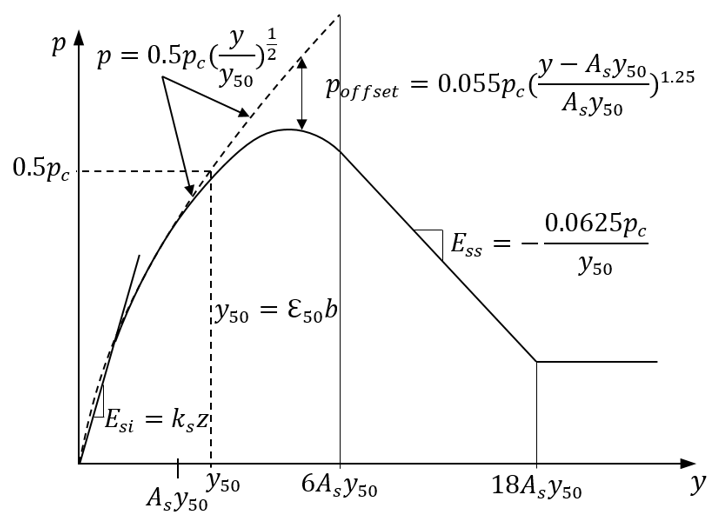

p-y Curve for Stiff Clay with Water

p-y curve for Stiff Clay with Water

REPRESENTATIVE VALUES OF E50 FOR OVERCONSOLIDATED CLAYS

Average undrained shear strength (kPa)

50-100

100-200

200-400

E50

0.007

0.005

0.004

REPRESENTATIVE VALUES OF KS FOR OVERCONSOLIDATED CLAYS

Average undrained shear strength (kPa)

50-100

100-200

200-400

ks (MN/m3)

135

270

540

For more information, see the Lateral Analysis Theory Manual.
