Graph Pile Displacement

The Graph Pile Displacement option (right-click on a pile and select Graph Pile Displacement) allows users to view the Lateral Resistance Curve, calculated based on the information entered in the Lateral Resistance Graph section of the Advanced tab of the Add Single Pile dialog.

Lateral Resistance Graph Section of the Advanced tab of the Add Single Pile dialog

Lateral Resistance Graph section of the Advanced tab of the Add Single Pile dialog

Two graphs are displayed. By default Lateral Resistance and Displacement are displayed. These graphs can be customized, as outlined in the Customization Options section.

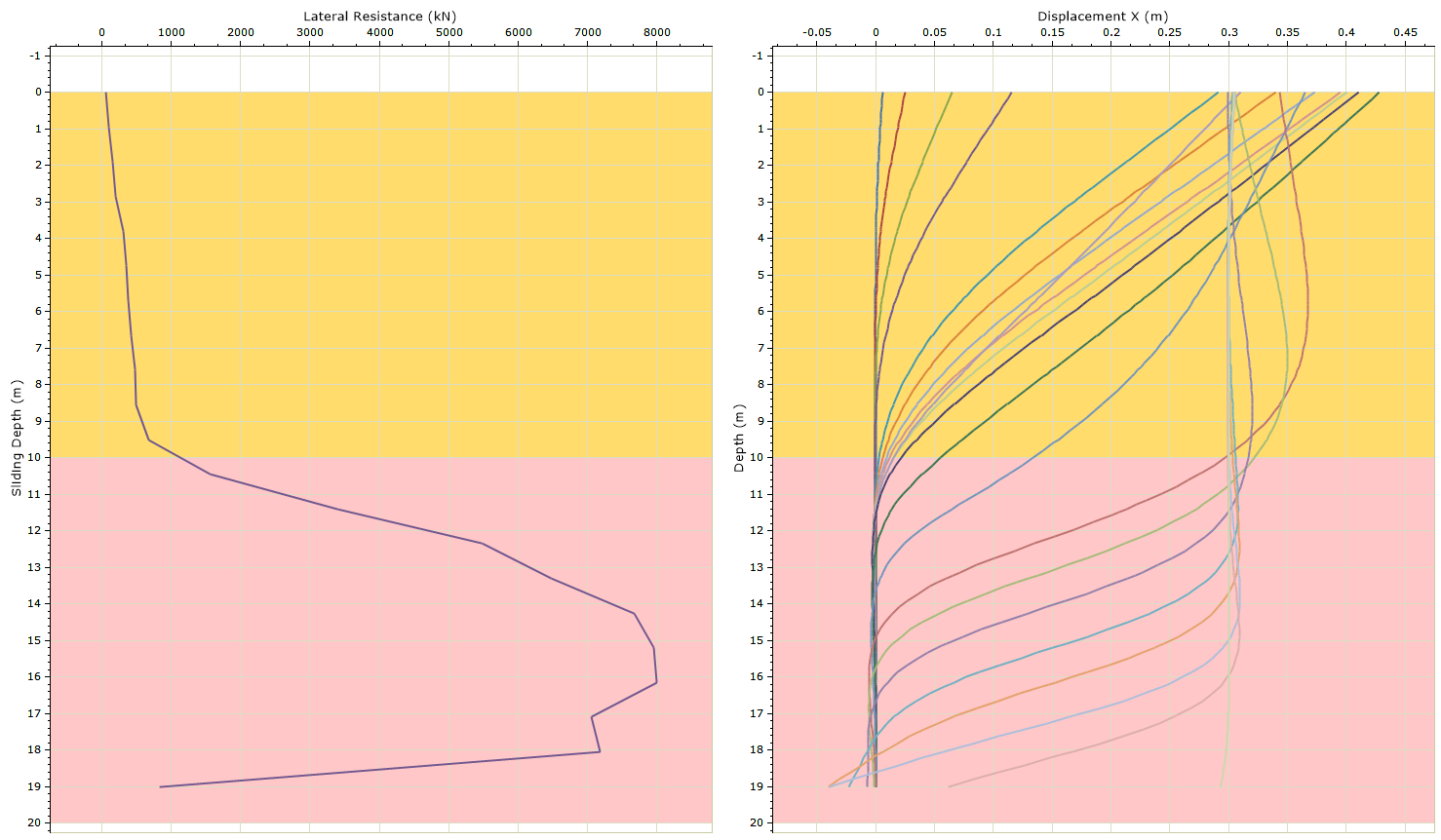

Graph Pile Displacement Default Results

Default results displayed after clicking on Graph Pile Displacement. Depth (m) axis on the right graph indicates the depth from the top of the pile.

CUSTOMIZATION OPTIONS

The following customization options can be found in the right sidebar:

  • Data Selection - Checkboxes exist for each analyses and they can be checked on or off to remove individual sets of results from the right graph. Select All and Deselect All buttons are also available.
  • Dual Graph Types - The graphs displayed are customized here.
    • Left Graph - Max Allowable Resistance and Ultimate Resistance, or Both. Both X and Y results are available.
    • Right Graph - The same graphs that are available in the results dropdown in the Plan/3D View window are available.
  • Chart Controls - This is where marker and line options, legend display options, font options and axis options are customized. These customizations apply to both the right and left graphs as a whole.
  • Series Options - This is where the graph color, marker type and marker size can be customized for each set of results.
  • Vertical Axis Options - The vertical axis can be customized here in terms of scaling.
  • Horizontal Axis Options - The horizontal axis can be customized here in terms of scaling.
