Graph Editor

he Graph Editor allows you to edit all aspects of a selected graph from either the Strength Graphs tab or Stress Paths Graph tab.

The Graph Editor can be accessed by right clicking on any graph and selecting Edit Graph or by click on the Graph Editor icon Graph Editor icon in the toolbar.

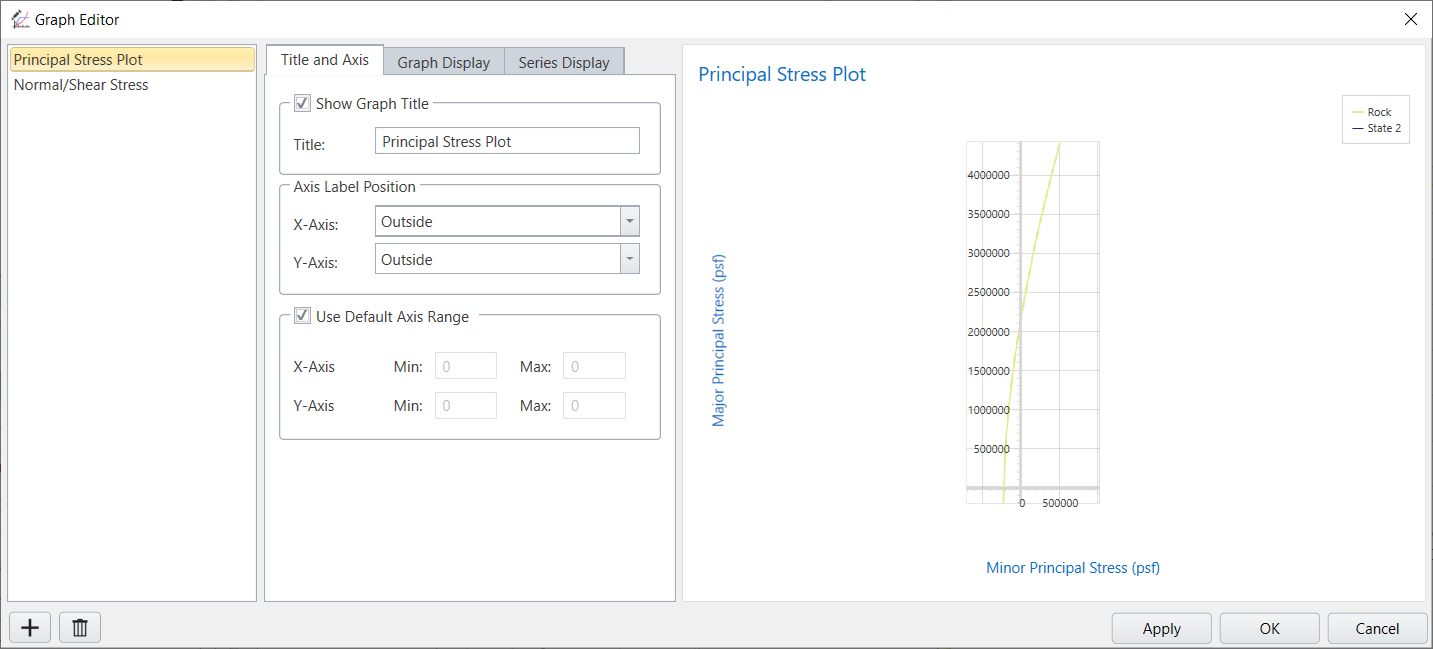

Graph editor

The Graph Editor consists of three tabs:

  • Title and Axis
  • Graph Display
  • Series Display

Title and Axis

The Title and Axis tab allows you to edit the:

  • Graph title
  • Axis Type
  • Axis Label Position
  • Axis Range

Graph Display

The Graph Display includes controls for the:

  • Grid functions
  • Legend

Series Display

The Series Display lets you edit the display of lines and data points for each individual series on the graph.

Users can edit:

  • Line style (including pattern and thickness)
  • Use of Markers (turn on or off, select size).
