Property Viewer

The Property Viewer, similar to Slide2, is accessed by selecting the Property Viewer icon on the toolbar (Property Viewer icon on the tool bar ).

It allows the user to visualize Cohesion, Phi, Pore Pressure, Residual Cohesion, Residual Friction Angle, Young's Modulus, Residual Young's Modulus, and Poisson's Ratio.

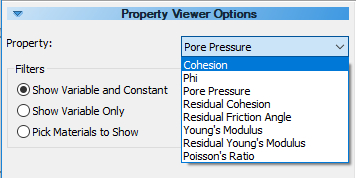

Property Viewer Options dialog box

The options available are explained below:

Property: Select property to view

Filters:

  • Show Variable and Constant: view all contours
  • Show Variable Only: only view contours of spatially variable materials, or linearly increasing ones
  • Pick Materials to Show: select specific materials to view

Toolbar options:

The usual Display Options (Display Options icon )are also found in the toolbar in the Property Viewer mode.

Two additional options can be found in the toolbar. The Open New Property Viewer button (Open New Property Viewer icon ) allows the user to open a new instance of the property viewer for this model. This is particularly useful if you want to see two different properties at the same time (such as cohesion and phi) that are correlated. The views can then be tiled, and the Synchronize Property Viewers button (Synchronized Property Viewers button ) would allow you to cycle through samples of both instances at once, and check or uncheck options in the Property Viewer Options for both instances.
