Flow Arrows

When you add a Flow Line (with the Add Flow Line or Add Multiple Flow Lines options), the direction of flow along a line is indicated by an arrow. By default only one arrow is initially displayed on each Flow Line when the Flow Line is created.

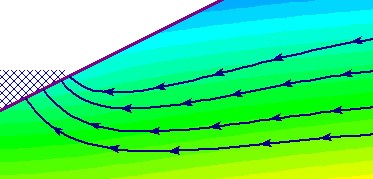

Flow arrows added to Flow Lines

Flow arrows added to Flow Lines

Add Flow Arrows

You can add additional arrows to the Flow Lines with the Add Flow Arrows option:

  1. Select Add Flow Arrows Add Flow Arrows icon from the toolbar or the Groundwater menu.
  2. Click the mouse anywhere on a Flow Line, and an arrow will be added at that location. Repeat as desired.
  3. When you have finished adding arrows, press Escape or right click and select Cancel.

Right Click Shortcut

You can also add flow arrows by right-clicking on a Flow Line and selecting Add Flow Arrow from the popup menu.

Delete Flow Arrows

To delete Flow Arrows:

  1. Select Delete Flow Arrows Delete Flow Arrows icon from the toolbar or the Groundwater menu.
  2. Use the mouse to select the Flow Lines from which you would like to remove arrows.
  3. When you are finished selecting Flow Lines, right-click and select Delete Selected, or press Enter, and all arrows will be removed from the selected flow lines. NOTE: all arrows will be deleted from the selected flow lines, you cannot delete individual arrows on Flow Lines.

Right Click Shortcut

You can also delete flow arrows by right-clicking on a Flow Line and selecting Delete Flow Arrows from the popup menu.
