Automate Deterministic Analysis

This tutorial will familiarize you with the Automate Compute feature of RocTopple by automating a RocTopple Deterministic analysis.

Topics Covered in this Tutorial:

  • Deterministic Analysis RocTopple Model
  • Input Excel File Format
  • Adding Input Excel File(s) to Automate Compute File Queue
  • Output RocTopple Automate Compute Results File
  • RocTopple Automate Compute Error Log

Finished Product:

The finished products of this tutorial can be found in the Tutorial 7 Automate Compute - Deterministic Analysis folder, located in the Examples > Tutorials folder in your RocTopple installation folder. Inside, you will find:

  • Tutorial 07 Automate Compute - Deterministic_base file.rtop RocTopple model file setup for automation
  • Tutorial 07 Automate Compute - Deterministic_inputs.xlsx Excel input file
  • Tutorial 07 Automate Compute - Deterministic_inputs folder containing the computed results files

1.0 Introduction

The Automate Compute option helps users quickly generate results for several RocTopple analysis cases at a time by reading in various model inputs from Excel. In this tutorial, we will automate the computation of three unique Deterministic cases (i.e., three toppling cases).

2.0 Creating a New File

If you have not already done so, run the RocTopple program by double-clicking the RocTopple icon in your installation folder or by selecting Programs > Rocscience > RocTopple > RocTopple in the Windows Start menu.

When the program starts, a default model is automatically created. If you do NOT see a model on your screen:

Select: File > New

Whenever a new file is created, the default input data forms a valid wedge, as shown in the image below.

New File default input data

If the RocTopple application window is not already maximized, maximize it now so that the full screen is available for viewing the model.

Before we are ready to run Automate Compute, we must first set up the model environment in the following dialogs:

  1. Project Settings
  2. Input Data
  3. Seismic Load
  4. Water Pressure Options

NOTE: This RocTopple model file is meant to be used as a base file for automation. It contains the appropriate settings to be used for all automated cases and the engine for computation. It is not meant to be used for model creation and result viewing, as it does not save the model state for every case.

3.0 Project Settings

First, set the model Units, and Analysis Type.

  1. Select Project Settings from the Analysis menu to open the Project Settings dialog.
  2. Set the Units = Metric, stress as kPa.
  3. Set the Analysis Type = Deterministic.

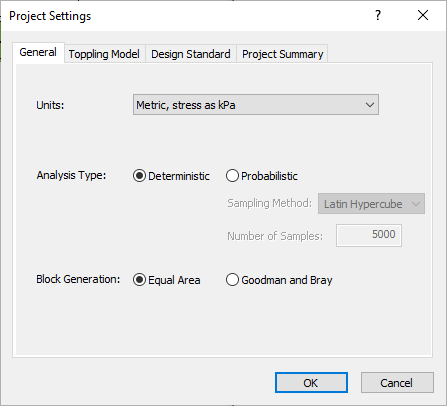

  4. Project Settings dialog

  5. Set the Toppling Model = Block Toppling.

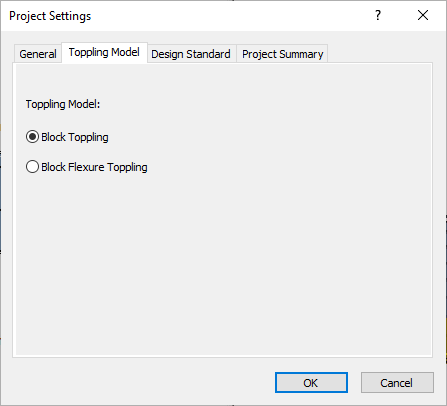

  6. Project Settings Toppling Model

  7. Select OK to close the dialog.

NOTE: The above Project Settings will apply to all cases analyzed in Automate Compute. Each case being analyzed is Deterministic (i.e. a single toppling case, as defined) in this case.

4.0 Input Data

Next, set the optional input data.

  1. Select Input Data from the Analysis menu to open the Deterministic Input Data dialog.
  2. Navigate to the Geometry tab.
  3. We will keep all the check box controls in the default state. Keep in mind that the following are required input parameters that have to be specified later on in the Input Excel File:

    • Slope Angle
    • Slope Height
    • Upper Slope Angle
    • Toppling Joints Spacing
    • Toppling Joints Dip
    • Overall Base Inclination Angle
    • Rock Unit Weight

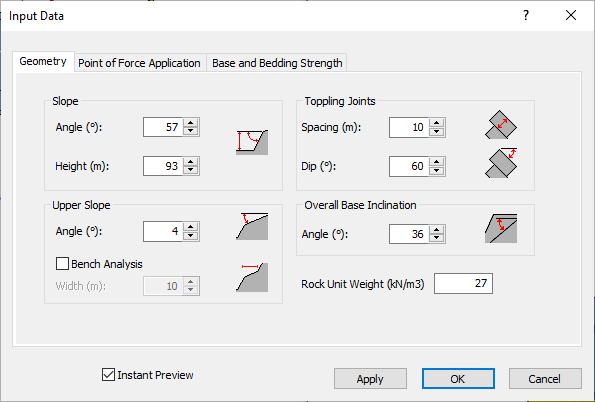

    Input Data

  4. Navigate to the Point of Force Application tab.
  5. Keep in mind that the following are required input parameters that have to be specified later on in the Input Excel File:

    • If Block Above is Sliding
    • If Block Above is Shearing

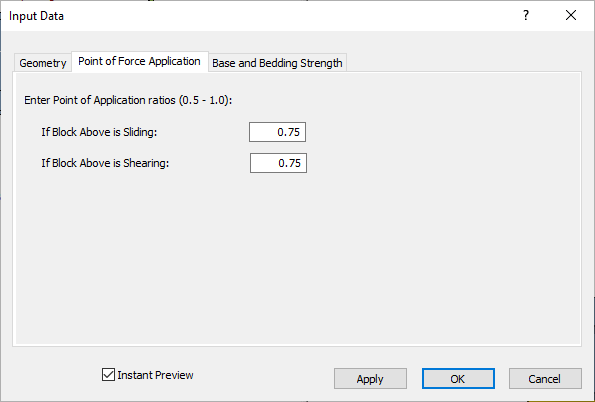

    Point of Force Application

  6. Navigate to the Base and Bedding Strength tab.
  7. Set Base Joints Shear Strength Model = Mohr-Coulomb.
  8. Set Toppling Joints Shear Strength Model = Mohr-Coulomb.
  9. Keep in mind that the following are required input parameters that have to be specified later on in the Input Excel File:

    • Base Joints Friction Angle
    • Base Joints Cohesion
    • Base Joints Tensile Strength
    • Toppling Joints Friction Angle
    • Toppling Joints Cohesion
    • Toppling Joints Tensile Strength

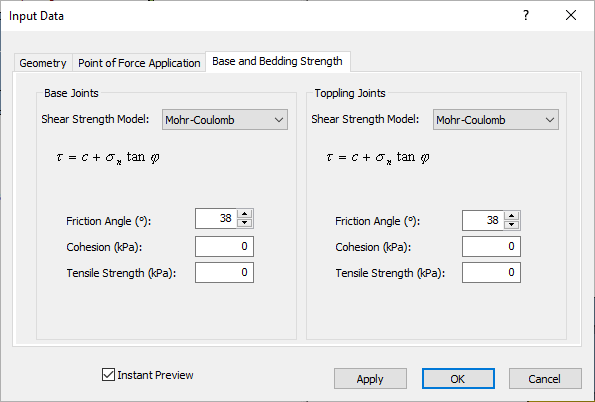

    Input Data

  10. Select OK to close the dialog.

NOTE: You can learn about RocTopple input data in detail in Overview of RocTopple Input Data.

5.0 Input Excel File

Now, let's take a look at the structure of the input Excel file.

  1. Obtain the RocTopple Deterministic Excel Template by selecting Analysis > Automate Compute > Deterministic Excel Template .
  2. A Read-Only Excel workbook titled RocTopple Automation Template_Deterministic.xlsx will be automatically opened (if you have Excel installed on your local machine).

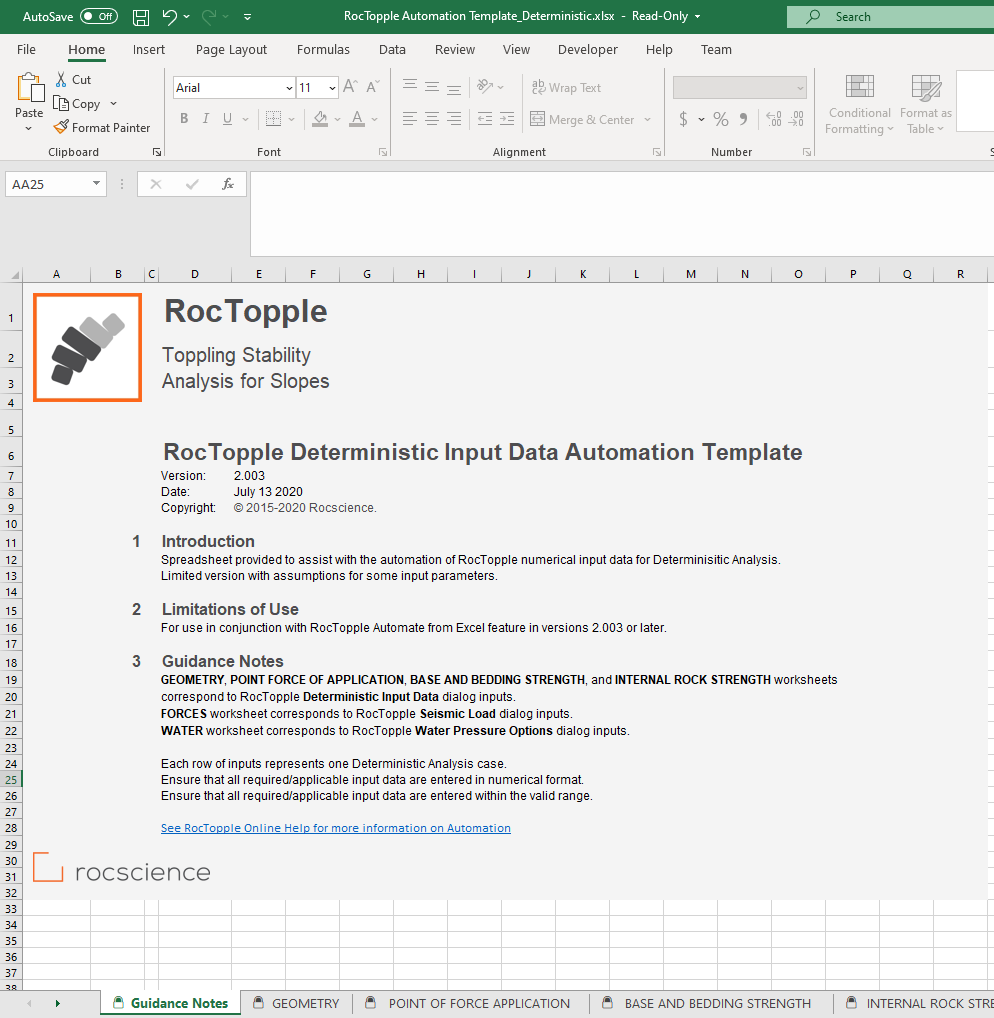

    Input Excel File

    The RocTopple Deterministic Input Data Automation Template Excel workbook and worksheets are protected to prevent any accidental modification to the tab structure and headers. The input Excel template contains 6 worksheets for inputting numerical parameters for automation.

  3. Create a folder called Tutorial 7 Automate Compute - Deterministic.
  4. Navigate to the GEOMETRY worksheet.
  5. Under the Topple ID column, provide the names of the toppling cases. We will name them arbitrarily Topple A, Topple B, and Topple C. Each row in the input Excel file represents one Deterministic Analysis case in RocTopple.
  6. Enter the following:
  7. Topple ID

    Slope

    Upper Slope

    Toppling Joints

    Overall Base Inclination

    Rock Unit Weight

    Angle

    Height

    Angle

    Spacing

    Dip

    Topple A

    53

    84

    27

    10

    50.5

    45

    25

    Topple B

    48

    72

    30

    8

    57.5

    45

    23

    Topple C

    59

    88

    25

    5

    52.5

    48

    26

    NOTE: As set up previously in the RocTopple Deterministic Input Data dialog, only the above input data are required since Bench Width is not applicable (i.e., checkbox control is unchecked). Be aware of units set in RocTopple Project Settings when entering data into the input Excel file. The units should be the same for both!

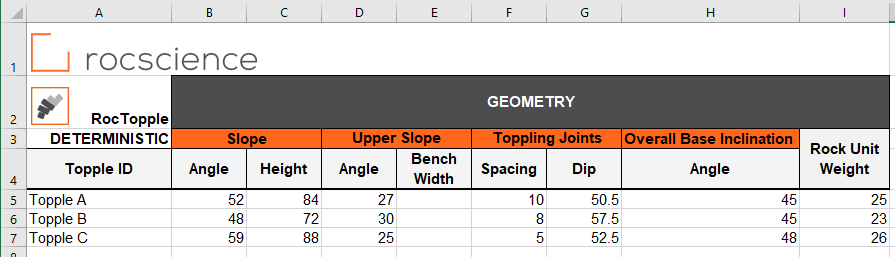

    The GEOMETRY worksheet should look like this:

    Geometry worksheet

  8. Navigate to the POINT OF FORCE APPLICATION worksheet.
  9. Under the Topple ID column, provide the names of the wedges (Topple A, Topple B, and Topple C).
  10. Enter the following:

Topple ID

Point of Force Application Ratios

If Block Above is Sliding

If Block Above is Shearing

Topple A

0.85

0.85

Topple B

0.78

0.79

Topple C

0.75

0.73

NOTE: As set up previously in the RocTopple Project Settings dialog, only the above input data are required since Flexural Bending parameters are not applicable.

The POINT OF FORCE APPLICATION worksheet should look like this:

Point of force application worksheet

  • Navigate to the BASE AND BEDDING STRENGTH worksheet.
  • Under the Topple ID column, provide the names of the wedges (Topple A, Topple B, and Topple C).
  • Enter the following:
  • Topple ID

    Base Joints

    Toppling Joints

    C

    Phi

    Tensile Strength

    C

    Phi

    Tensile Strength

    Topple A

    0.25

    35

    1

    0.24

    34.5

    1

    Topple B

    0.27

    40

    1.5

    0.23

    36

    1.2

    Topple C

    0.23

    32

    1.1

    0.22

    30.5

    1.1

    NOTE: As set up previously in the RocTopple Deterministic Input Data dialog, only the above input data are required since only Mohr-Coulomb parameters are applicable. Be aware of units set in RocTopple Project Settings when entering data into the input Excel file. The units should be the same for both!

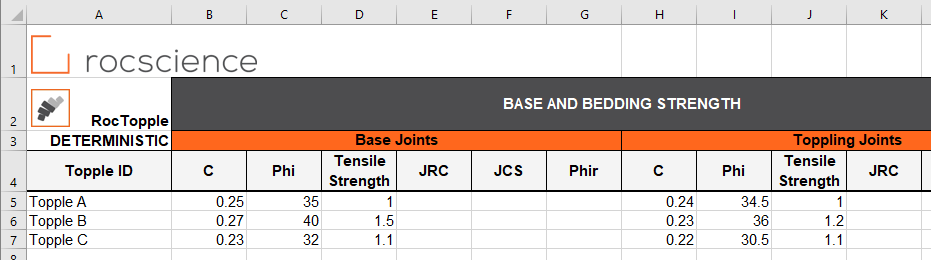

    The BASE AND BEDDING STRENGTH worksheet should look like this:

    Base and bedding strength

    We do not need to enter any data in the INTERNAL ROCK STRENGTH, FORCES, or WATER worksheets since those are not applicable.

  • Save the Excel file as Tutorial 7 Automate Compute - Deterministic_inputs.xlsx to the Tutorial 7 Automate Compute - Deterministic folder previously created.
  • NOTE: Since the RocTopple Automation Template_Deterministic.xlsx file is Read-Only, you must rename and save in a new location.

    We are now ready to automate computations in RocTopple by reading from the input Excel file.

    6.0 Automate from Excel

    Return back to the RocTopple model.

    The Automate Compute dialog allows you to add Excel input automation files to the queue, select a an output format, and compute the results. To open the dialog, select Automate Compute > Automate from Excel from the Analysis menu.

    Select: Analysis > Automate Compute > Automate from Excel

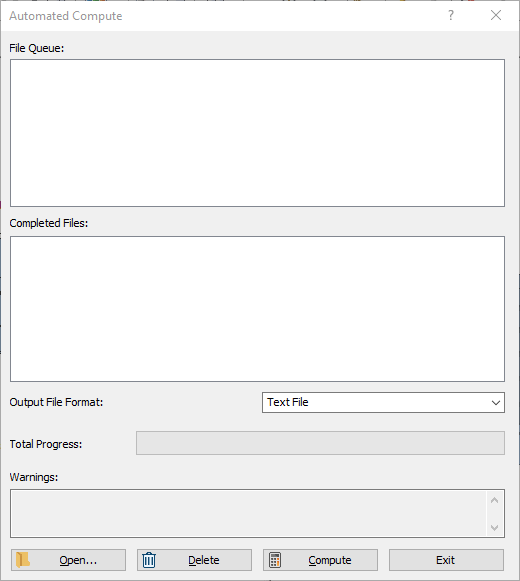

    Automate from Excel

    6.1 ADD FILES TO FILE QUEUE

    To add multiple files to the File Queue:

    1. Select Automate from Excel from the Analysis menu to open the Automated Compute dialog.
    2. Select the Open button to open a standard dialog to choose an Excel input file. Navigate to the Tutorial 7 Automate Compute - Deterministic folder and select the Tutorial 07 Automate Compute - Deterministic_inputs.xlsx file.

    You will see the Excel input file appear under the File Queue list box.

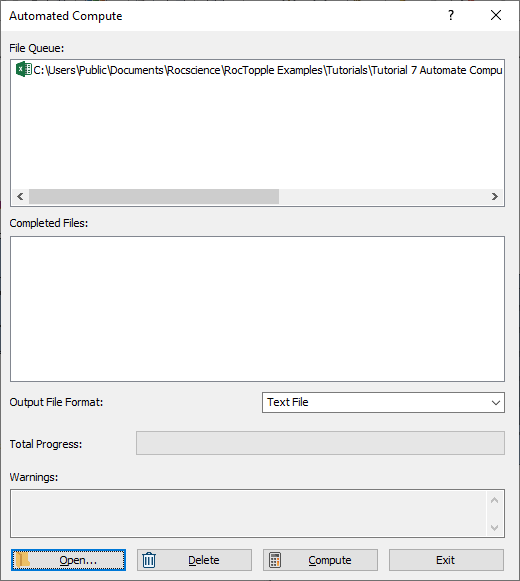

    File Queue list box

    7.0 Output Result Files

    Results files are automatically generated and saved into the same directory as the input Excel file after Automated Compute is complete. Before we run Compute, first ensure that the Output File Format is set to the desired format. Users can select from either Text File or Excel format.

    7.1 TEXT FILE FORMAT

    While still in the Automated Compute dialog:

    1. Set the Output File Format dropdown to Text File.
    2. Select the Compute button to start the automated computing process.
    3. The Total Progress can be seen at the bottom of the dialog. When files have finished computing, they will appear in the Completed Files list box.

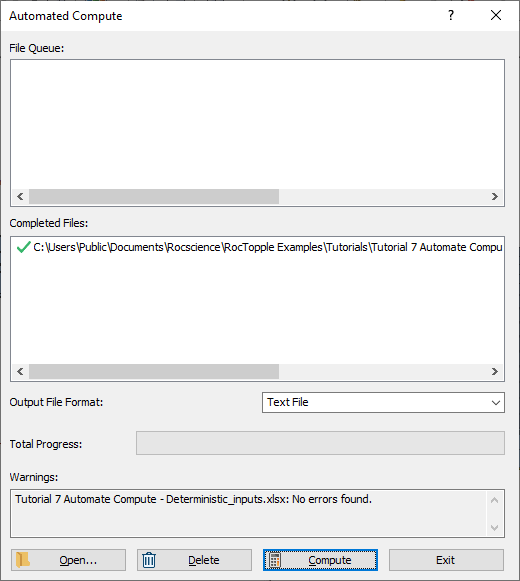

       Automated Compute Text File

    4. When all files have finished computing, select Close to exit the dialog.

    For each input Excel file, a text file (.txt) containing all results data is generated.

    For a Deterministic Analysis (Tutorial 7 Automate Compute - Deterministic_inputs.xlsx), the results data for all cases are outputted following the header row. Each row of data represents one analysis case (i.e., one topple case). Each data type is separated by a comma (,) for easy parsing.

    • Take a look at the Results.txt result file.

    Deterministic Analysis

    7.2 EXCEL FILE FORMAT

    Now, we will do the same as before, but this time we will generate the results as an Excel output file format.

    1. Select Automate from Excel from the File menu to open the Automated Compute dialog.
    2. Select the Add Files button to open a standard dialog to choose an Excel input file. Navigate to the Tutorial 7 Automate Compute - Deterministic folder and select the Tutorial 7 Automate Compute - Deterministic.xlsx file.
    3. You will see the Excel input file appear under the File Queue list box.

    4. Set the Output File Format dropdown to Excel.
    5. Automated Compute Excel File

    6. Select the Compute button to start the automated computing process.
    7. When all files have finished computing, select Close to exit the dialog.

    For each input Excel file, an Excel file (.xlsx) containing all results data is generated.

    For a Deterministic Analysis (Tutorial 7 Automate Compute - Deterministic.xlsx), the results data for all cases are outputted following the header row. Each row of data represents one analysis case (i.e., one topple case). Each data type is separated by column.

    • Take a look at the Results.xlsx result file.

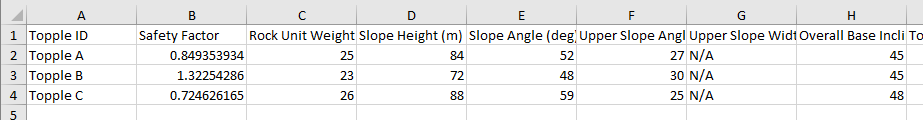

     Deterministic Analysis

    8.0 Error Log

    As you may have noticed, an Error Log is also generated for each input Excel file. For each input Excel file, an Error Log text file (Automate Compute Error Log.txt) is generated, and saved into the same directory as the output file directories. Always check that the Error Log reports "No errors found" before post-processing the raw results data. If any errors do occur as a result of missing (i.e., blank cells) or invalid inputs, the Error Log will indicate which worksheet(s) and cell(s) are problematic.

    This concludes the tutorial. You are now ready for the next tutorial, Tutorial 08 - Automate Probabilistic Analysis from Excel in RocTopple.
