Strength Statistics

For a Probabilistic analysis you can define the following strength parameters as random variables in the Input Data dialog for the base joints and / or the toppling joints:

Mohr-Coulomb

  • Friction Angle
  • Cohesion
  • Tensile Strength

Barton-Bandis

  • JRC
  • JCS
  • Residual Friction Angle

For details of the strength parameters, see Base and Bedding Strength Input in RocTopple.

To define an input parameter as a random variable, select a statistical distribution for the variable (e.g., Normal, Uniform, etc.) and enter the required statistical parameters (e.g., mean, standard deviation, minimum and maximum values).

  • Click the Quick-Stats button next to the variable in the Input Data Base and Bedding Strength tab.
    A popup dialog appears allowing you to select a Distribution and enter the standard deviation, relative minimum, and relative maximum. This option is handy for quickly defining statistics for individual variables.
    For details on defining statistical distributions, standard deviation, and minimum/maximum values, see Overview of Statistical Distributions in RocTopple.

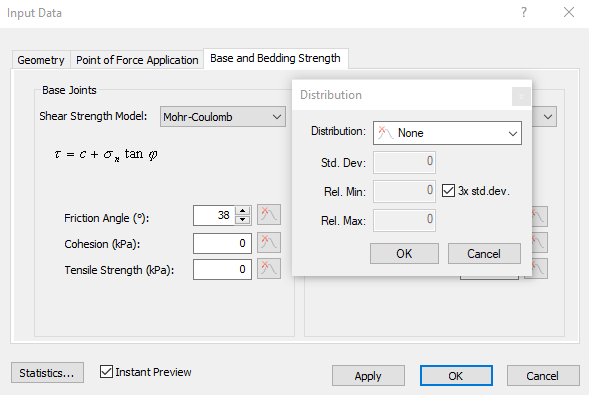

    Input Data Base and Bedding Strength tab
    After you have selected a distribution, the button changes to indicate the type of distribution selected (e.g., for a Normal Distribution, the button will show as ). In addition, mousing over the button displays a popup showing the input.

NOTE: When defining Geometry and Strength variables, you also have the option of using the Statistics button at the bottom of the Input Data dialog to define multiple random variables at a time.
