Editing Line Loads

After you add a line load to your RocTopple model, you can easily edit its properties in the Edit Line Load dialog using the right-click menu or the Edit Line Load option on the Loading menu.

NOTE: You can only select line loads for editing in the 2D View, and not in the 3D View.

Editing a Line Load with the Right-Click Menu

  1. Right-click on a load arrow (in the 2D view) and select Edit Line Load from the popup menu.
    The Edit Line Load dialog appears showing the properties of the selected line load.

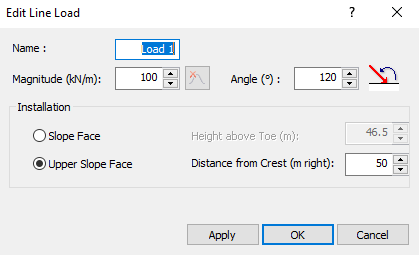

    Edit Line Load dialog
  2. Edit the properties as required and click OK. For details of the line load input parameters, see Adding Line Loads in RocTopple.

Editing a Line Load with the Loading Menu

  1. Select Edit Line Loads on the Loading menu.
    The mouse pointer turns into a square.
  2. Click individual line loads or click and drag the mouse to select multiple line loads.
  3. When you are finished selecting line load(s), press ENTER or right-click and select Done.
    The Edit Line Load dialog appears.
    Edit Line Load dialog
    NOTE: If you selected multiple line loads, the changes you make apply to all the selected line loads.
  4. Edit the properties as required and click OK. For details of the line load input parameters, see Adding Line Loads in RocTopple.
