Sampling Methods

The Sampling Method determines how the statistical input distributions will be sampled and is configured through the Project Settings Probability Settings tab.

To open the tab:

  1. Open the Project Settings icon Project Settings dialog.
  2. Select the Probability Settings tab.

Two Sampling Methods are available in RocFall – Monte-Carlo or Latin-Hypercube sampling.

Monte-Carlo Method

The Monte-Carlo sampling technique uses random numbers to sample from the input data probability distributions. Monte-Carlo techniques are commonly applied to a wide variety of problems involving random behaviour in geotechnical engineering.

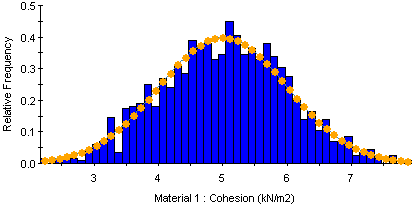

Monte Carlo sampling of Normal distribution (1000 samples)
Monte Carlo sampling of Normal distribution (1000 samples)

Latin-Hypercube Method

The Latin-Hypercube sampling technique gives comparable results to the Monte-Carlo technique but with fewer samples. The method is based upon "stratified" sampling with random selection within each stratum. This results in a smoother sampling of the probability distributions. Typically, an analysis using 1000 samples obtained by the Latin-Hypercube technique will produce comparable results to an analysis of 5000 samples using the Monte-Carlo method.

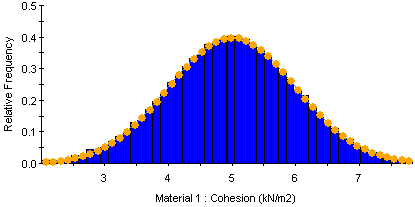

Latin Hypercube sampling of Normal distribution (1000 samples)
Latin Hypercube sampling of Normal distribution (1000 samples)
