Set Joint Surface

You can define any plane or geometry as joint surface by selecting the layer from visibility tree and selecting Joints > Set Joint Surface.

Once you click on this option, you will see the following dialog pop up.

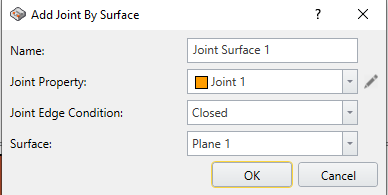

Add Joint by Surface Dialog

Select the Joint property you want to assign to the layer. Refer to Joint Properties for defining Joint properties. Joint planes (surfaces) will be meshable and need to intersect with excavations. They will have an advanced option of specifying boundary condition on the edges: open or closed. Either choose open or closed for joint edge condition (we strongly recommend you to use closed condition for joint edge condition unless the joint surface is in ground surface).

After assigning the joint surface, you will see the layer has changed with the associated joint color with the name.

Results

After the computation, joint planes visualize their results in the same manner as volumes.
