Isosurface

You can create isosurfaces to visualize results in a stress grid box.

Select: Interpret > Isosurfaces

The isosurface is a surface representing points of constant value with the box. The users specifies the value and the data type it is associated with. Isosurfaces are locked to a particular data type and don't change when the global data type combo changes.

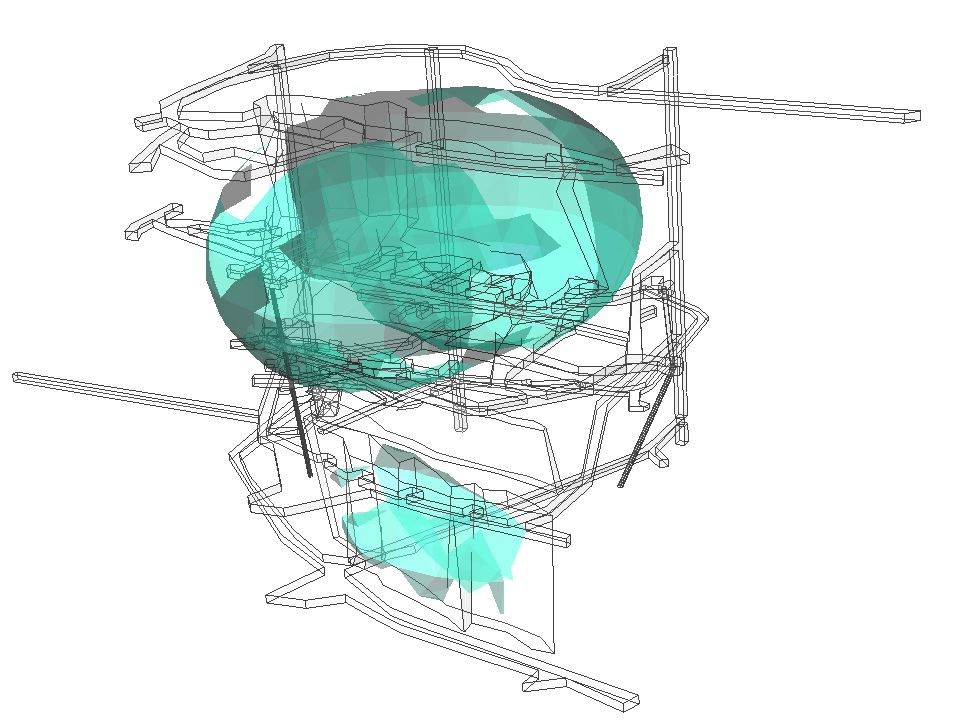

Below shows an example of excavation tunnel with isosurface.

example of excavation tunnel with isosurface
