Density Histogram

After computing your results, EX3 has a Density Histogram feature that allows you to adjust the point range of your contours and highlight areas of interest on your model. The tool makes it easier for users to see the details of specific contours they wish to view.

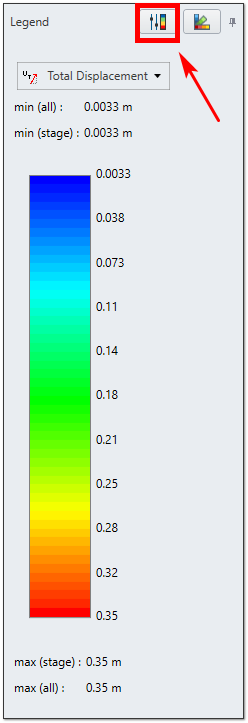

The Density Histogram Density Histogram button is located in the Contour Legend on the right side of the screen.

Density Histogram - Contour Legend

HOW TO CHANGE THE POINT RANGE

  1. Toggle the Density Histogram Density Histogram button on and off adjust the point range.

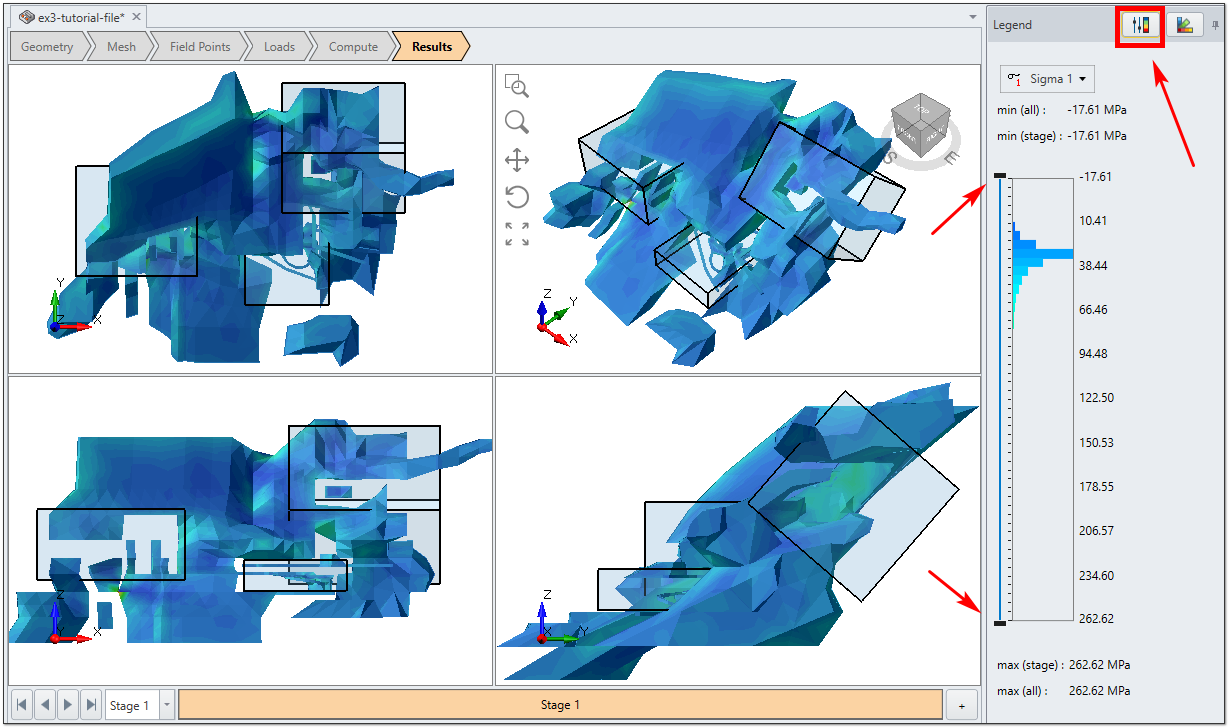

  2. Figure 1

    Figure 1 - Sigma 1 results with original contour point range

  3. As shown in Figure 2, you can use your mouse to drag the sliders and set your desired point range. The contours on the model will automatically adjust.
  4. When you have set the sliders to the desired point range, click on the Check Check mark button .

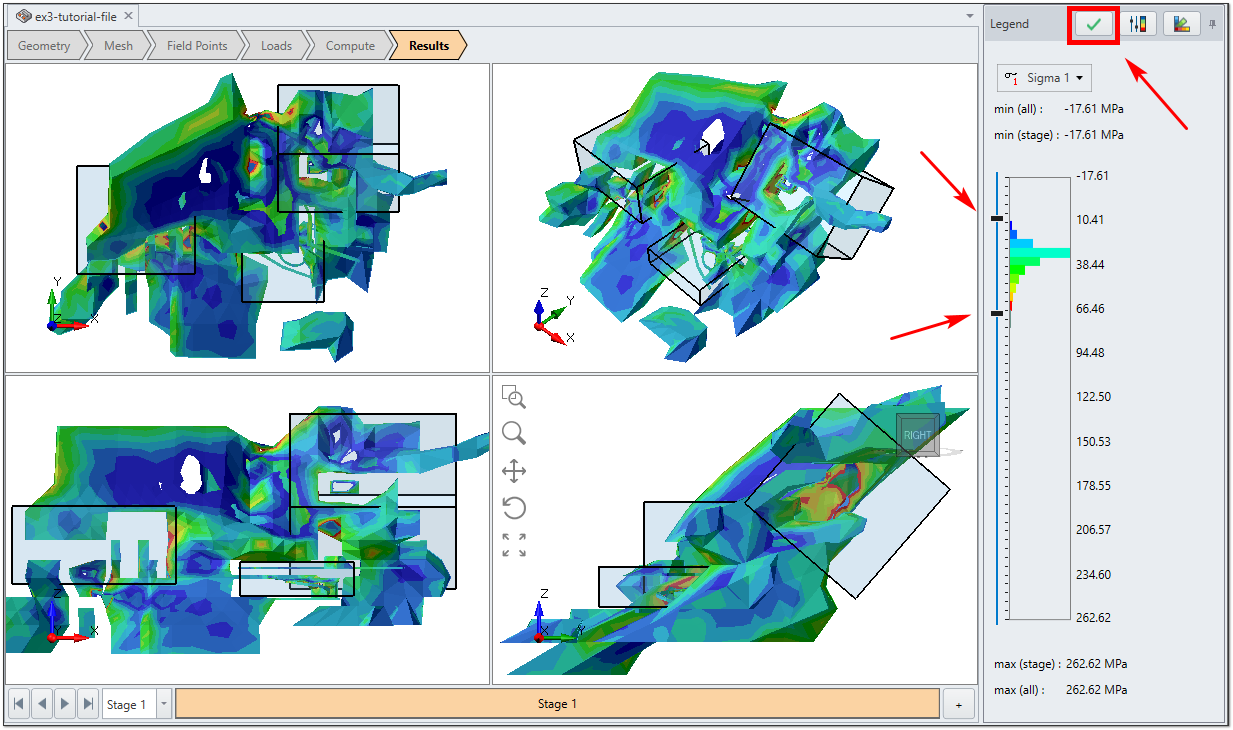

Figure2

Figure 2 - Sigma 1 results with adjusted point range for contours

RESET THE CONTOUR POINT RANGE

If you wish to reset the point range, simply click on the Reset Reset button (as shown below) to reset the range to the previous settings. or open the Contour options Contour Options dialog to revert back to the original automatic settings (view Contour Options to learn more).

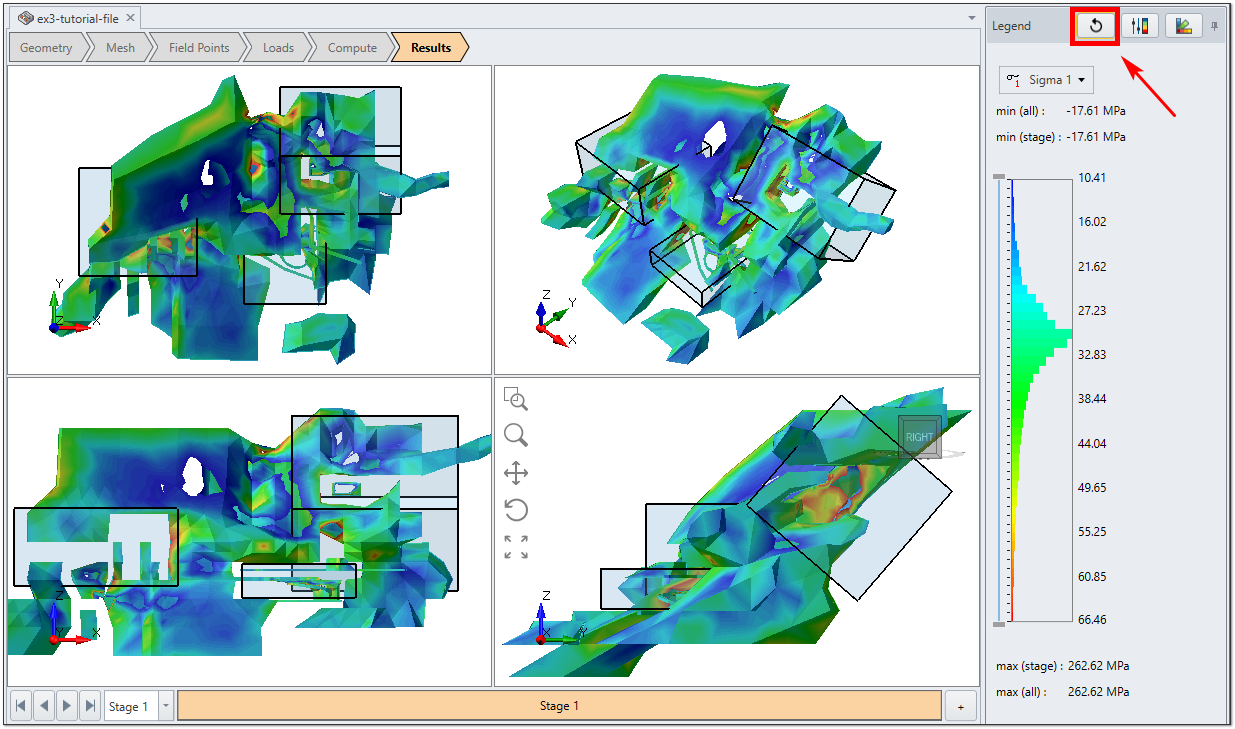

Figure 3

Figure 3 - Sigma 1 results with adjusted point range for contours
