Overlay Tables

Property tables can be toggled on and off using the Overlay Tables options.

To add a property table to a viewport:

Select Annotate > Overlay Tables

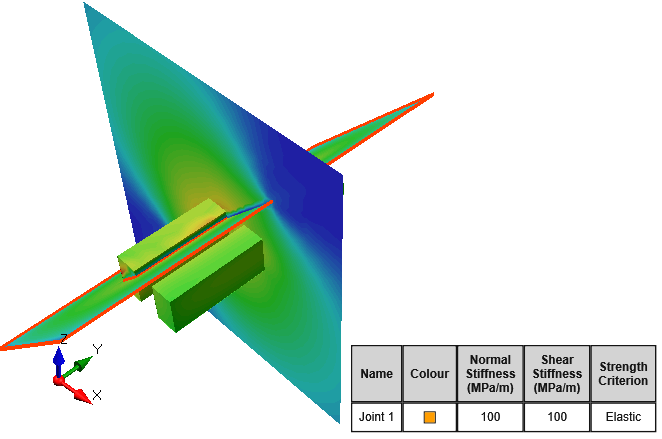

Joint table

Users can select:

  • Material Properties Tables
  • Joint Properties Tables

Table Options

Users can adjust the content displayed as well as the look and feel of the table.

Select: Annotate > Overlay Tables > Material/Joint Table Options

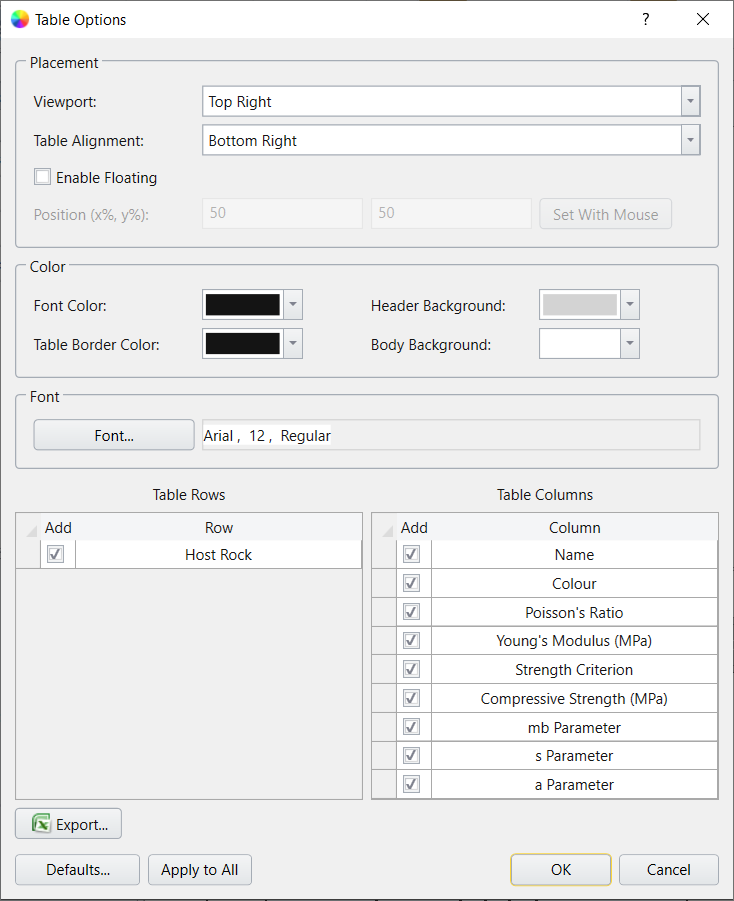

Table options

Users can use this dialog to select the:

  • Viewport the table is placed in
  • Font colour
  • Table colours
  • Font size
  • Details included in the table rows and columns

EXPORT TABLE

The data in the Material Properties or Joint Properties table can be exported to an excel file by selecting the Export option in the Table Options dialog.
