Histogram Plot

To plot Histograms of results after a Probabilistic Analysis:

  1. Select Statistics > Plot Histogram or the "Plot Histogram" Histogram Plot Icon toolbar button.
  2. Select the Failure Mode (e.g. Shear, Elastic Buckling, Arch Snap Thru, or Compression, whichever is applicable).
  3. Select the Data to Plot (e.g. Factor of Safety, or one of your input data random variables).
  4. Enter a Number of Bins. The default is 30, but any value between 2 and 100 can be entered.
  5. Highlight Data
    • If you want to highlight data with safety factor less than a particular number, select the Highlight Data check box and enter a value of safety factor (default = 1).
  6. Click Plot.

Histogram Plot dialog

Histogram Plot Dialog

The Histogram will be generated, and the mean, standard deviation, minimum and maximum values for the data plotted, will be listed at the bottom of the Histogram.

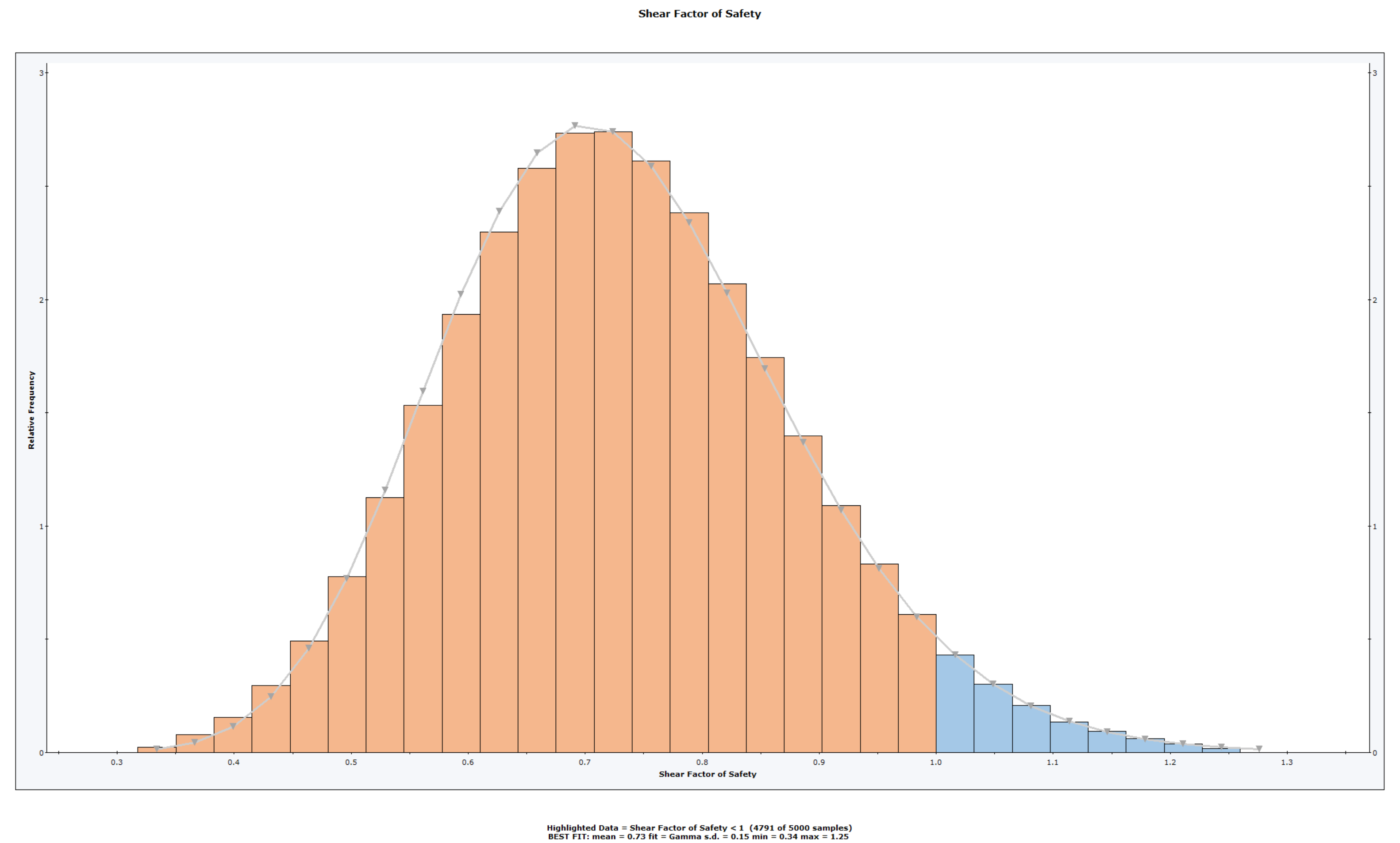

Factor of Safety Histogram and best fit distribution

Histogram Plot of Factor of Safety

Several options are available in the right-click menu for Histograms, including:

Show Failed Pillars

Relative Frequency

Input Distribution

Best Fit Distribution

Chart Properties

Change Plot Data

Copy Data to Clipboard

Copy to Clipboard

Chart in Excel
