Hyperbolic

A Hyperbolic shear strength envelope is defined by the following equation:

Hyperbolic Shear Strength Envelope Equation

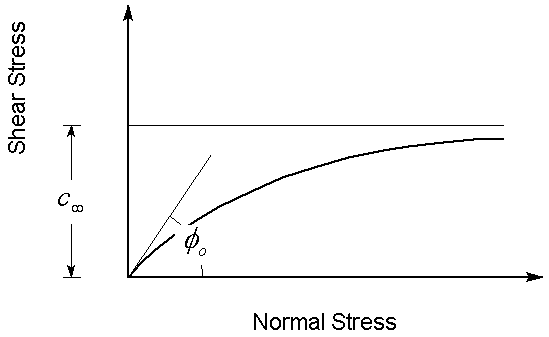

It is important to note the definition of the parameters Equation Parameter and Equation Parameter in the Hyperbolic shear strength equation. The following figure illustrates a hyperbolic shear strength envelope.
Hyperbolic shear strength envelope diagram
Hyperbolic shear strength envelope diagram
Cohesion Cohesion Symbol is defined as the shear strength at Shear Strength Cohesion Definition.
Friction angle is defined as the friction angle at Friction Angle Definition.
The definitions of Cohesion and Friction Angle for the Hyperbolic shear strength model. The Cohesion for a Hyperbolic shear strength envelope is actually the limiting, maximum shear strength, for high normal stress.

The Hyperbolic shear strength model has been found to characterize the shear strength of soil/geo-synthetic interfaces, and other types of interfaces [Esterhuizen, Filz & Duncan (2001)]. For example, it could be used to model the shear strength of:

  • a concrete/soil interface
  • a geotextile/soil interface

You may wish to use Hyperbolic strength to model the failure mode of "direct sliding" along a GeoTextile/Soil interface. In this case, you will have to define a narrow layer of soil along the geotextile, and assign a material type which uses the Hyperbolic shear strength model.
