Editing Seeders

Once you've added a point seeder or a line seeder, you can edit its properties in the Seeder Properties dialog or change its location. For help on deleting a seeder, see Deleting Seeders in RocFall.

Editing a Seeder's Properties

To edit a seeder's properties:

  1. Right-click the seeder's blue cross on the model and select Seeder Properties in the popup menu.
    The Seeder Properties dialog appears.

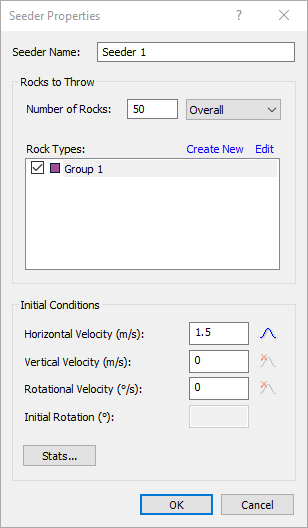

    Seeder Properties dialog

    Or from the Seeder Library dialog: Seeder > Seeder Library. The Seeder Library dialog appears.

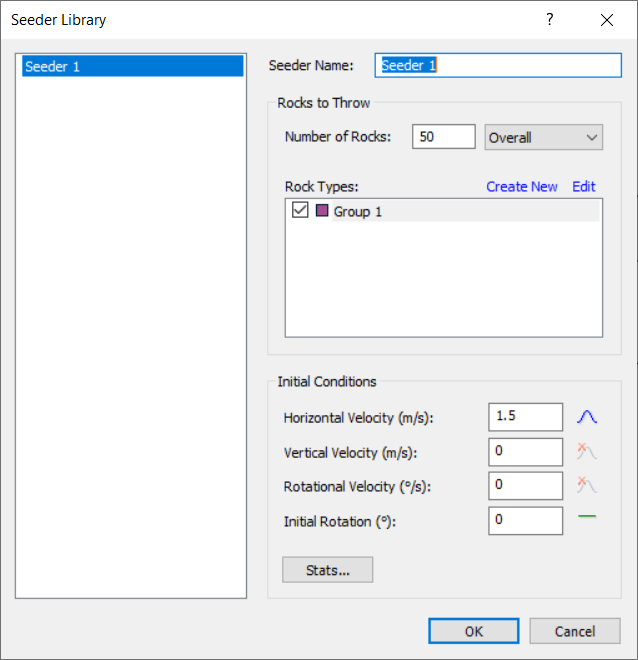

    Seeder Library dialog
  2. Edit the Properties as needed.
  3. Click OK.

Changing the Location of a Seeder

There are two ways you can change the location of a seeder:

GRAPHICALLY

  1. Right-click the seeder's blue cross on the model and select Move Seeder in the popup menu.
    The mouse cursor changes to a crosshair.
  2. Move the mouse cursor over the current location until it turns into a circle.
  3. Click and drag the red-dotted cross to the new location, then click and release the mouse.

ENTERING COORDINATES

  1. Right-click the seeder's blue cross on the model and select Enter Coordinates Enter Coordinates icon in the popup menu.
    The Enter Coordinates dialog appears.
    Enter Coordinates dialog
  2. Edit the X and Y coordinates to reflect the desired new location of the seeder.
  3. Click OK.
